PE07.16-P-2101MAF Wiring Diagram for Common Rail Diesel Injection (CDI) Control Unit

Wiring Diagram for Common Rail Diesel Injection (CDI) Control Unit PE07.16-P-2101MAF
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
- Control unit N3/9
- sheet 2
- refinement package
- as of model year 2009

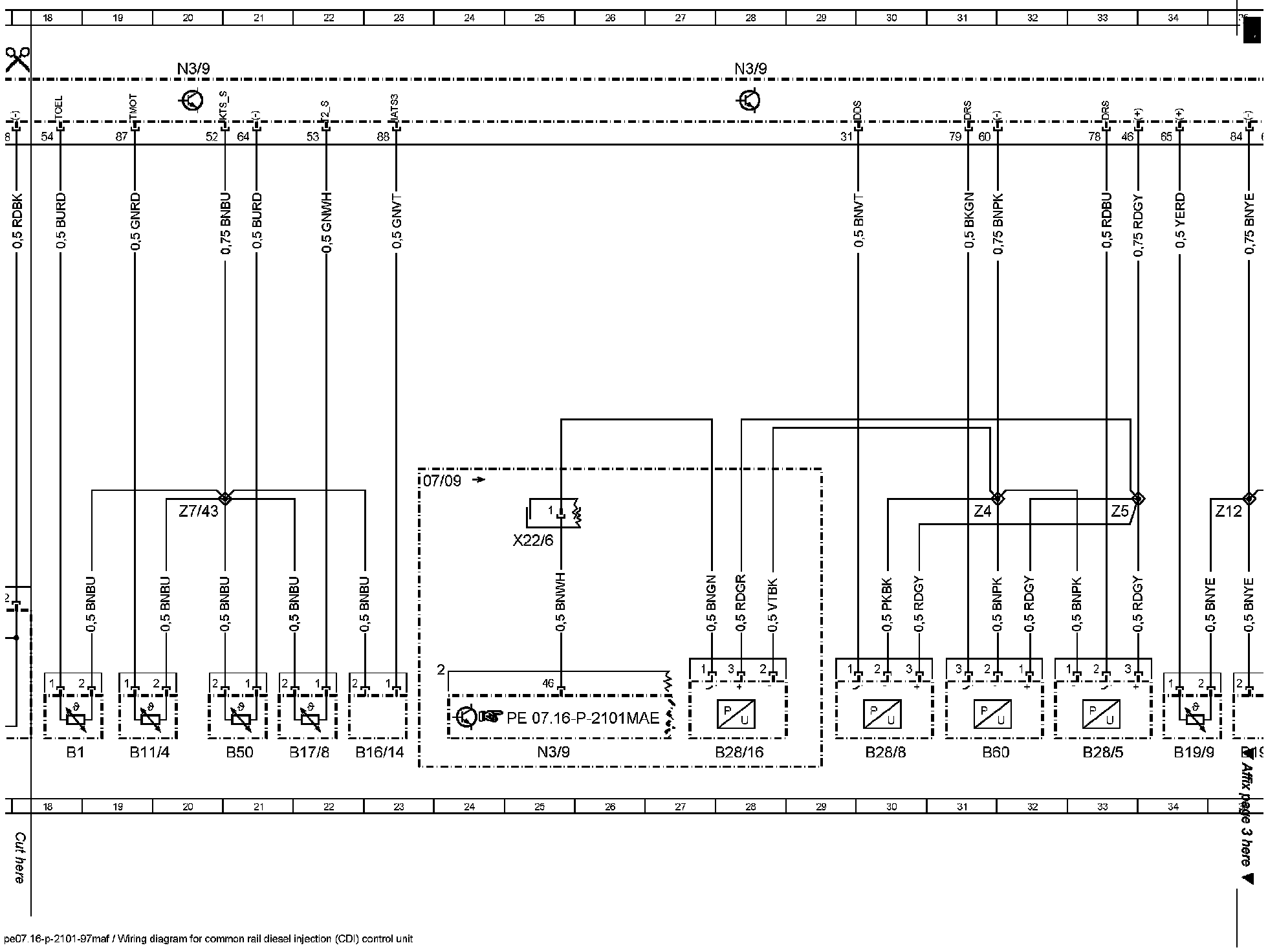

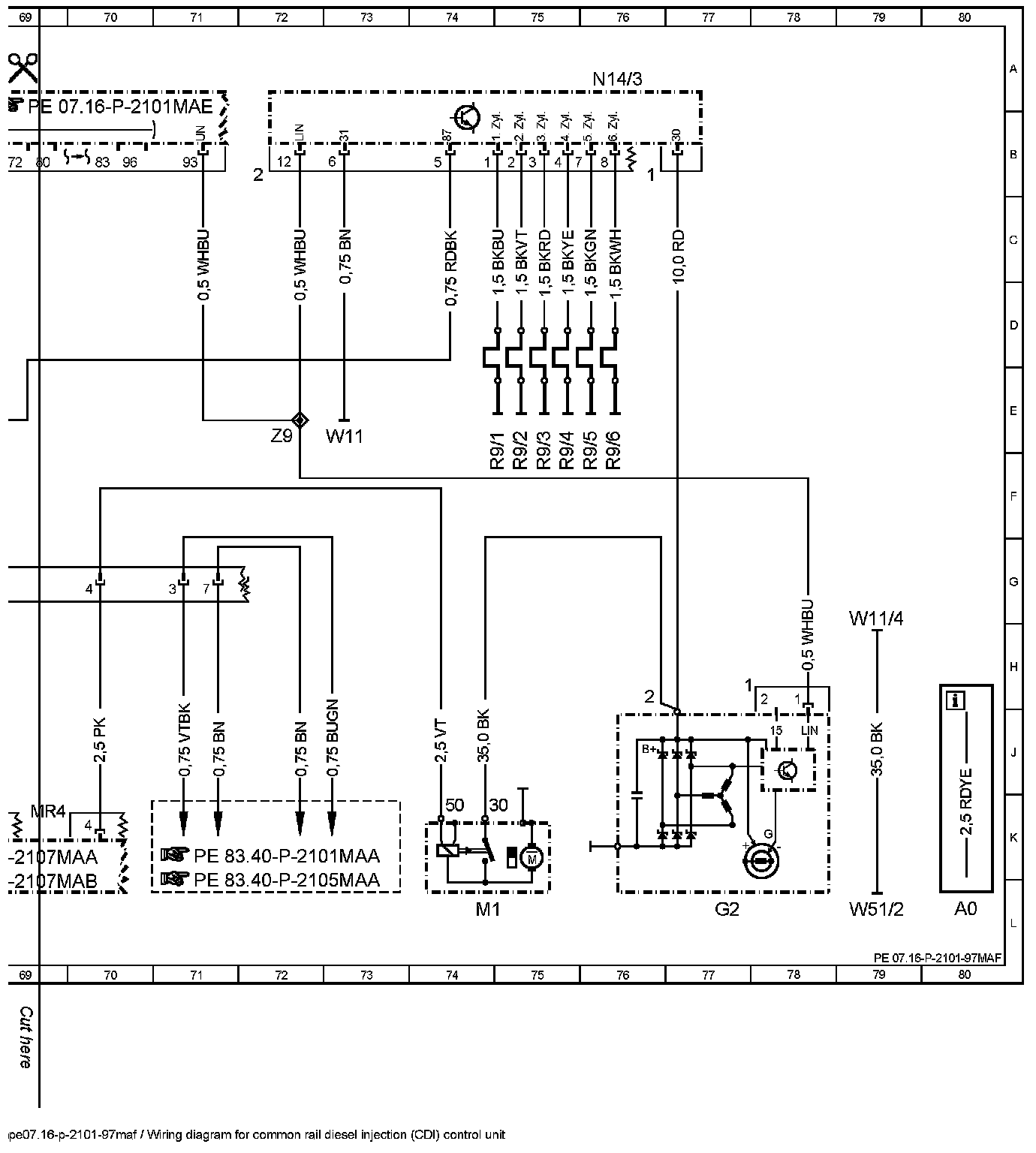

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

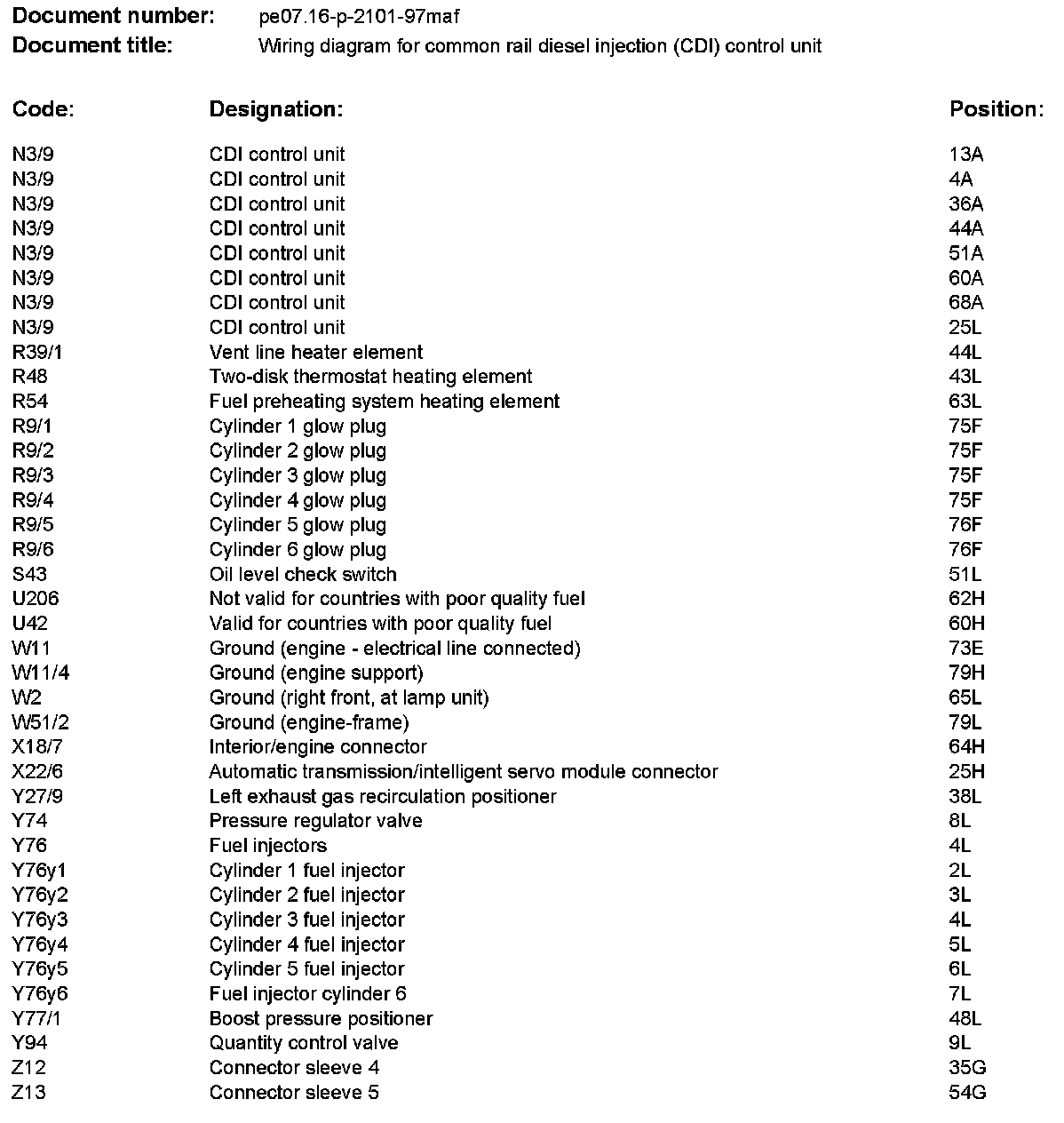

Component Description/Coordinates, A0 To N3/9:

Component Description/Coordinates, N3/9 To Z13:

Component Description/Coordinates, Z14 To Z9:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
