AR15.60-P-2711GZB Remove, Install Coolant Temperature Sensor
AR15.60-P-2711GZB Remove, Install Coolant Temperature Sensor
AR15.60-P-2711GZB Remove, install coolant temperature sensor

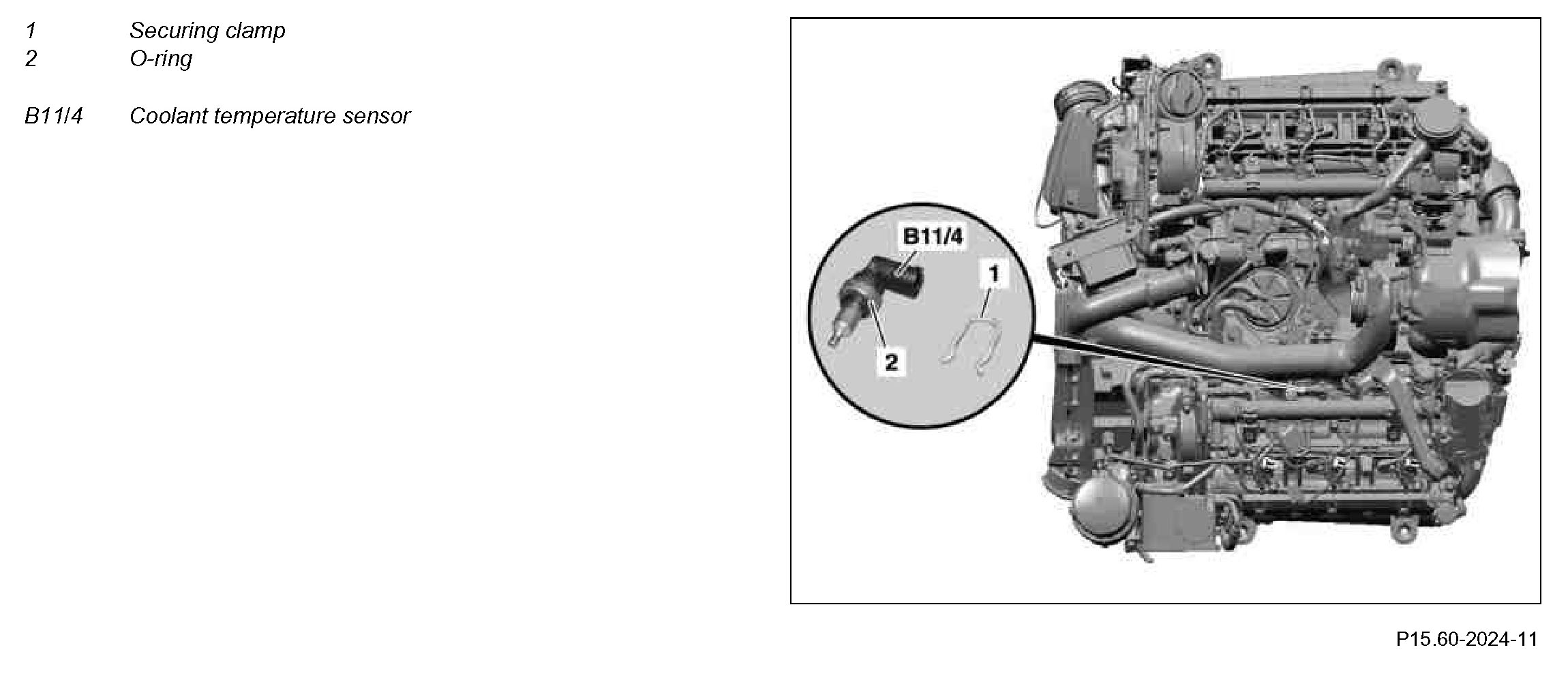

Component Identification:

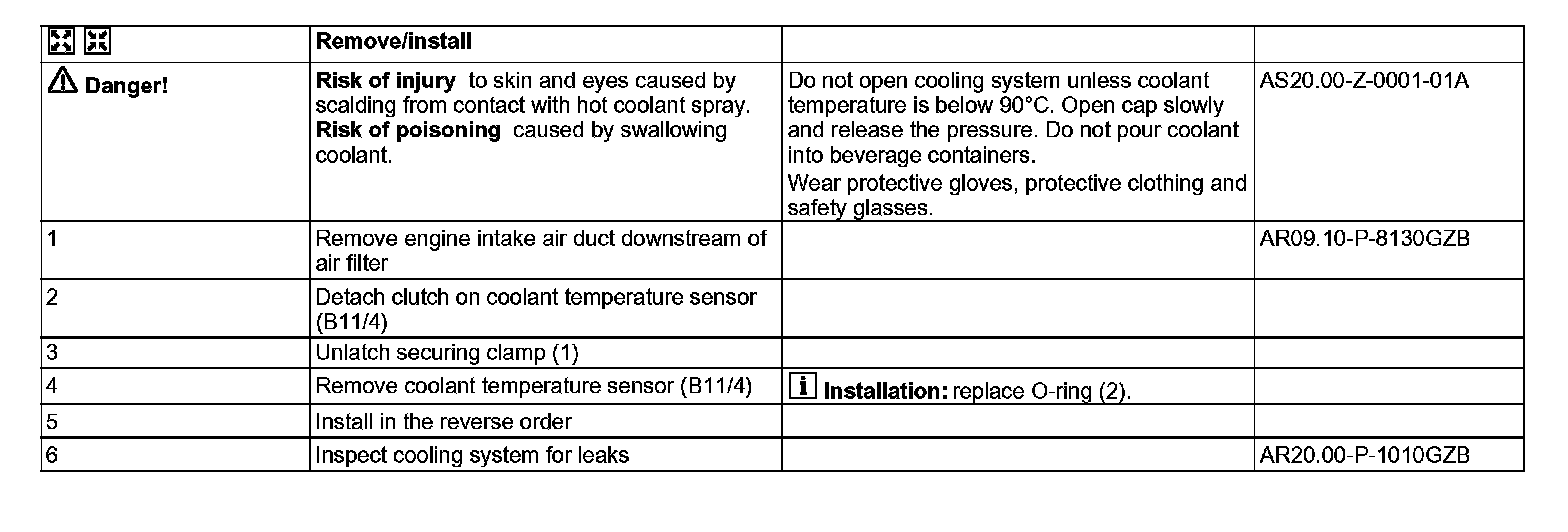

Steps 1-6:
