AP82.10-P-8260GZ Check and Correct Headlamp Adjustment
AP82.10-P-8260GZ Check and Correct Headlamp Adjustment
AP82.10-P-8260GZ Check And Correct
Headlamp
Adjustment

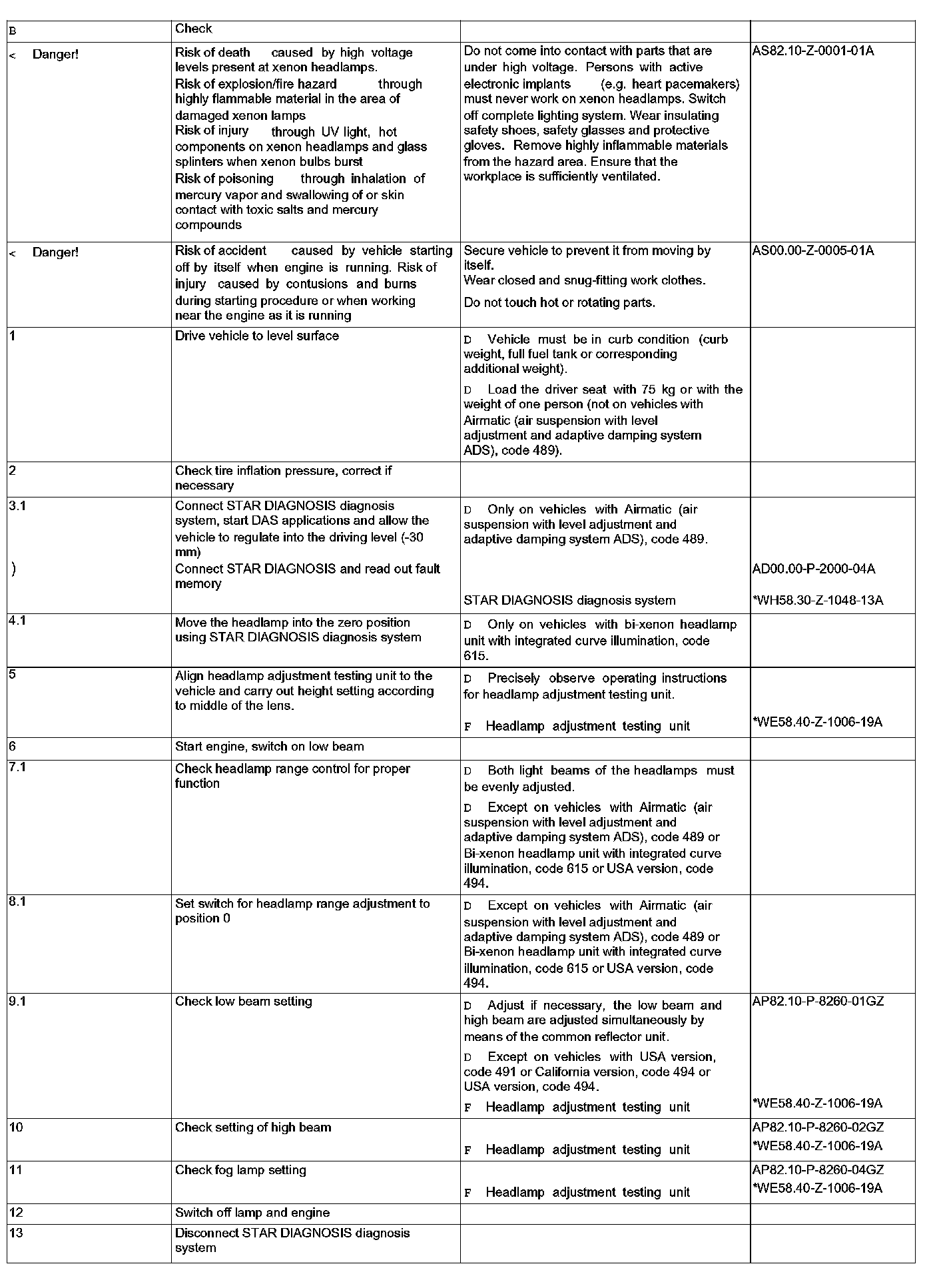

Steps 1 - 13:
Commercially Available Tools:

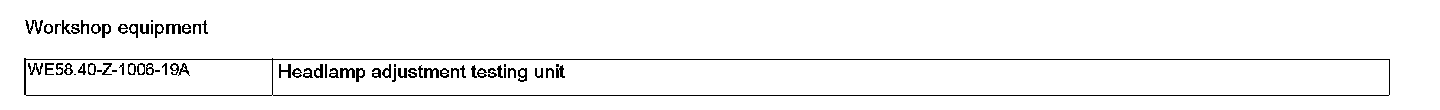

Workshop Equipment:
