Mercedes Benz Truck
>>
2009
>>
ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Service and Repair
Fog/Driving Lamp: Service and Repair
AR82.10-P-5103GZ Remove/Install Fog Lamp

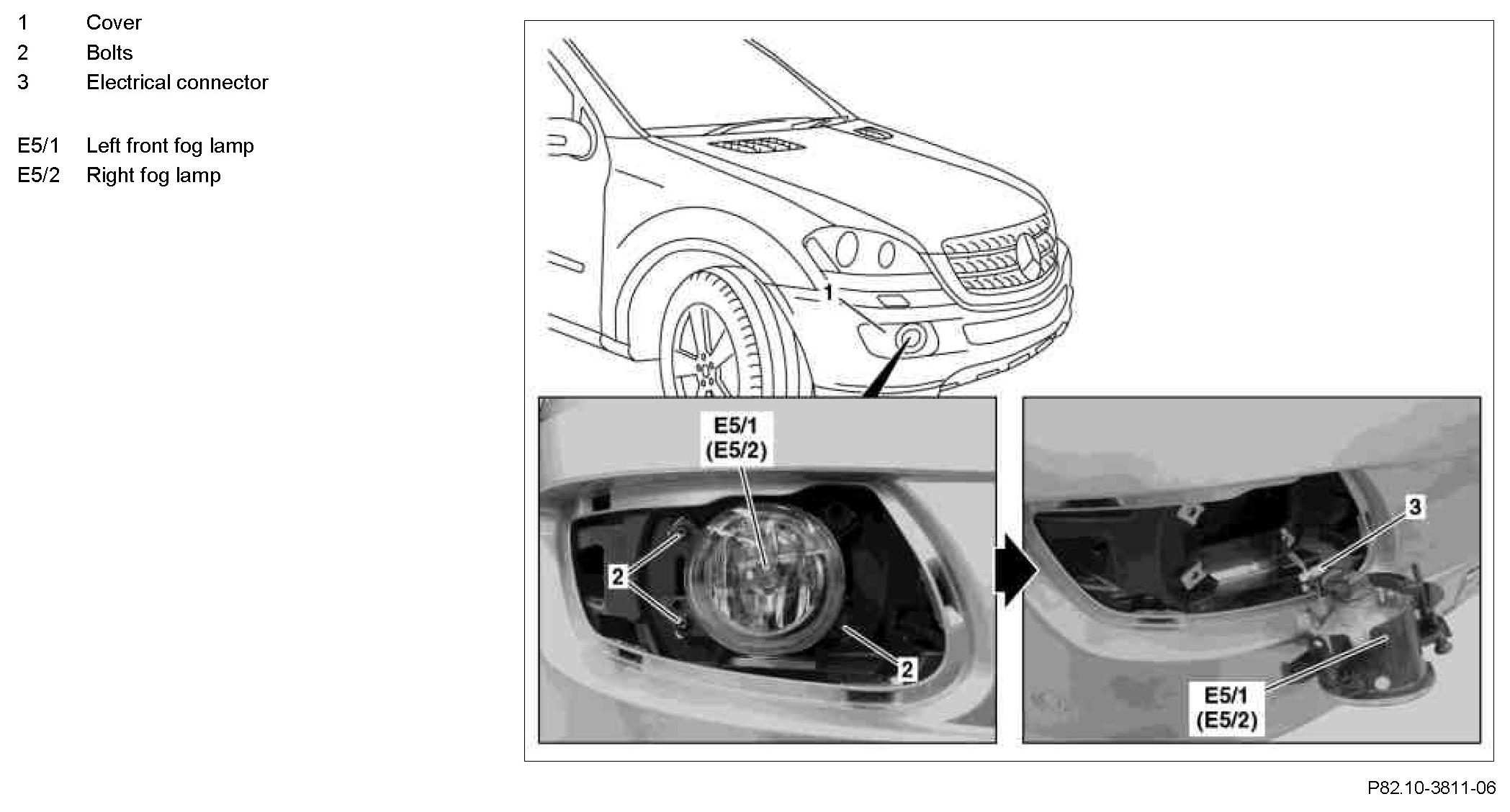

Component Identification:

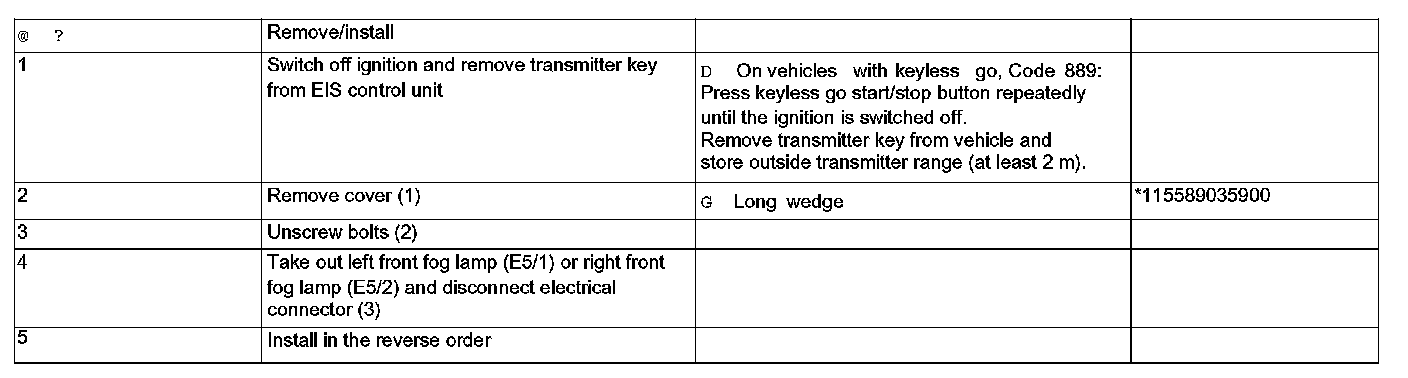

Steps 1 - 5:

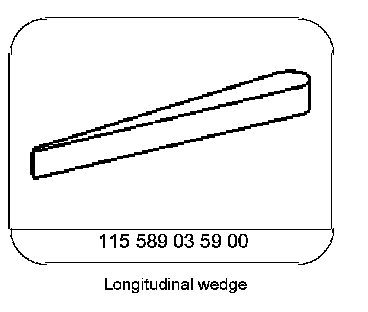

Special Tools:
