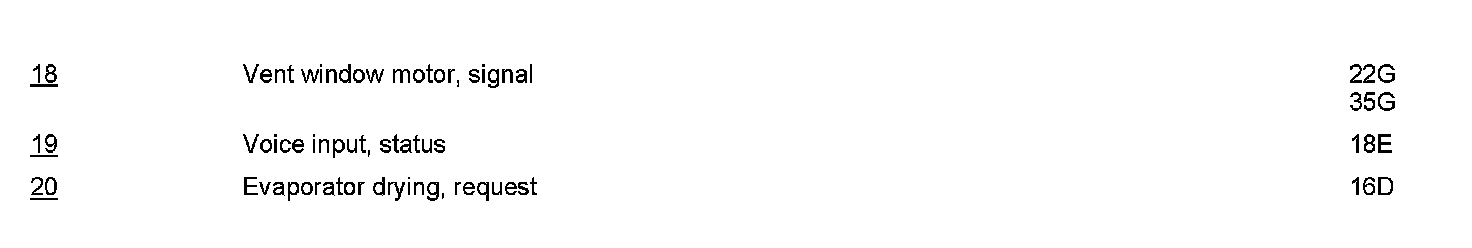

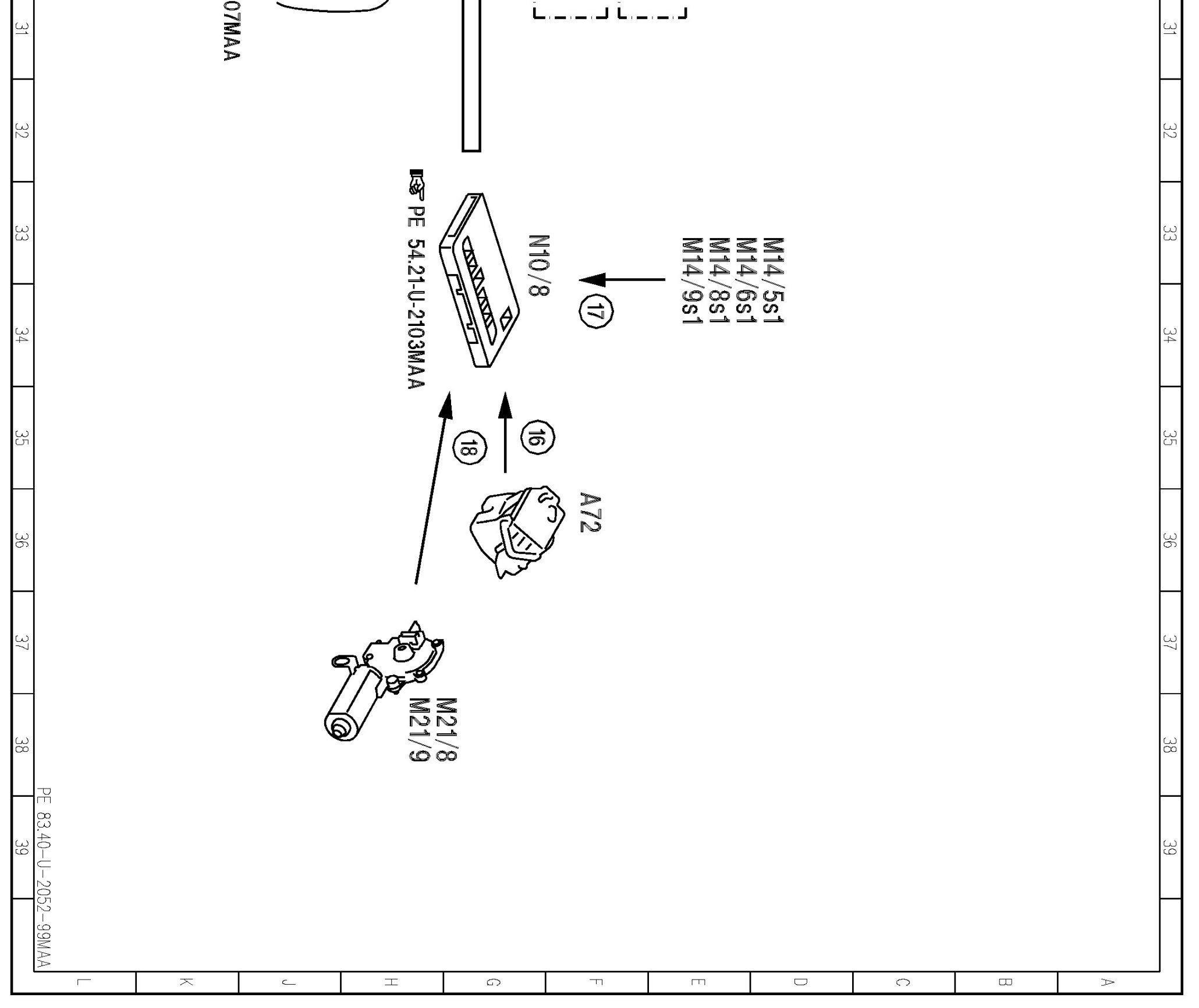

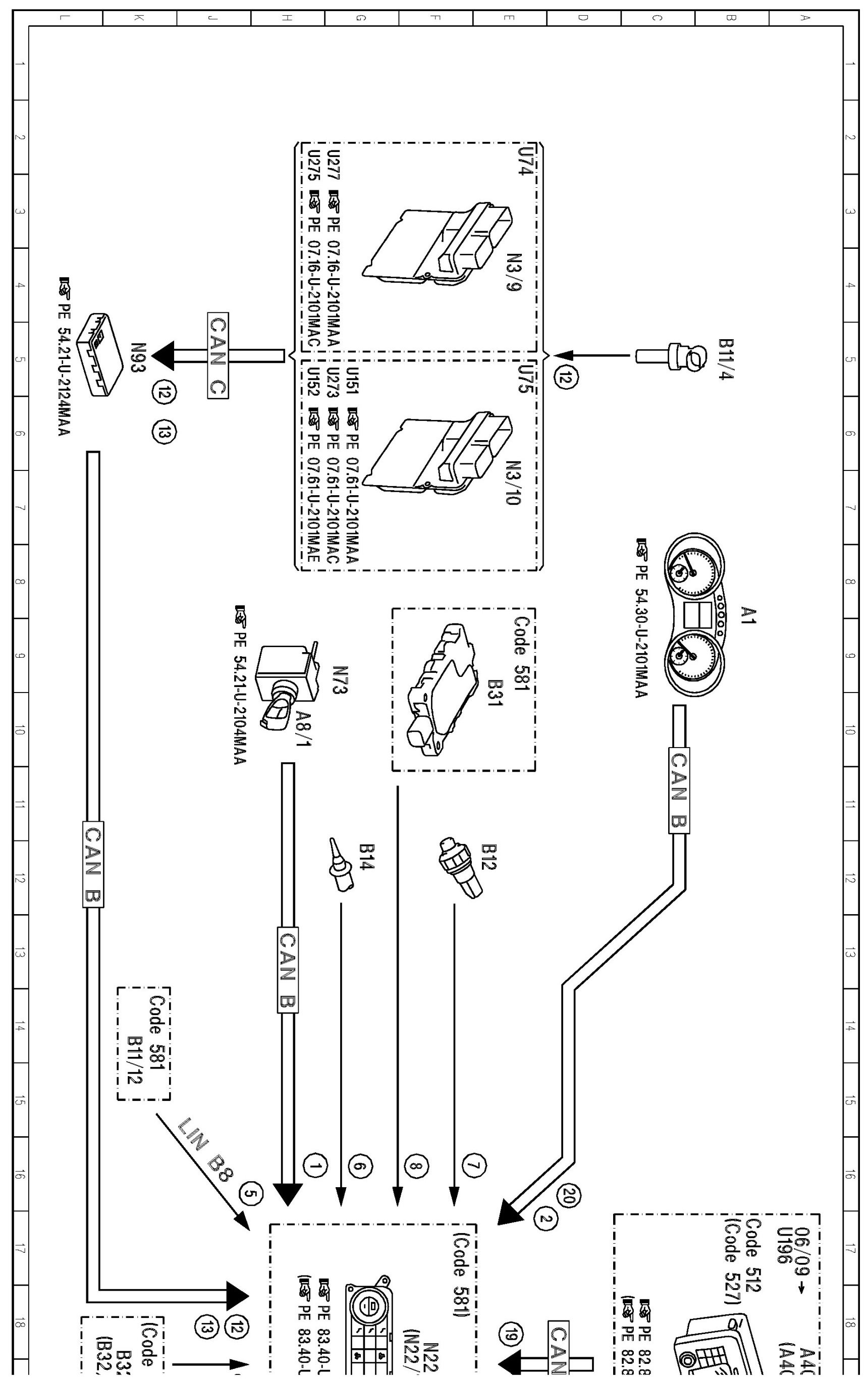

PE83.40-U-2052MAA Electrical Function Diagram For Automatic Air Conditioning Input Signals

PE83.40-U-2052MAA Electrical Function Diagram For Automatic Air Conditioning Input Signals

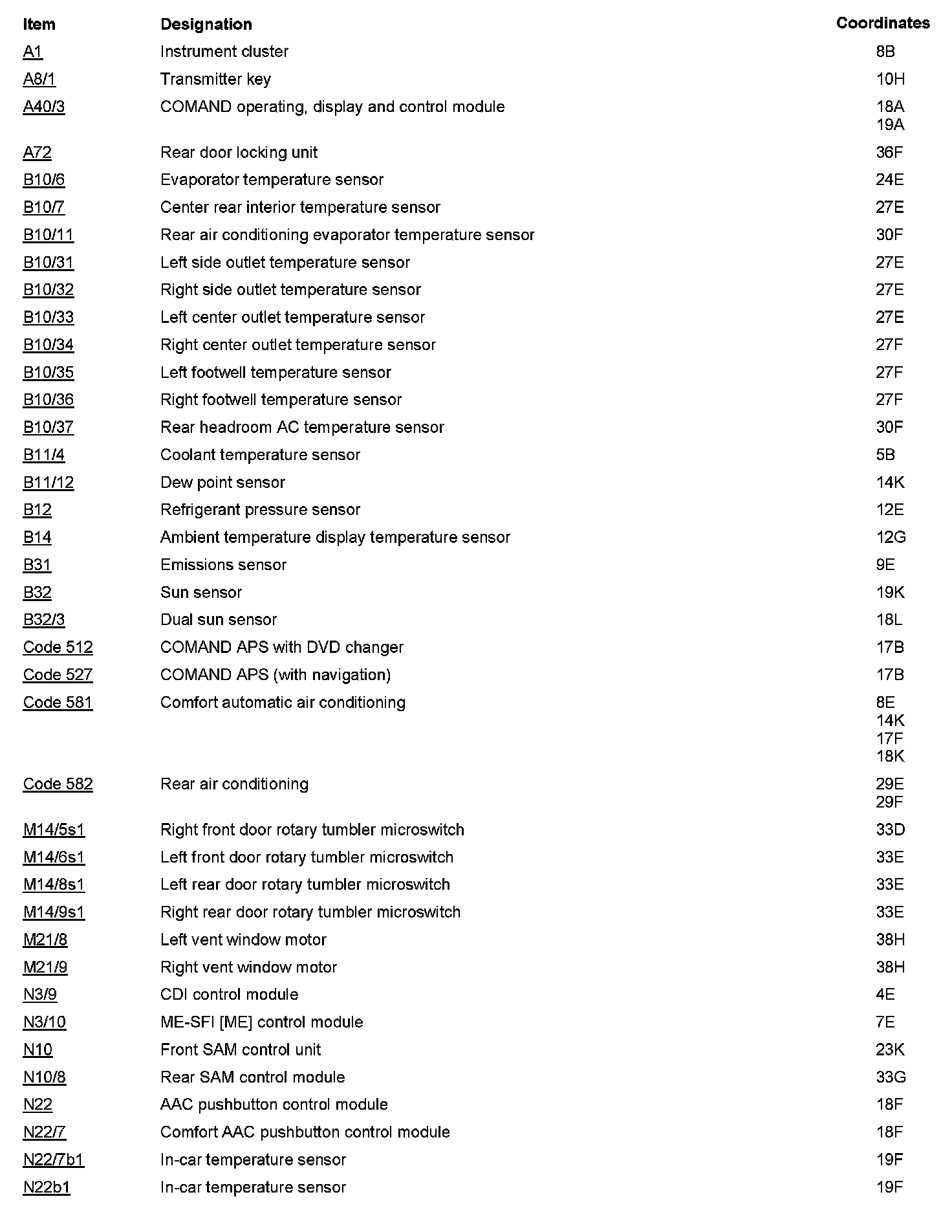

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
