AR49.10-P-7280GZB Remove/Install Exhaust System From Flange Connection



AR49.10-P-7280GZB Remove/install exhaust system from flange connection

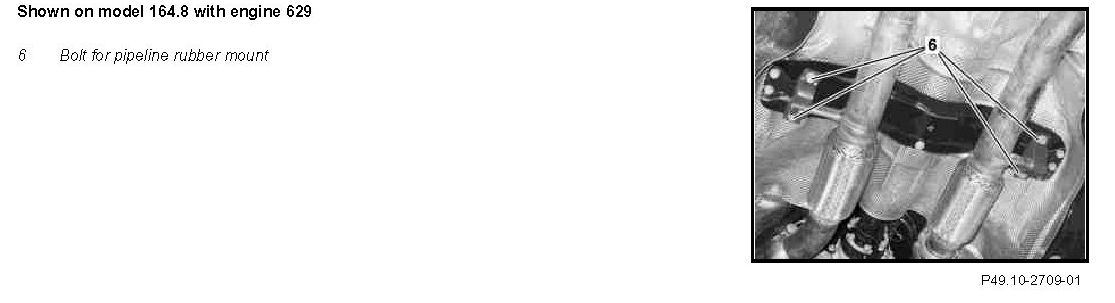

Component Identification:




Component Identification:

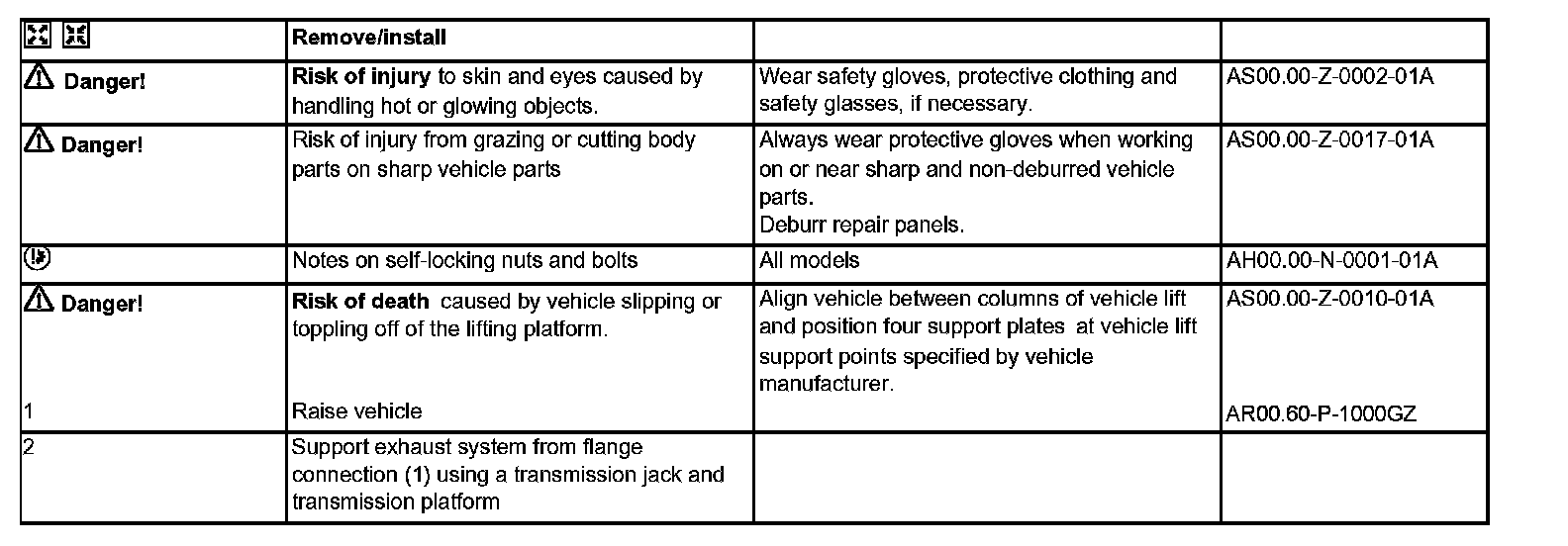

Remove/install Steps 1-2:

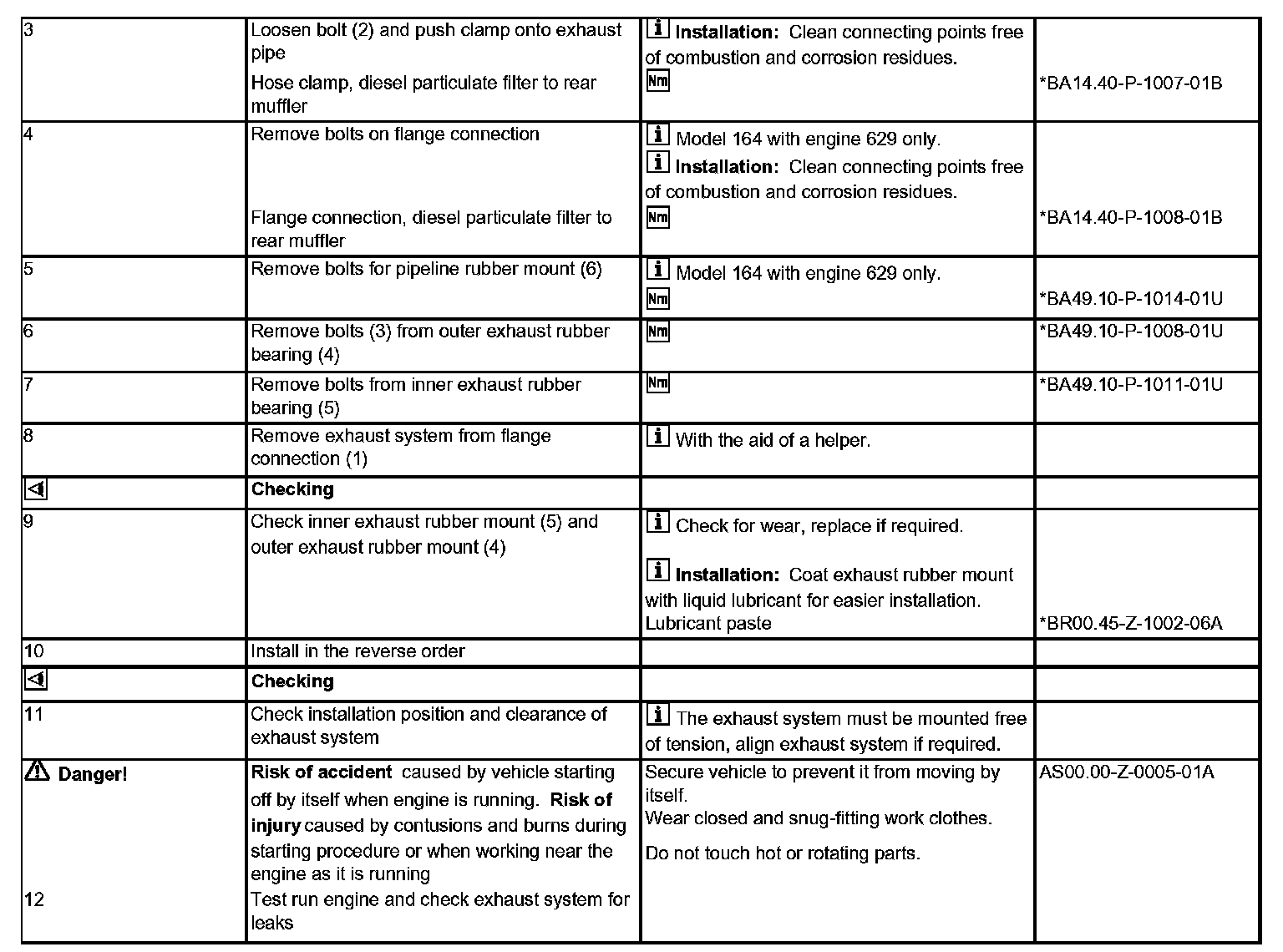

Remove/install Steps 3-12:




Exhaust system:

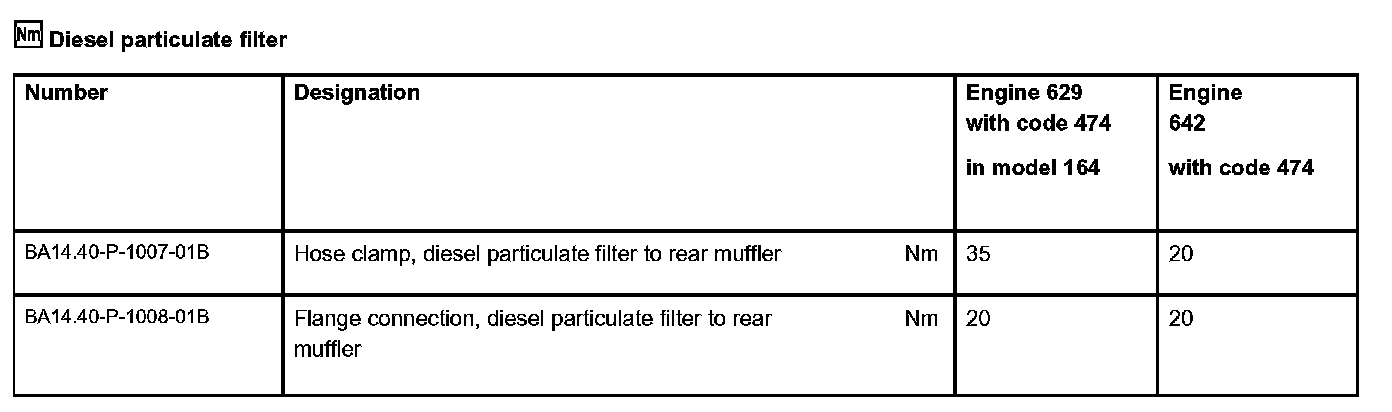

Diesel particulate filter:




Repair materials:
