Timing Chain: Testing and Inspection



AR05.10-P-7600GZB Check timing chain

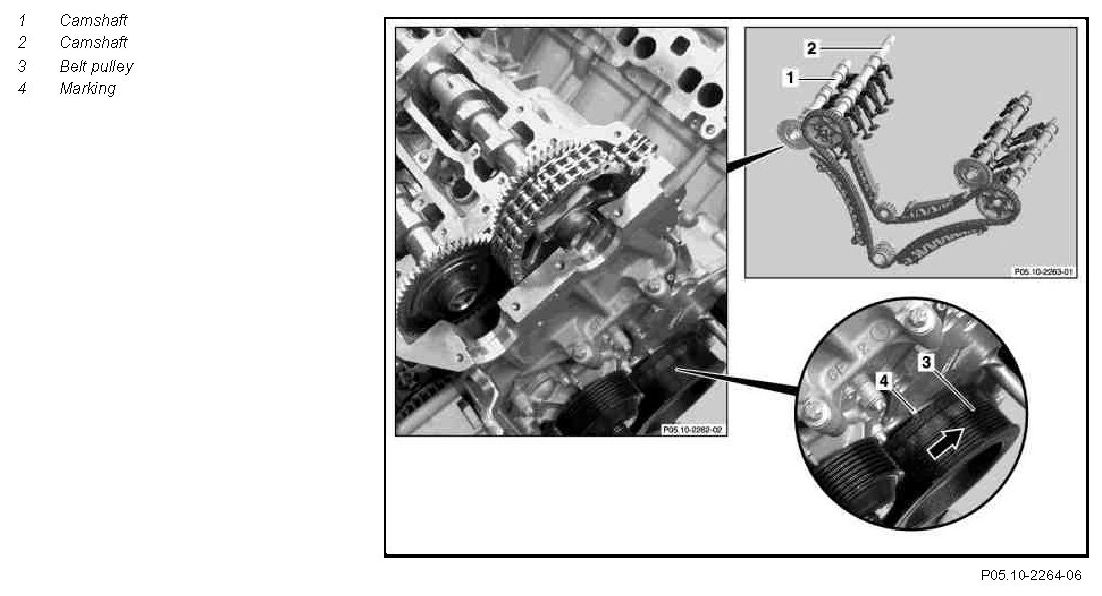

Component Identification:

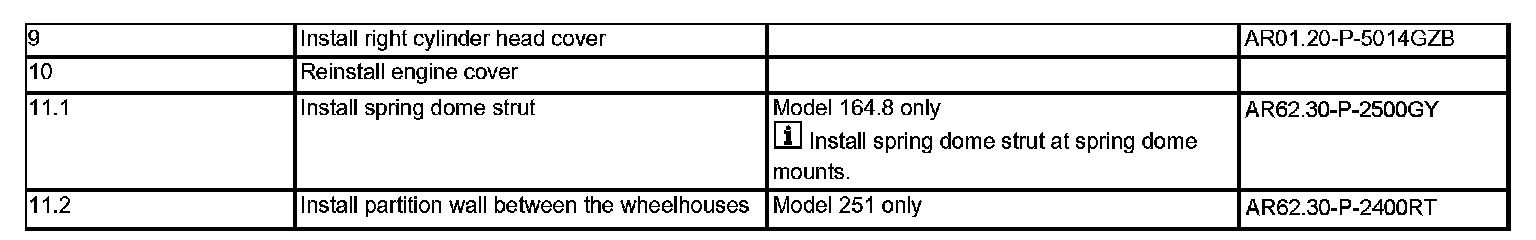

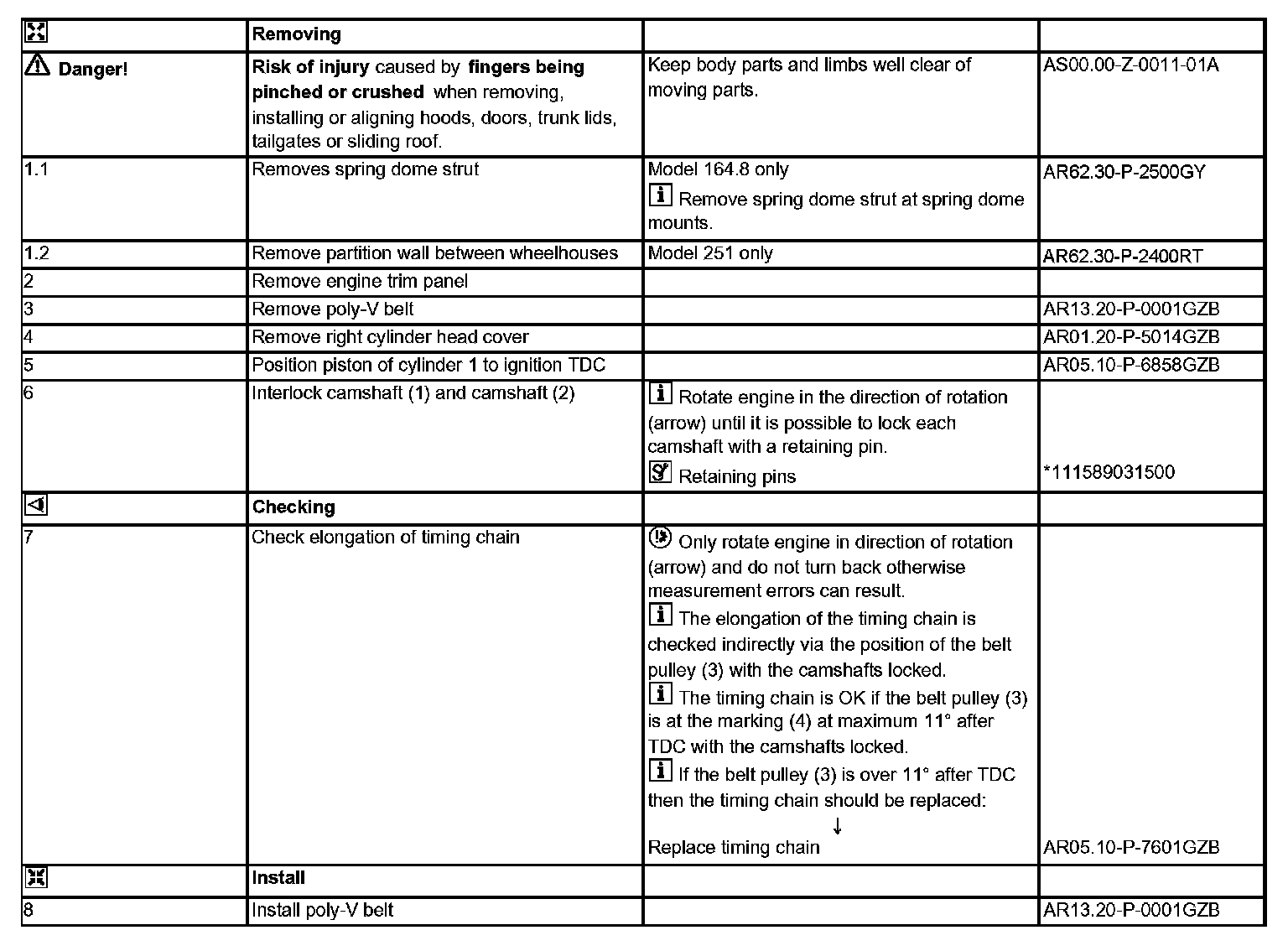

Steps 1.1-8:




Steps 9-11.2:

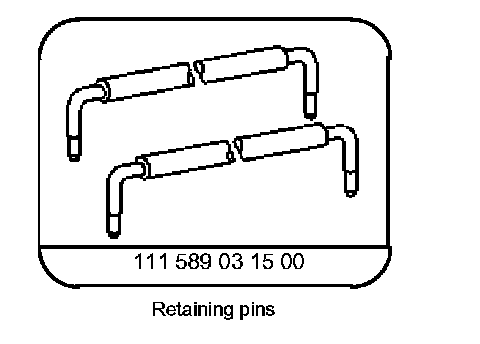

Special Tools:
