Removal and Replacement
AR05.10-P-7601GZB Replace timing chain

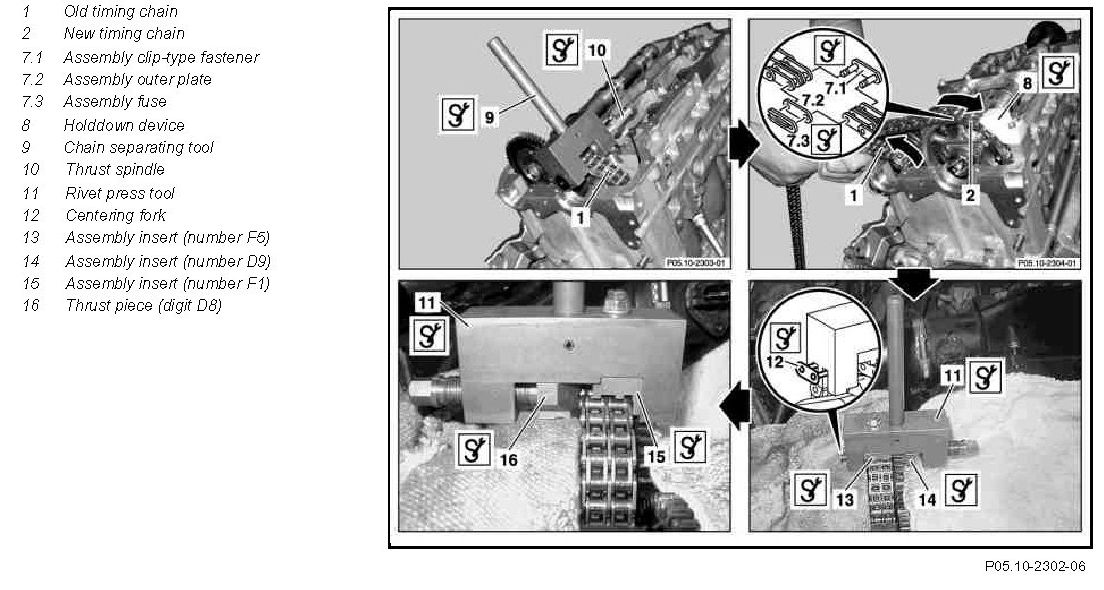

Component Identification:

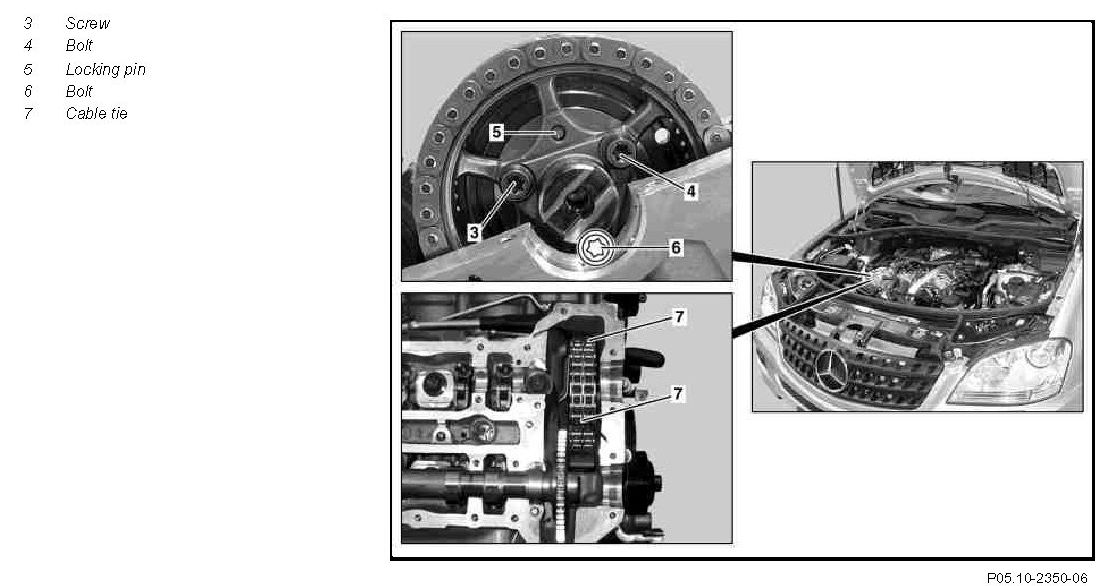

Component Identification:

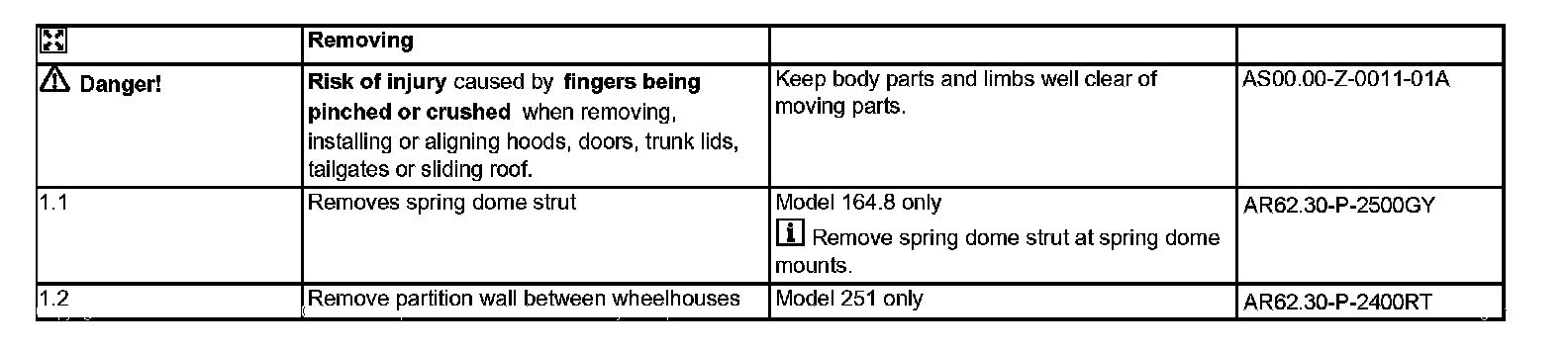

Steps 1.1-1.2:

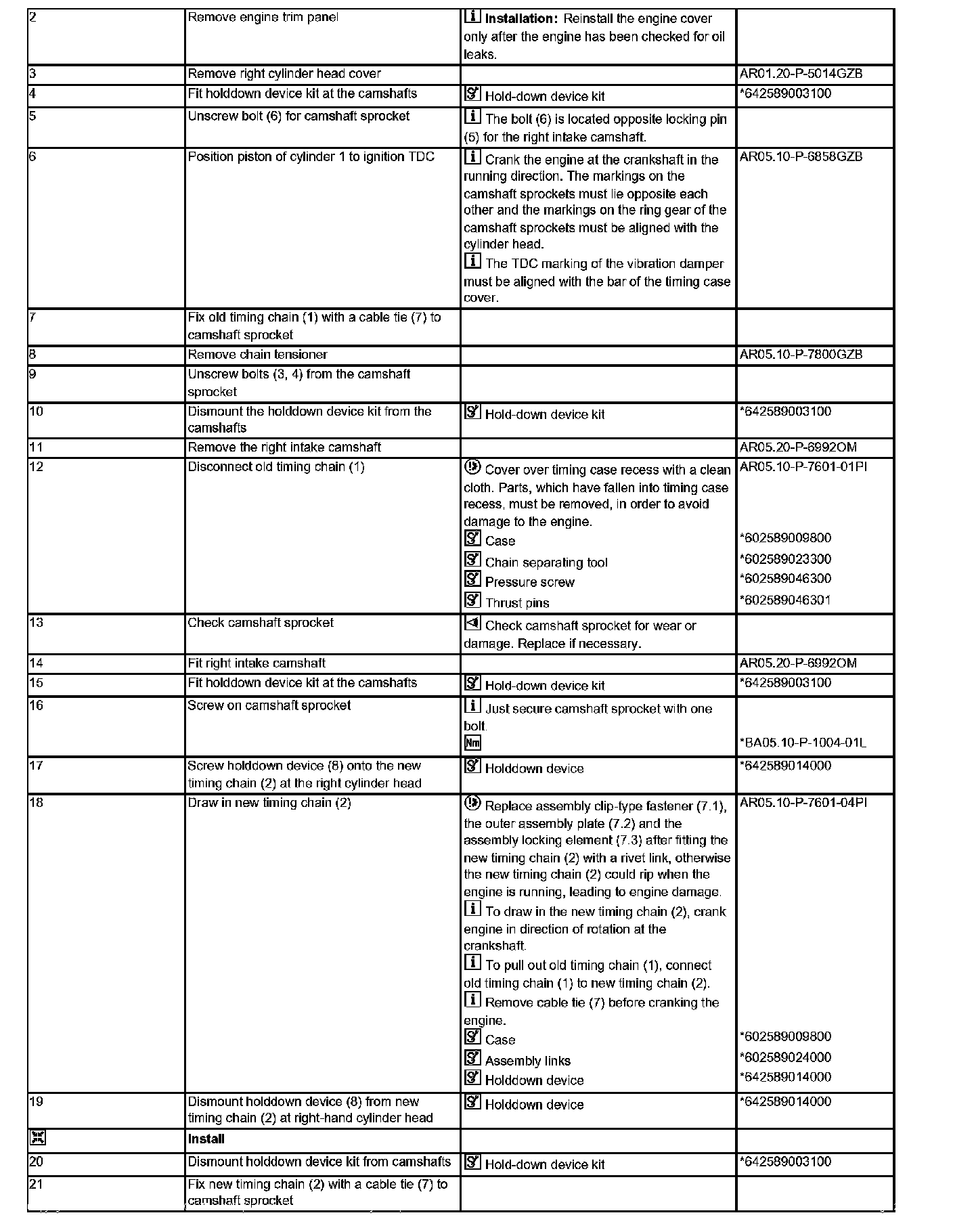

Steps 2-21:

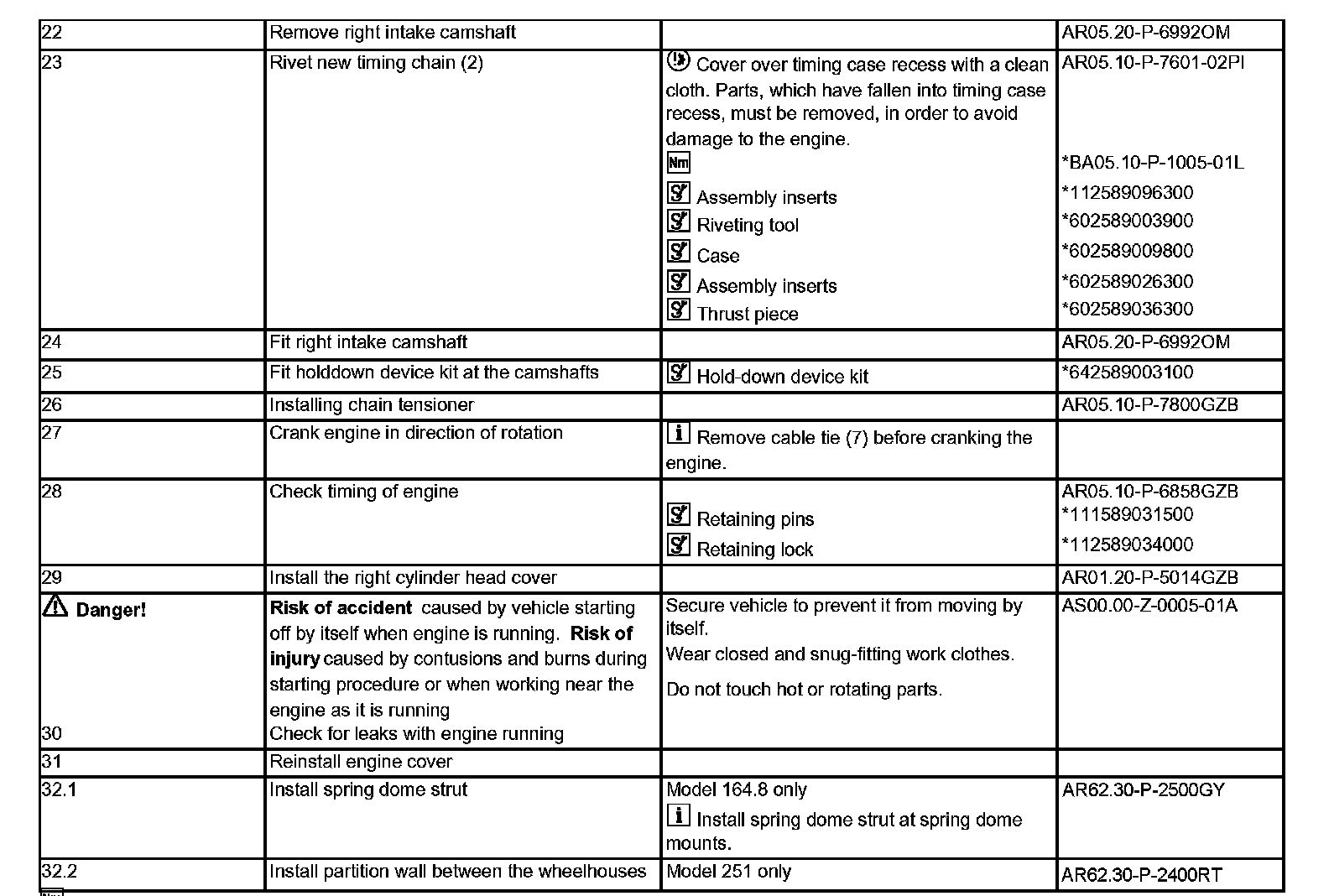

Steps 22-32.2:

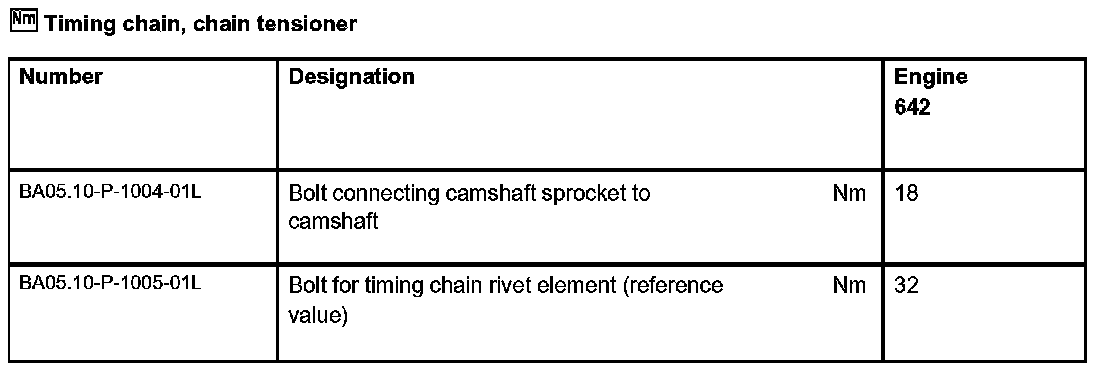

Timing chain, chain tensioner:

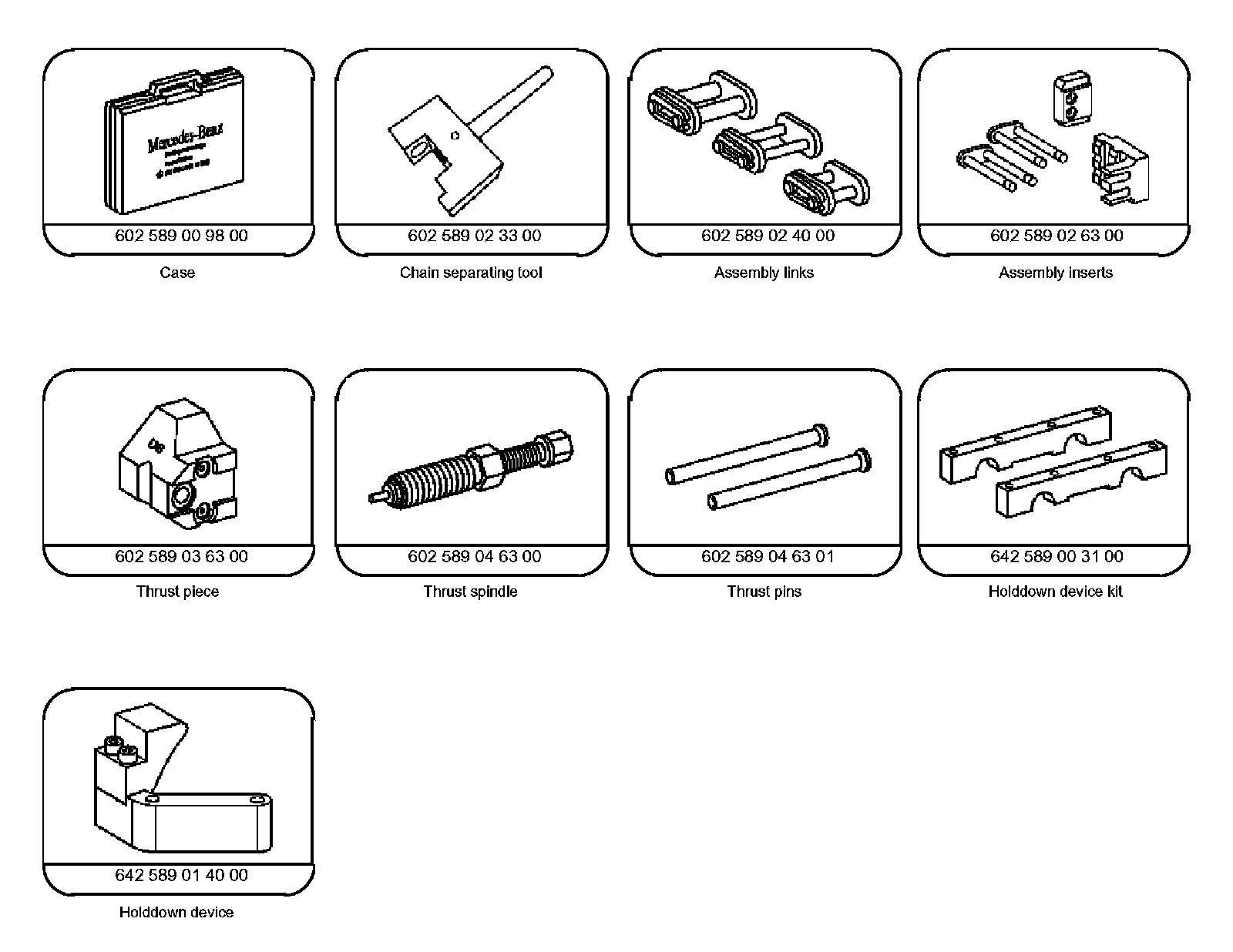

Special Tools:

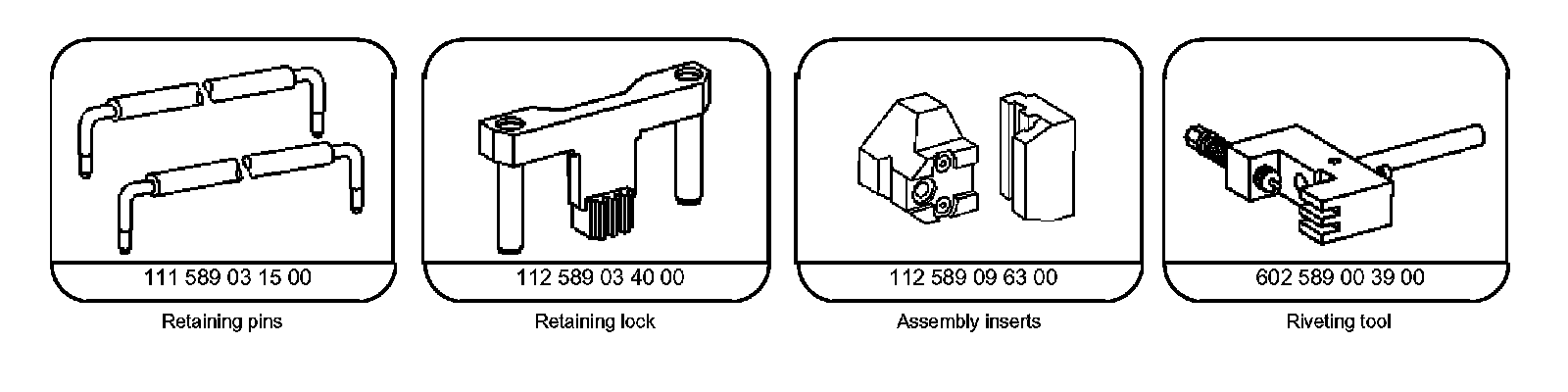

Special Tools:
AR05.10-P-7601GZB Replace timing chain
