AR05.10-P-7800GZB Remove/Install Chain Tensioner



AR05.10-P-7800GZB Remove/install chain tensioner

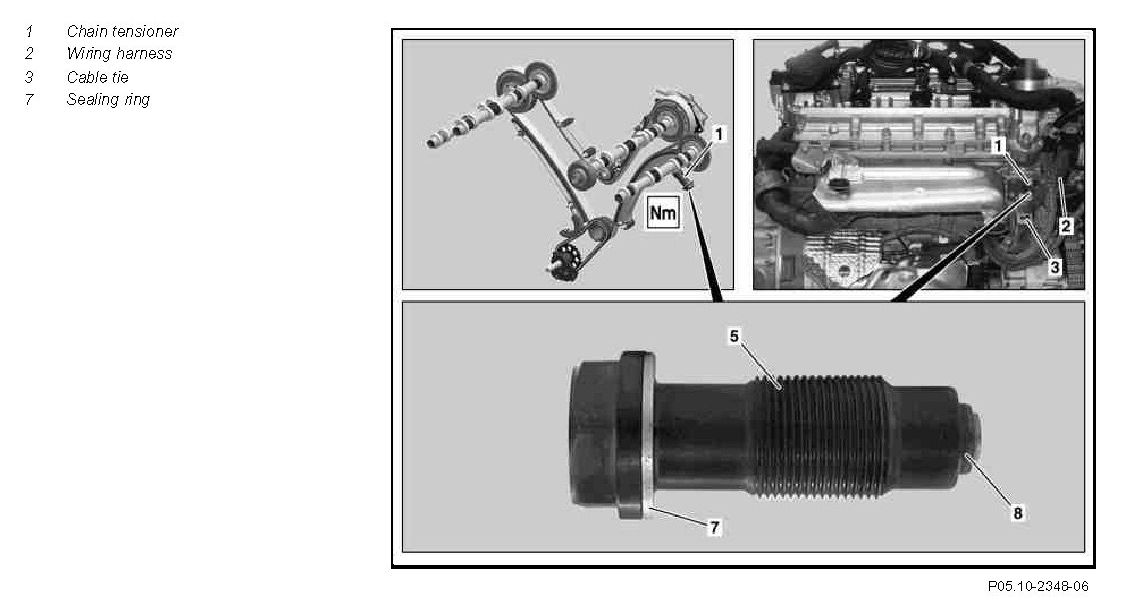

Component Identification:

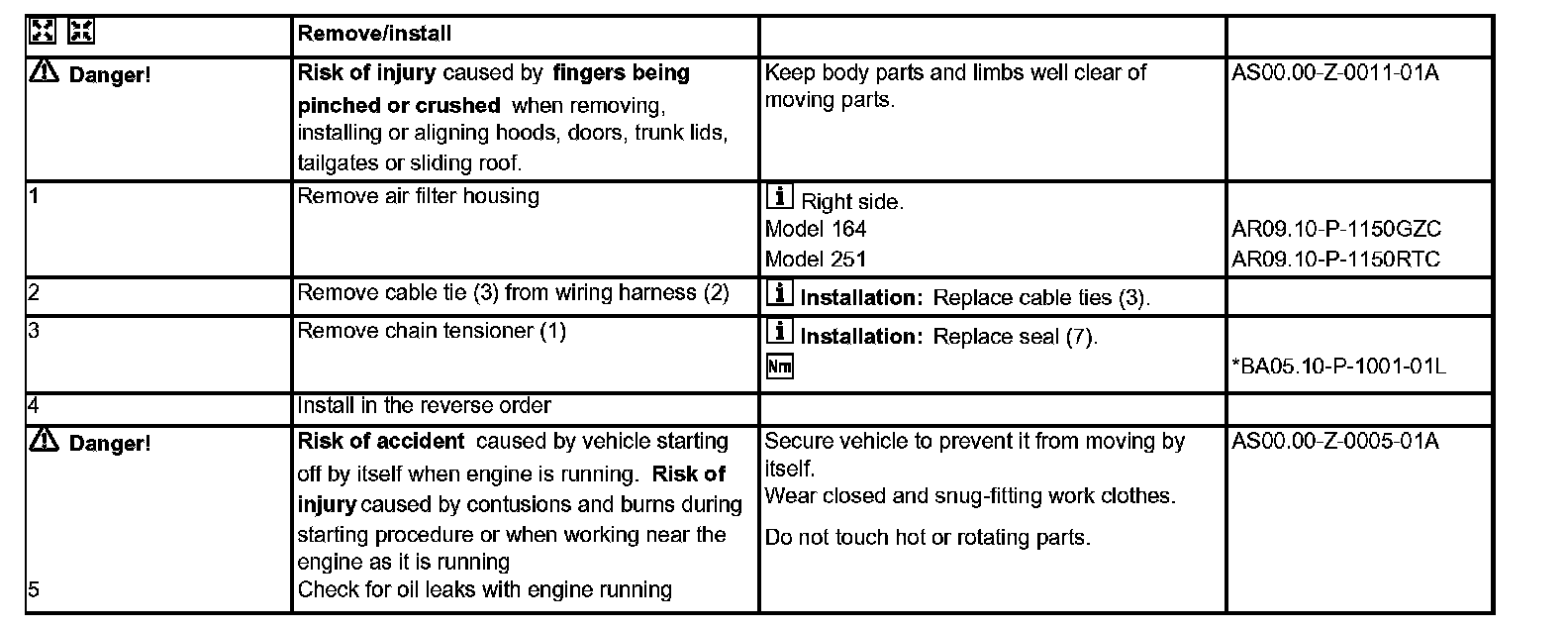

Remove/install Steps 1-5:

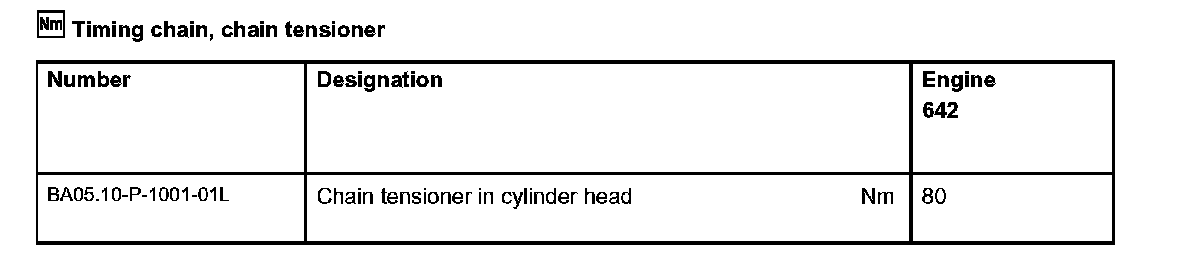

Timing chain, chain tensioner:
