AR01.00-P-0200GZB Inspect Cylinders Using A Light Probe
AR01.00-P-0200GZB Inspect Cylinders Using A Light Probe
AR01.00-P-0200GZB Inspect cylinders using a light probe

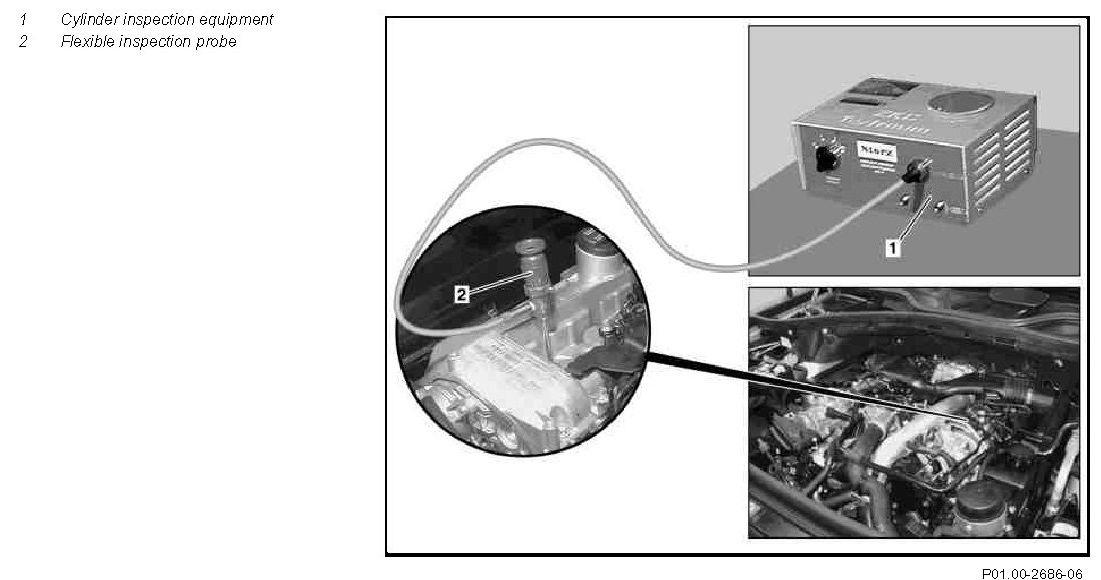

Component Identification:

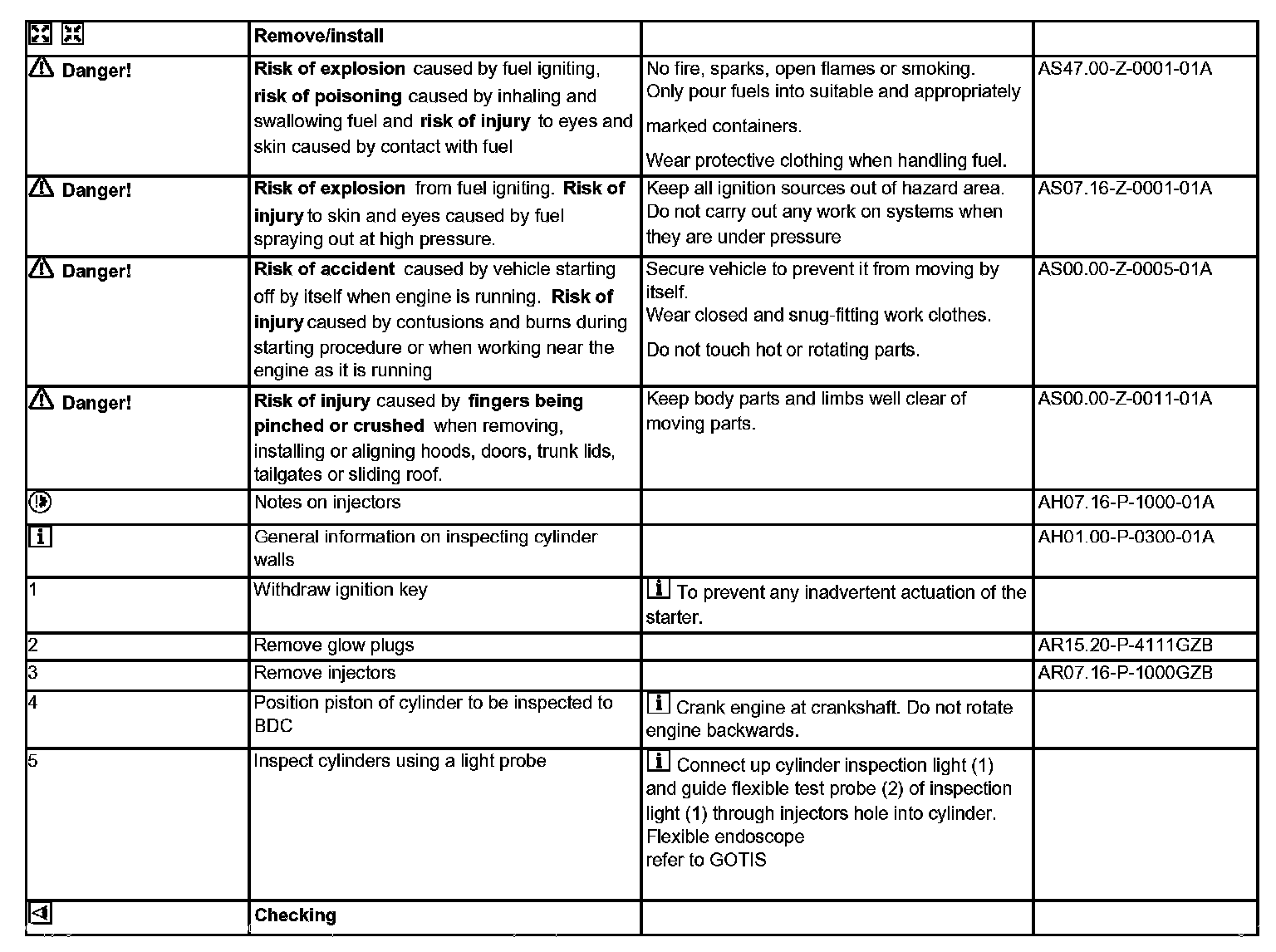

Remove/install Steps 1-5:

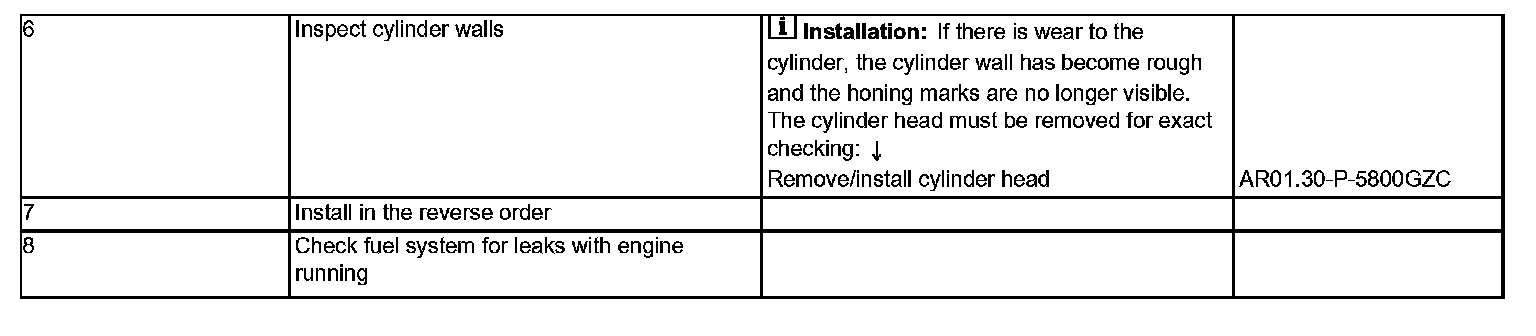

Remove/install Steps 6-8:
