AR01.10-P-2510GZB Remove/Install Engine From/Onto Front Axle Carrier

AR01.10-P-2510GZB Remove/Install Engine From/Onto Front Axle Carrier
ENGINES 642 in MODEL 164, 251
ENGINES 629 in MODEL 164

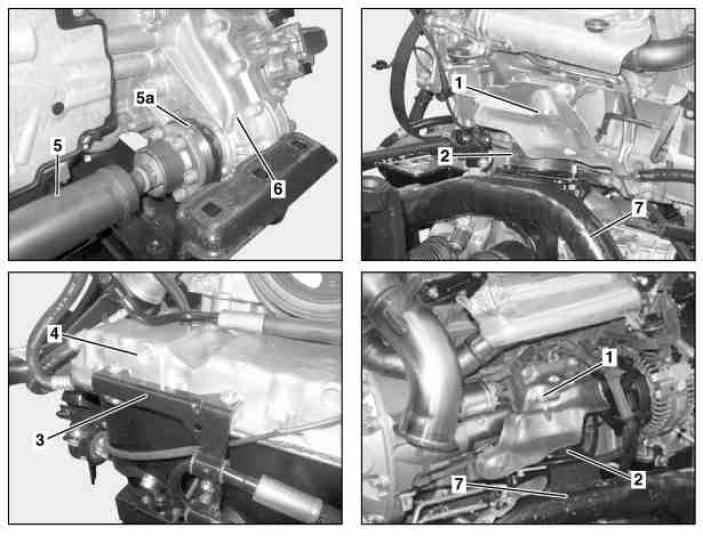

Shown on engine 642

1 Screw/bolt
2 Engine mount
3 Bracket
4 Oil pan
5 Front propeller shaft
5a Propeller shaft flange
6 Transfer case
7 Front axle carrier




















164 589 02 07 00
Retainer wrench
