AR01.10-P-2510GZB Detach/Attach Engine On Front Axle Carrier

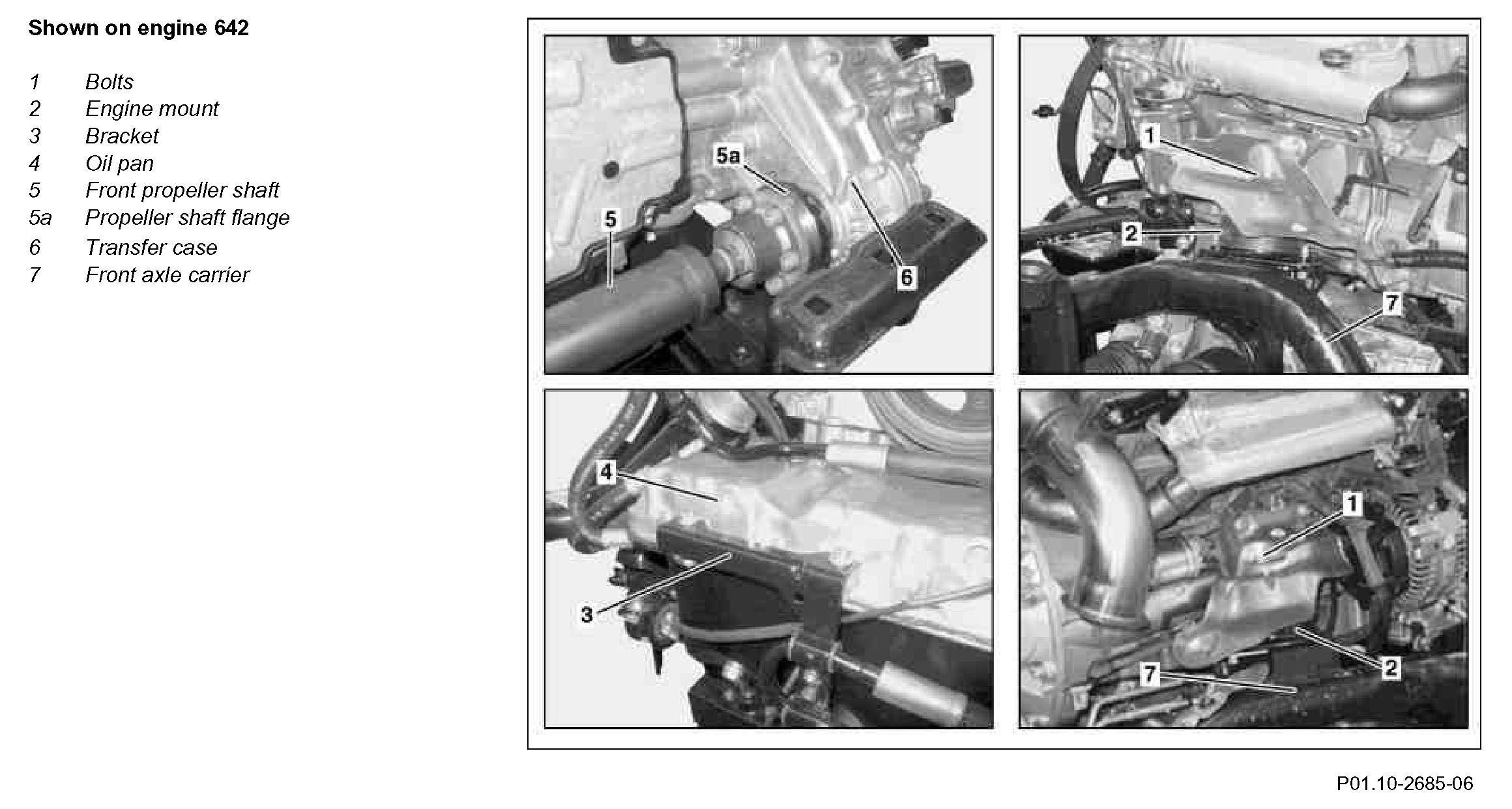

Component Identification:

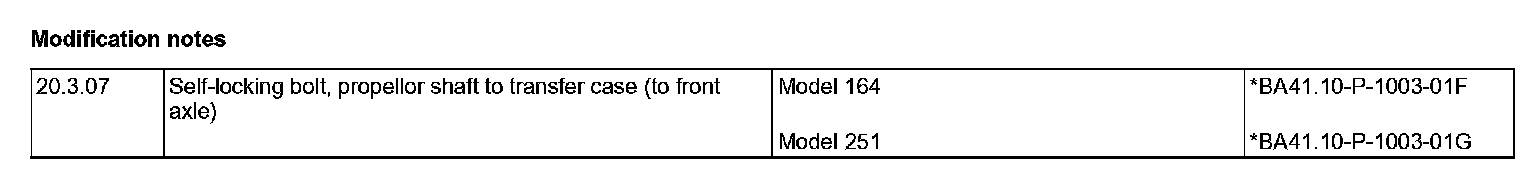

Modification notes:

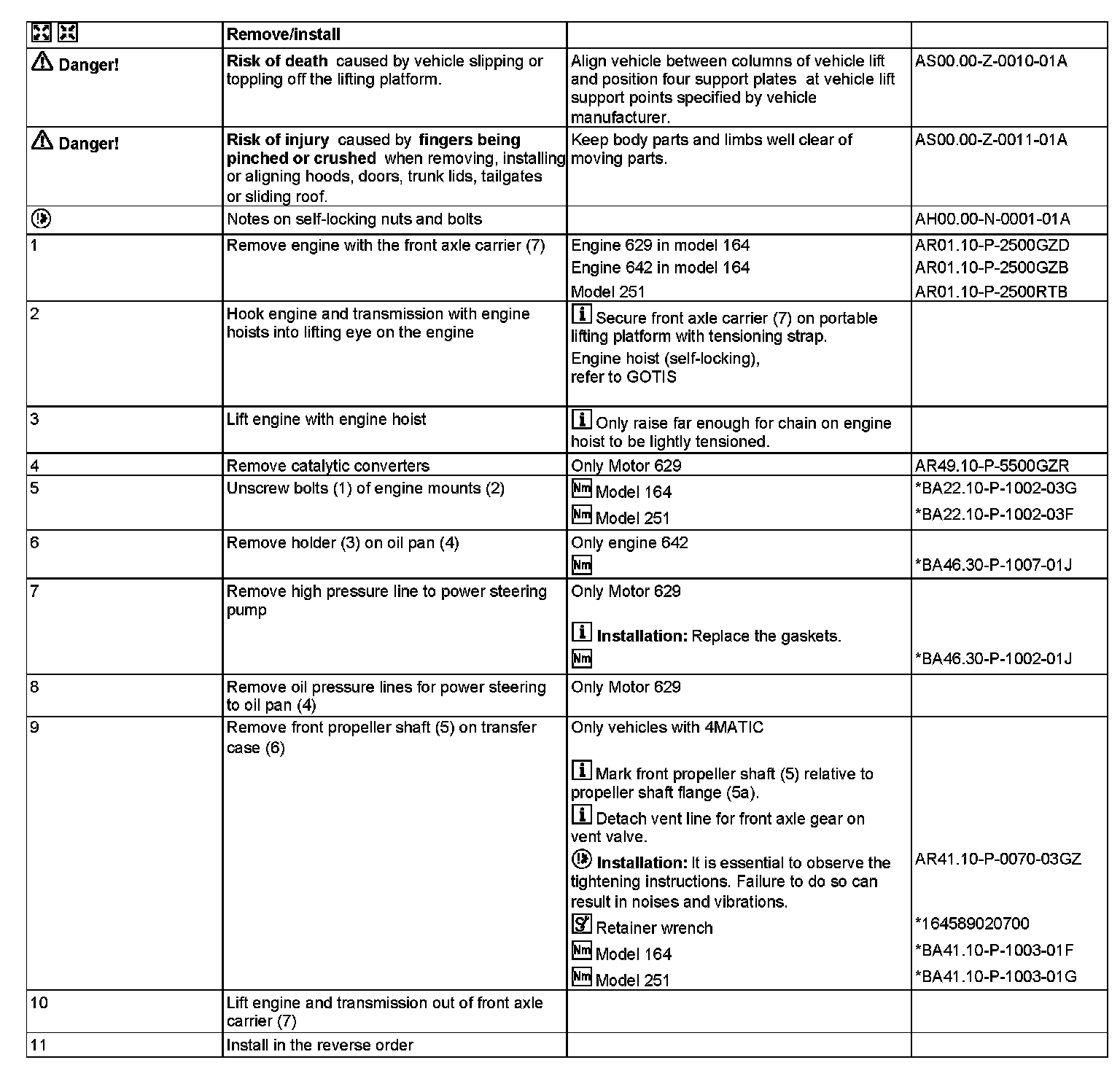

Steps 1-11:

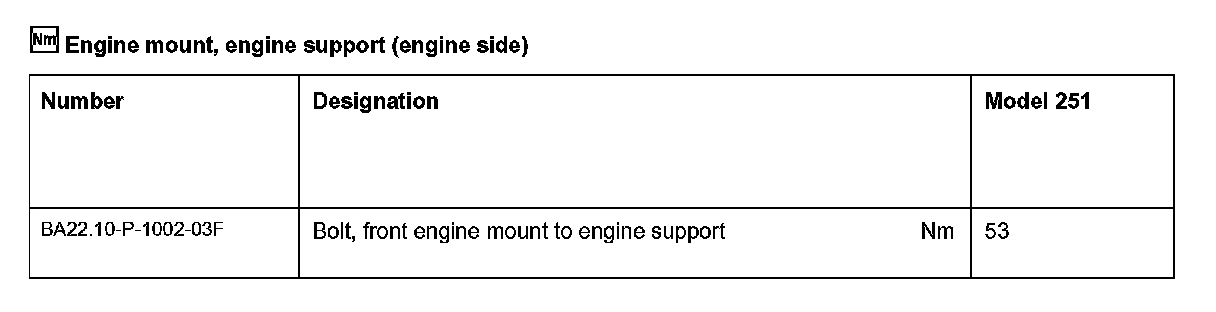

Engine mount, engine support (engine side):

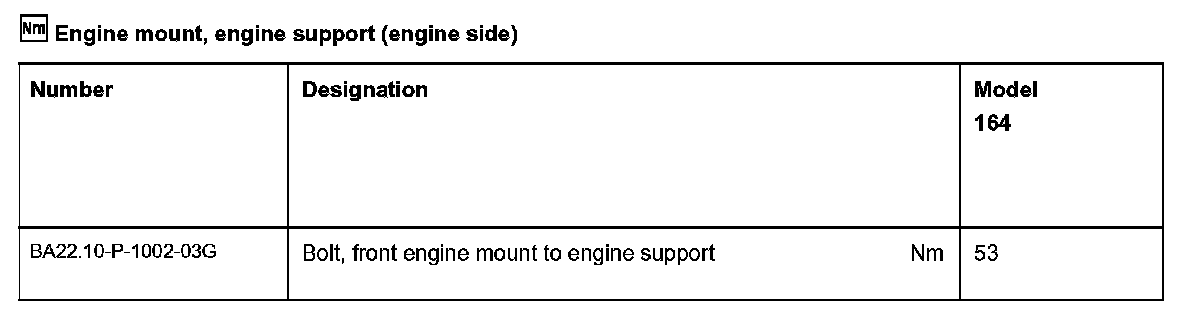

Engine mount, engine support (engine side):

Power steering pump:

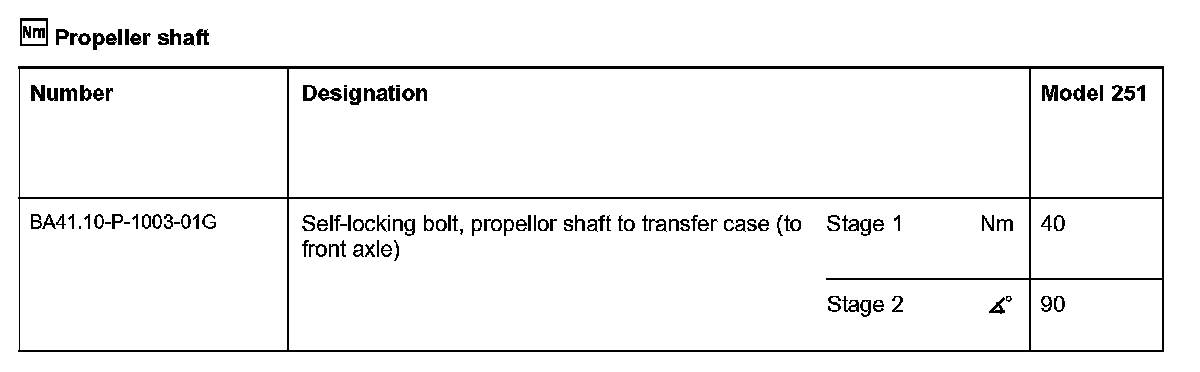

Propeller shaft:

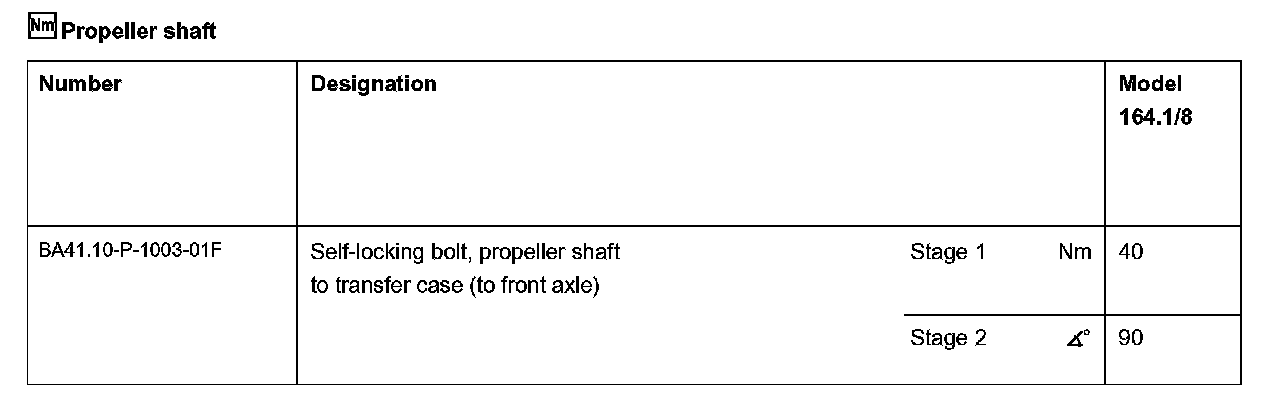

Propeller shaft:

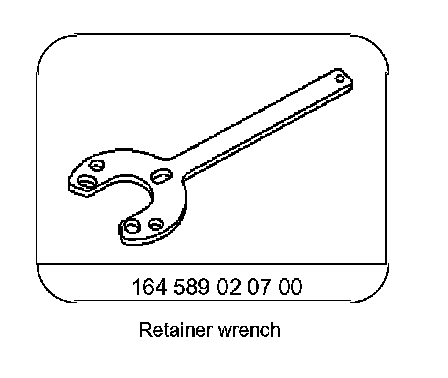

Special Tools:
