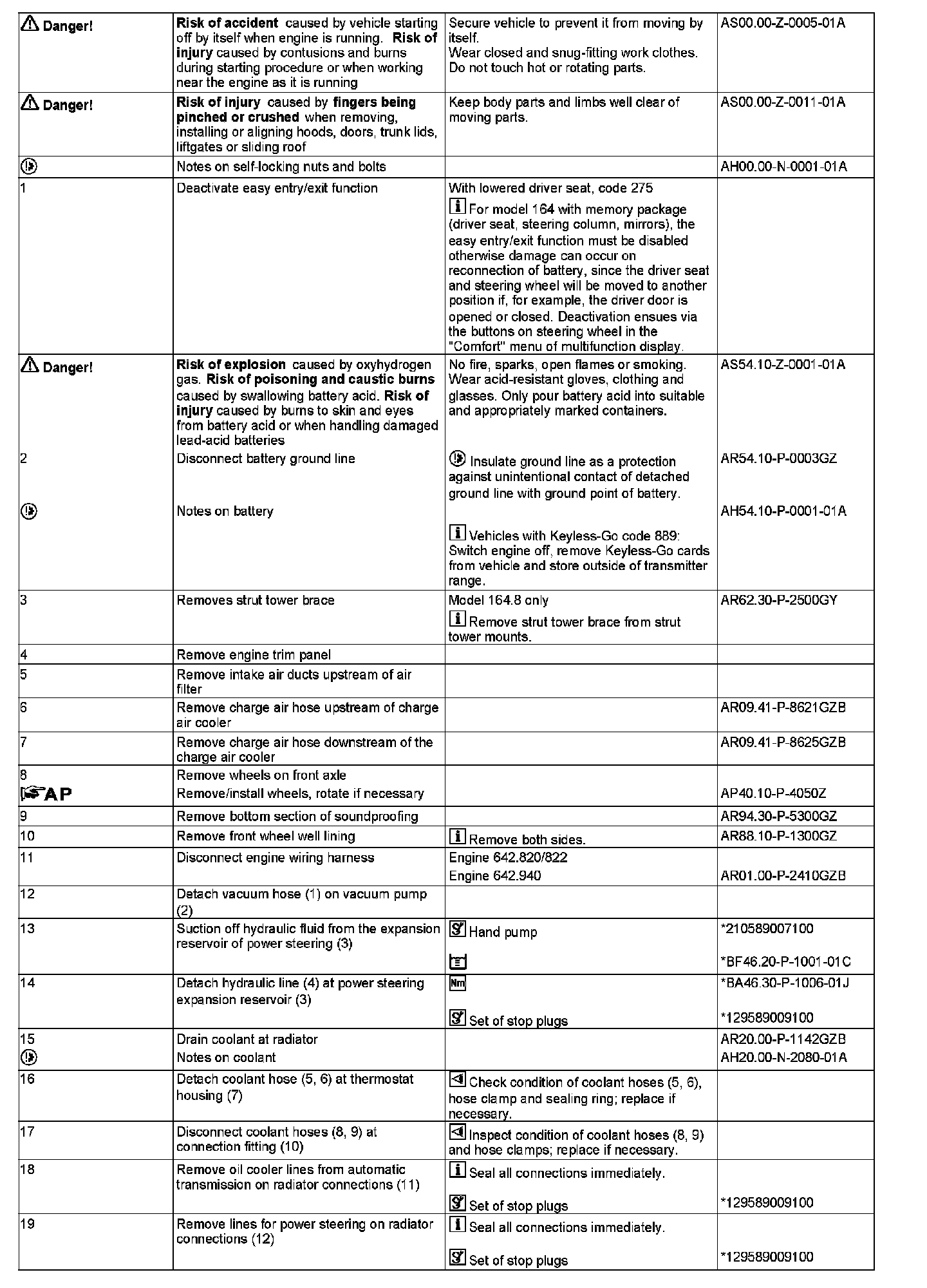

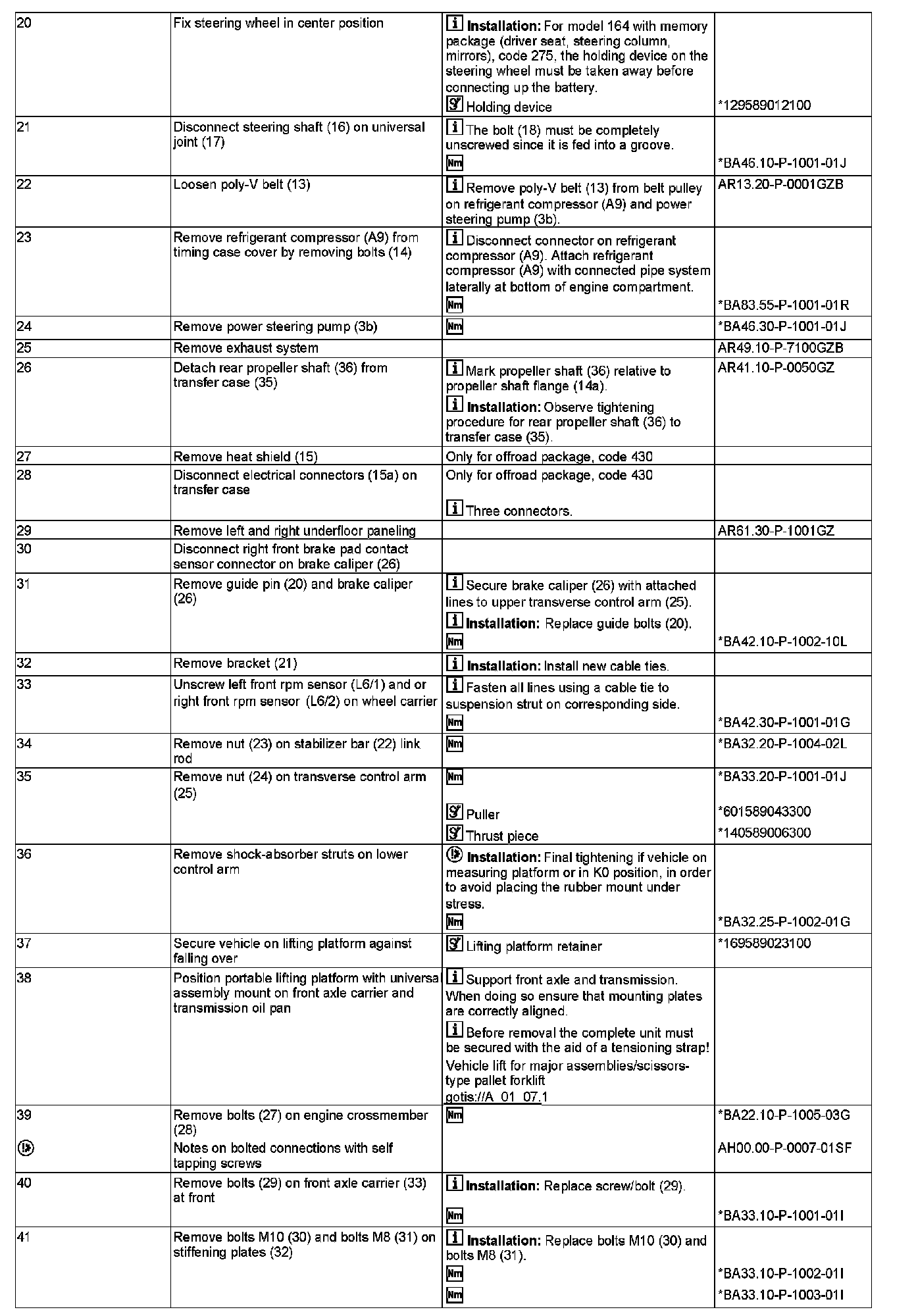

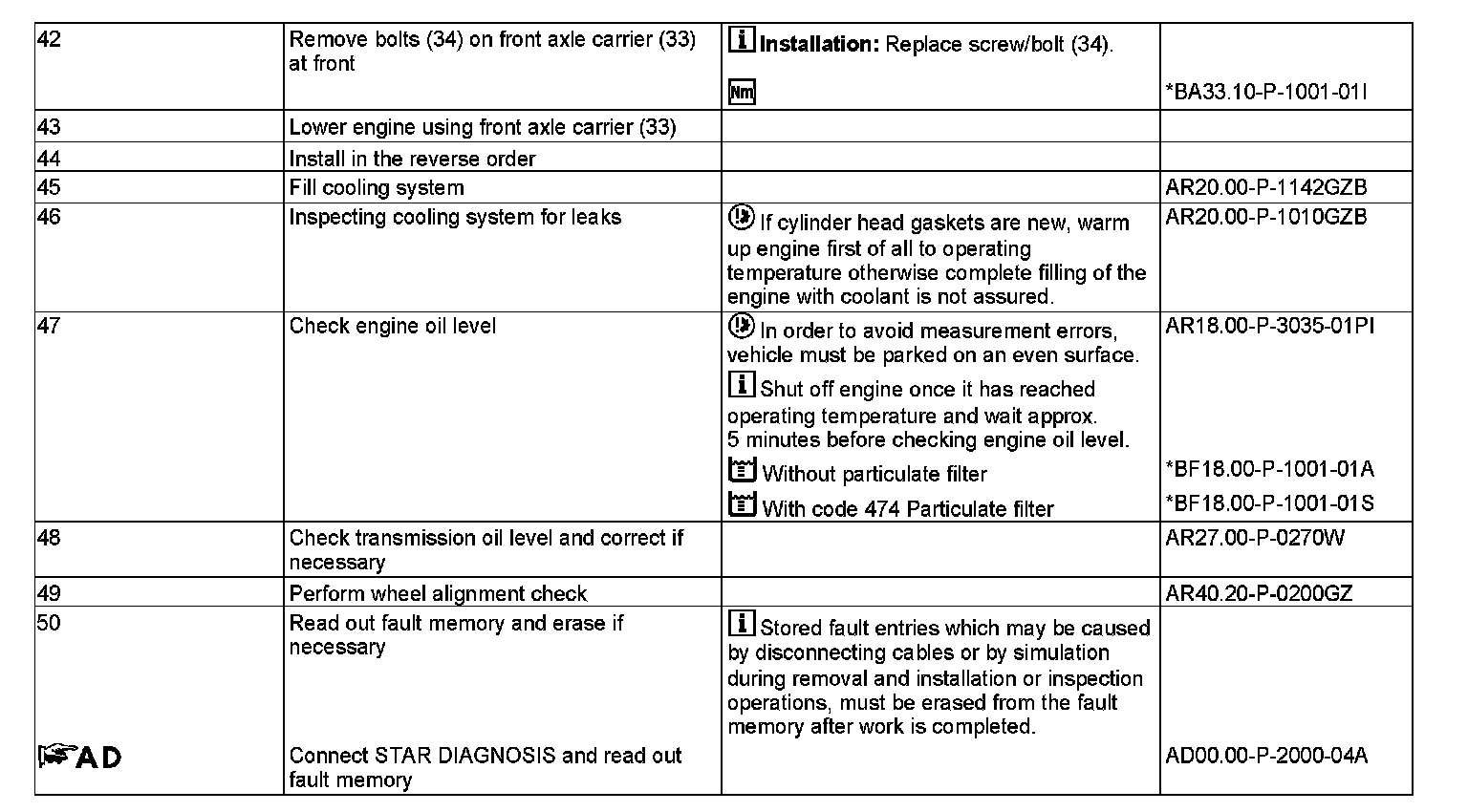

AR01.10-P-2500GZB Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500GZB Remove/Install Engine With Front Axle Carrier
ENGINES 642 in MODEL 164

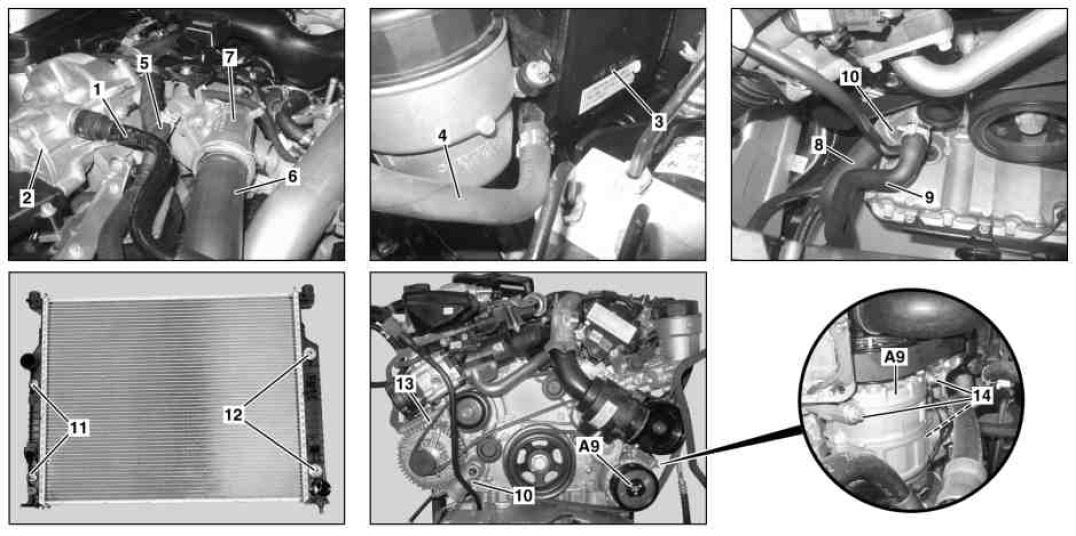

1 Vacuum hose
2 Vacuum pump
3 Power steering expansion reservoir
4 Hydraulic line
5 Coolant hose
6 Coolant hose
7 Thermostat housing
8 Coolant hose
9 Coolant hose
10 Connection fitting
11 Radiator connection
12 Radiator connection
13 Poly-V-belt
14 Bolts

A9 Refrigerant compressor

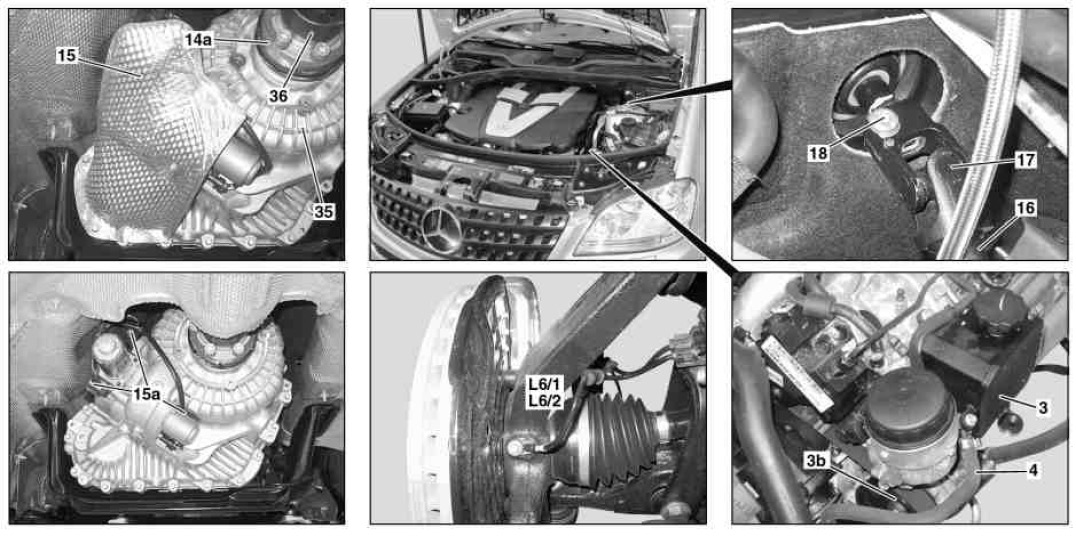

Shown on model 164 with off road package code 430

3 Power steering expansion reservoir

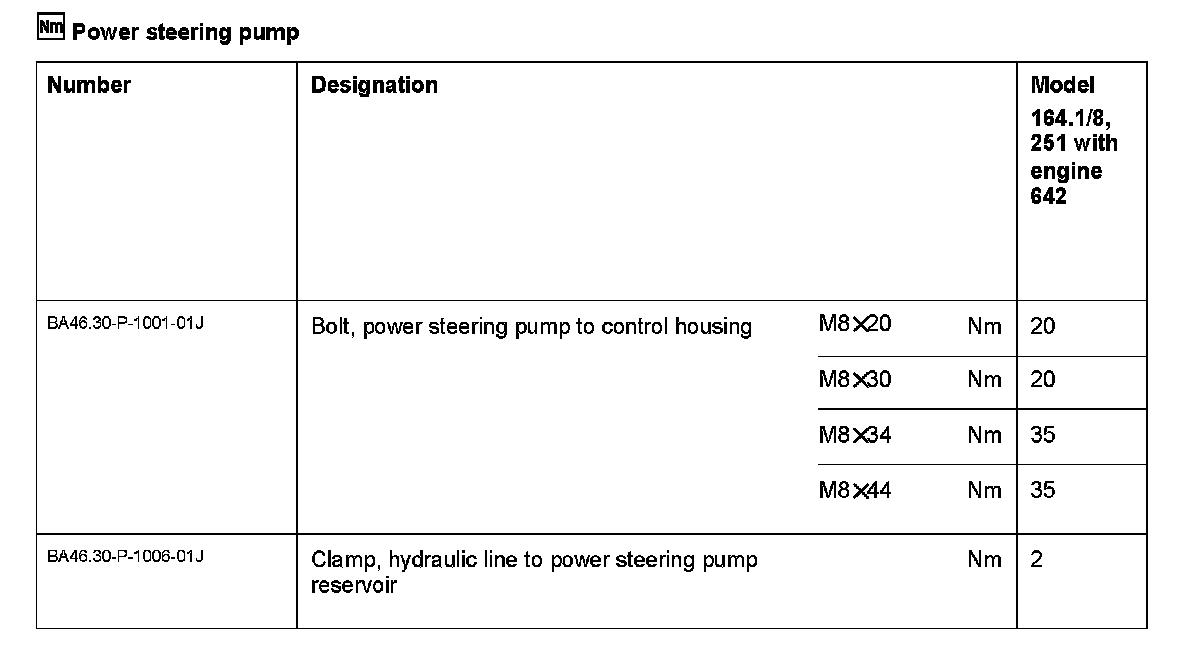

3b Power steering pump
4 Hydraulic line
14a Propeller shaft flange
15 Heat protection
15a Electrical connectors

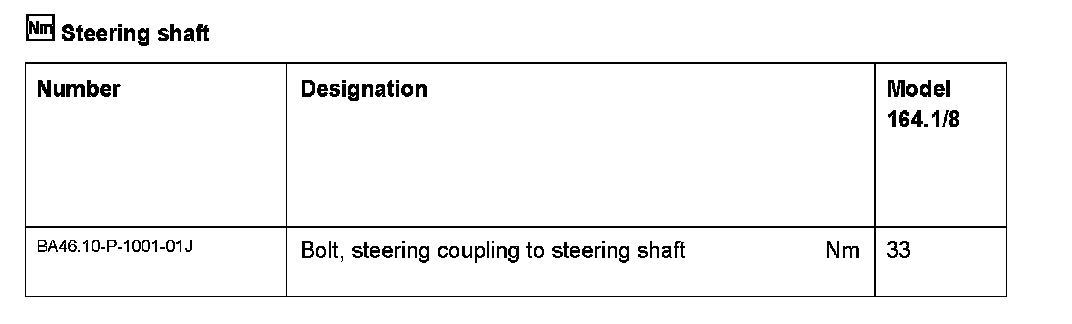

16 Steering shaft
17 Universal joint
18 Screw
35 Transfer case
36 Propeller shaft

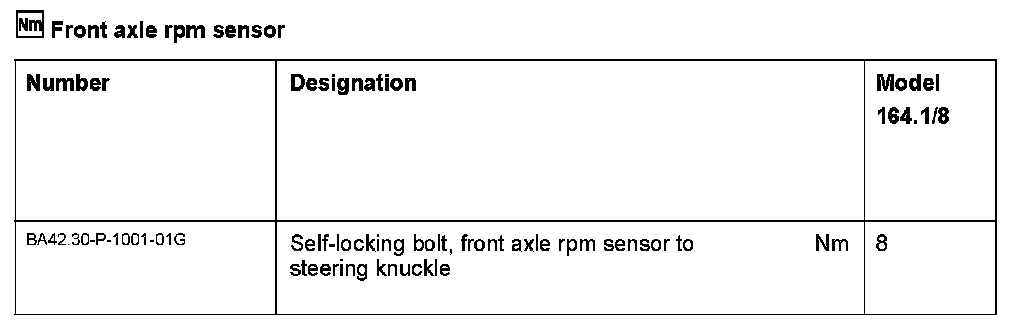

L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
