PE91.60-U-2105MAB Airbag Control Unit

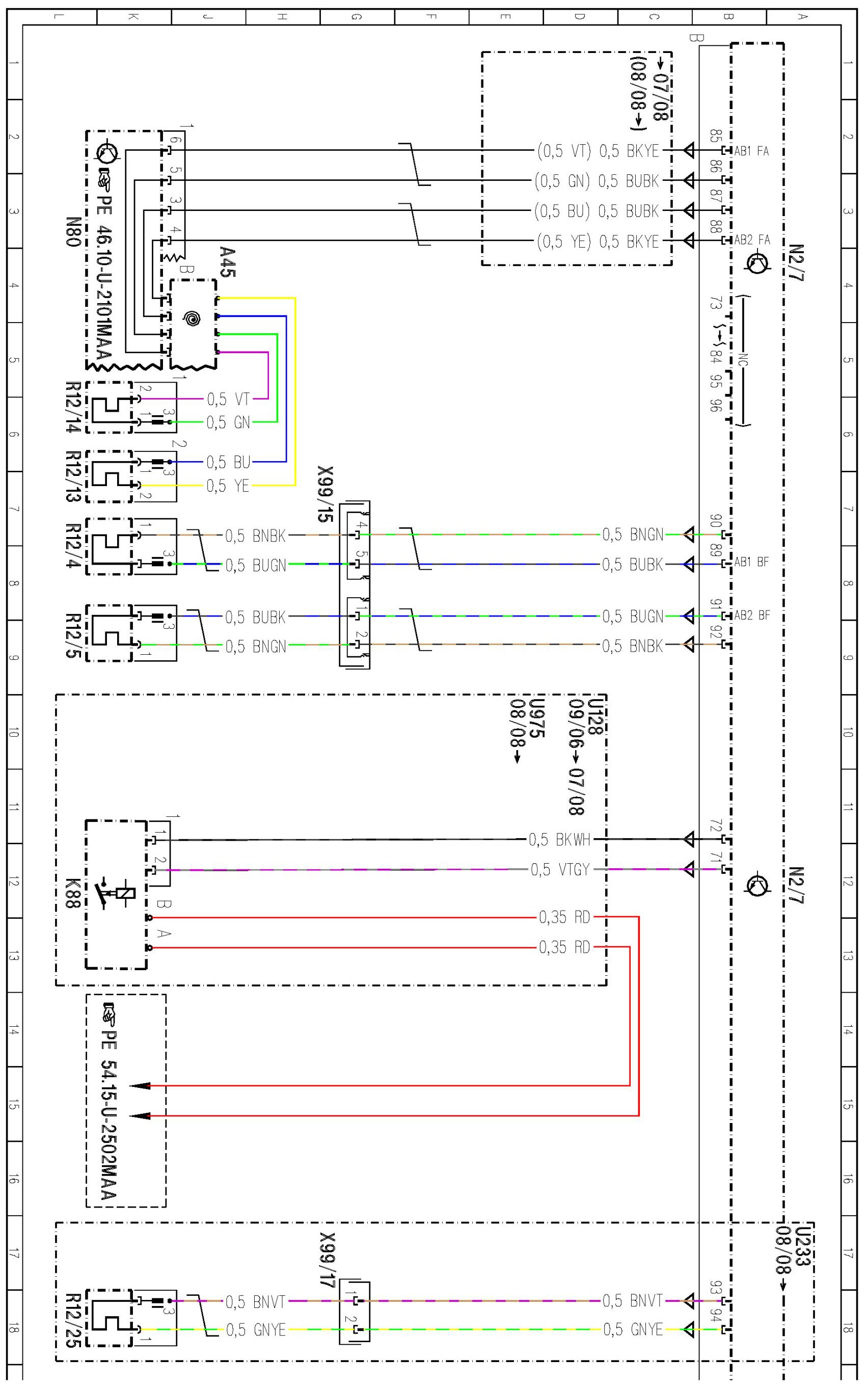

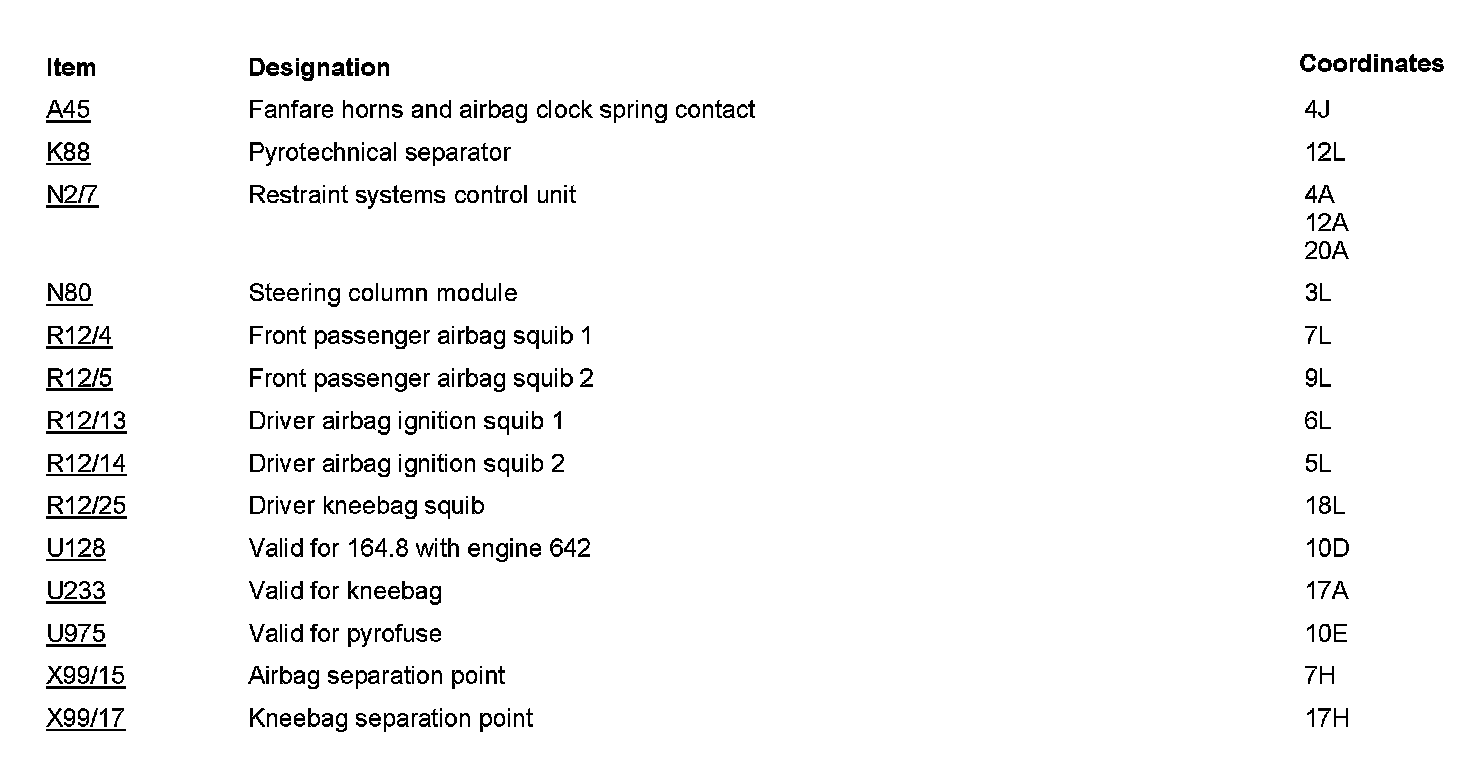

PE91.60-U-2105MAB Airbag Control Unit
- control unit N2/7, sheet 2














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
