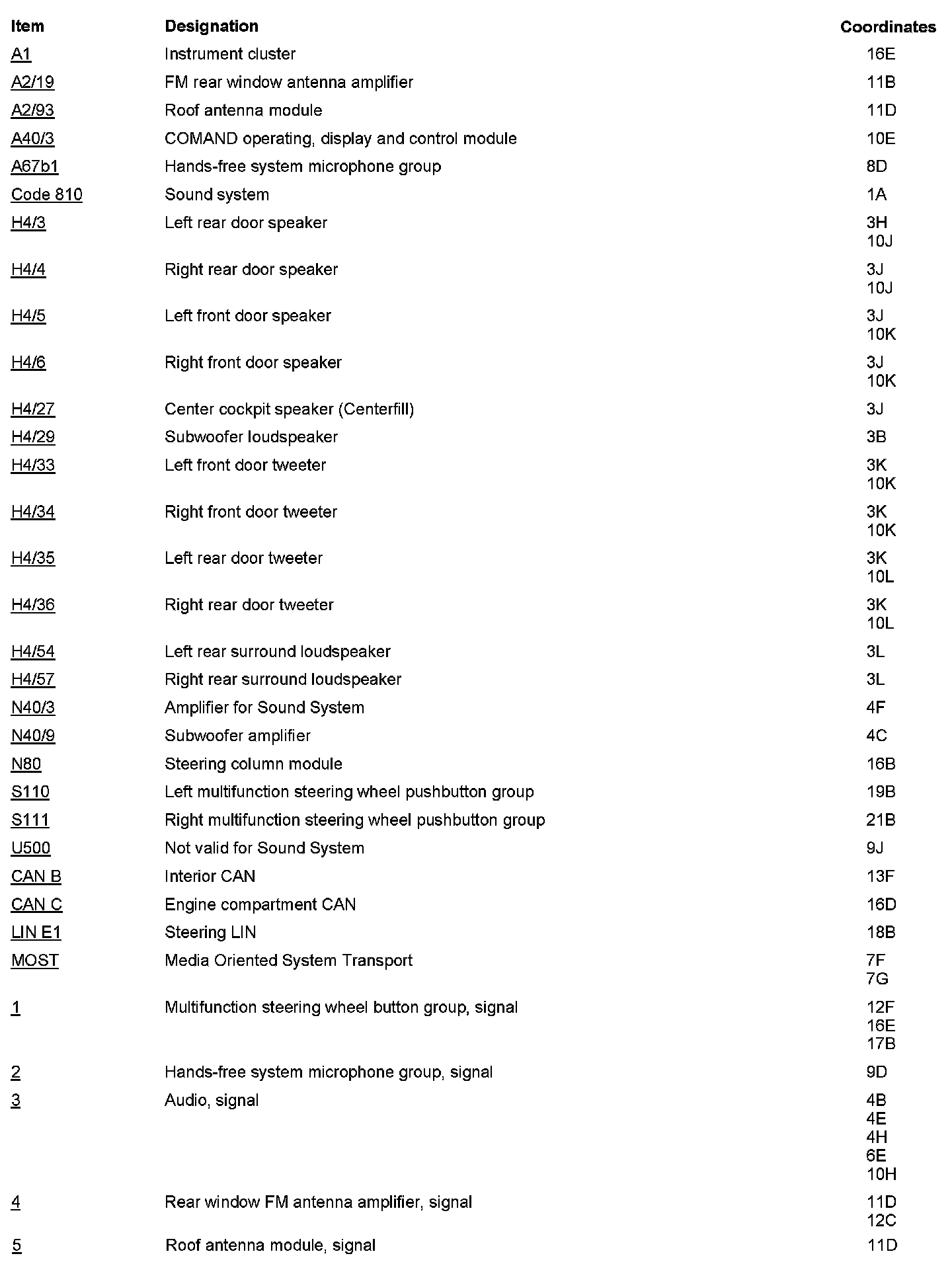

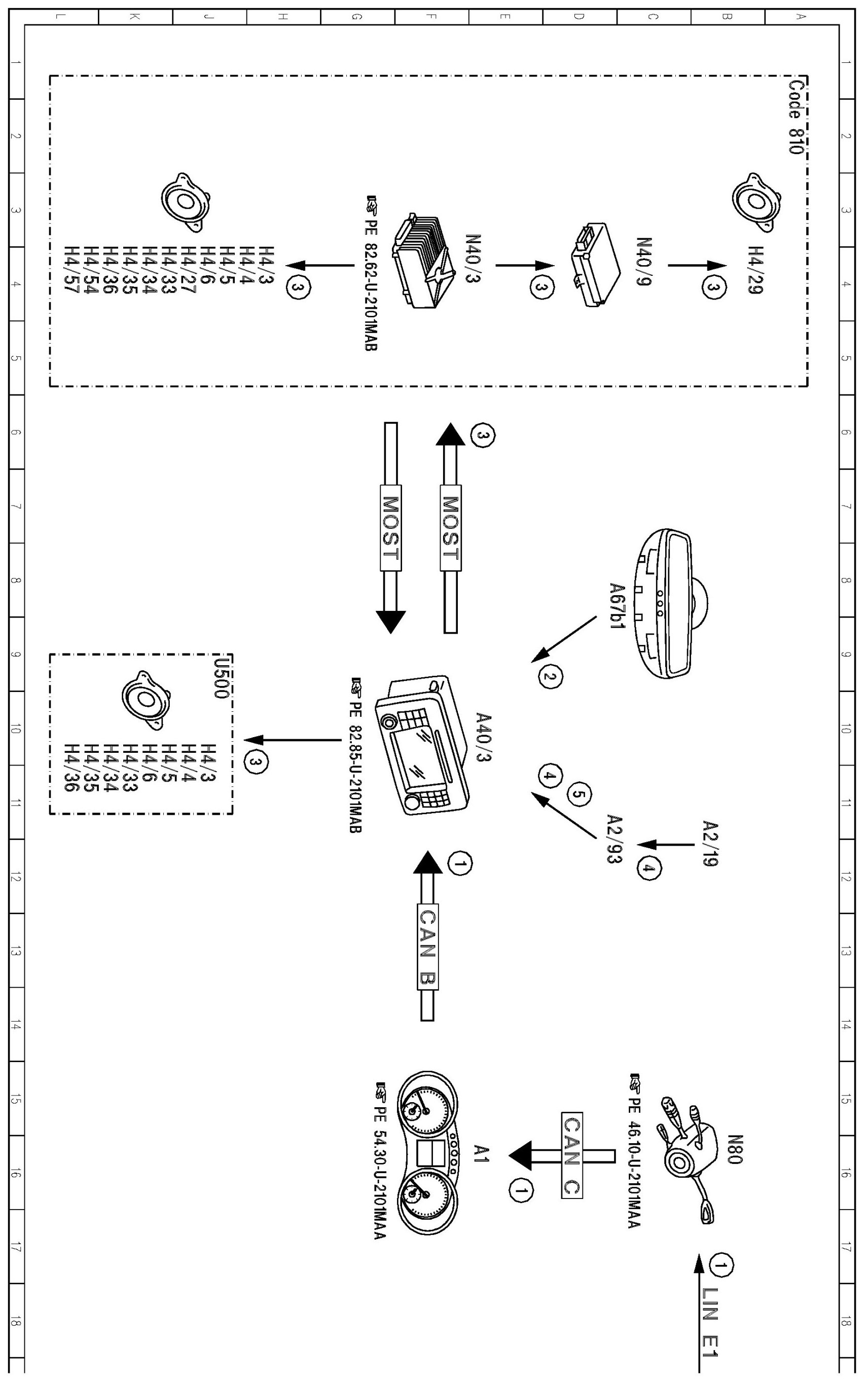

PE82.60-U-2058MAD Electrical Function Schematic For Audio Mode, Function



PE82.60-U-2058MAD Electrical Function Schematic For Audio Mode, Function
- with CODE (528) COMAND with DVD changer
- with CODE (512) COMAND APS with DVD changer
