PE82.60-P-2058MAC Electrical Function Diagram for Audio Mode, Function

Electrical Function Diagram for Audio Mode, Function PE82.60-P-2058MAC
- with CODE (525) MB Audio 50 radio
- with CODE (511) Audio 50 APS with DVD changer
- refinement package
- as of model year 2009

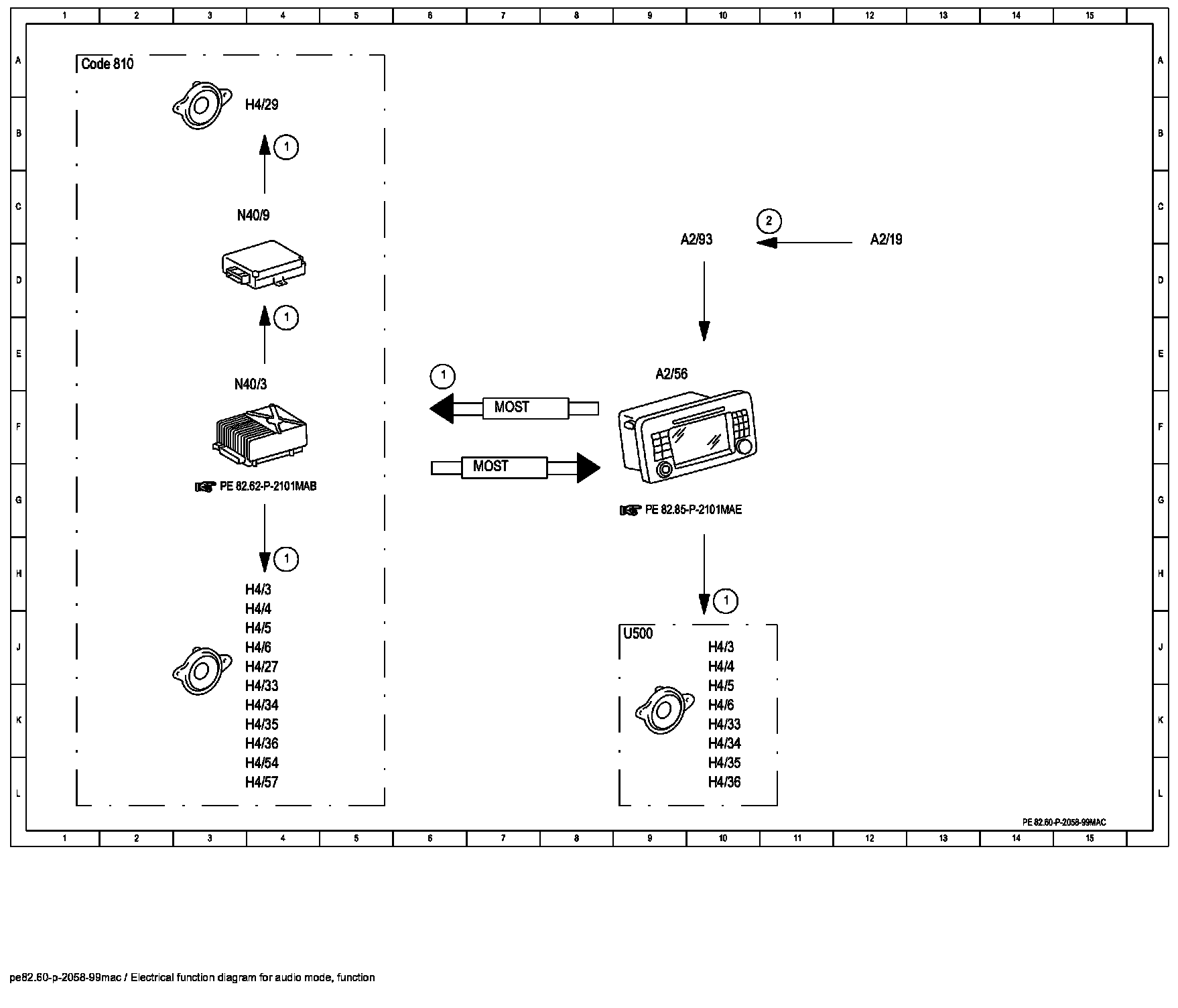

Function Diagram:

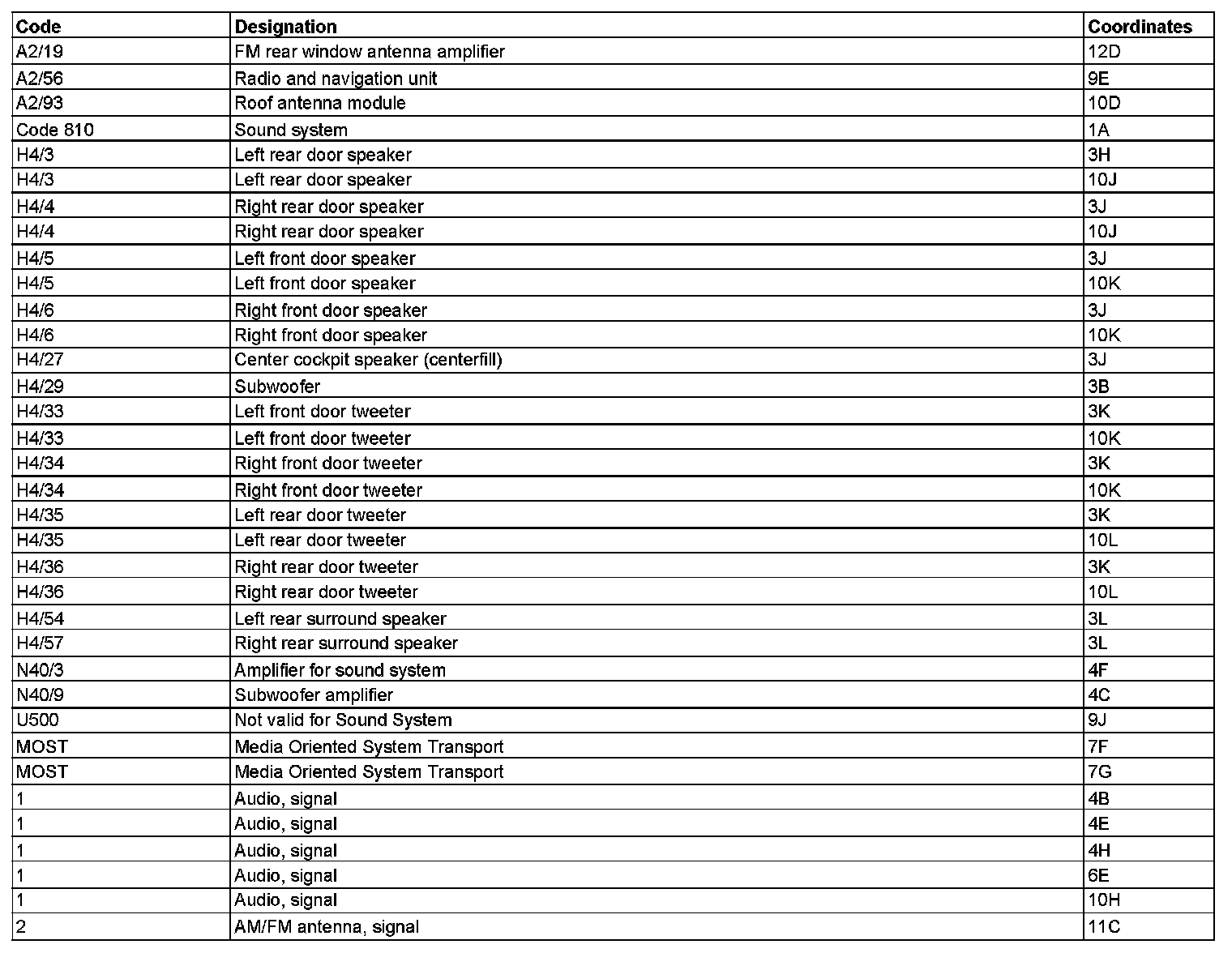

Component Description/Coordinates, A2/19 To 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
