PE82.60-P-2057MAA Electrical Function Diagram for Digital Audio Broadcasting, Function

Electrical Function Diagram for Digital Audio Broadcasting, Function PE82.60-P-2057MAA
- with CODE (537) Digital radio
- refinement package
- as of model year 2009

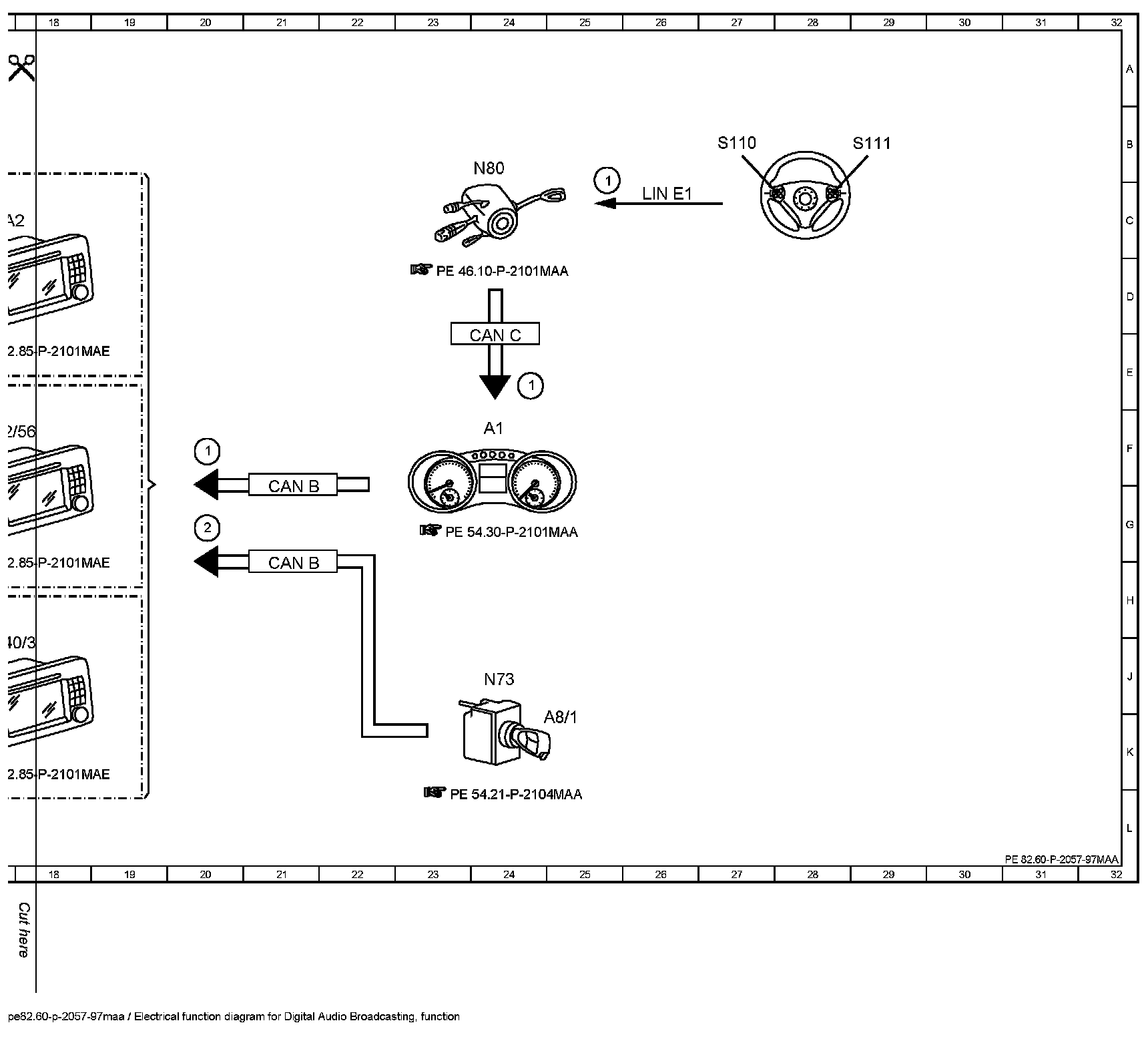

Function Diagram (Part 1):

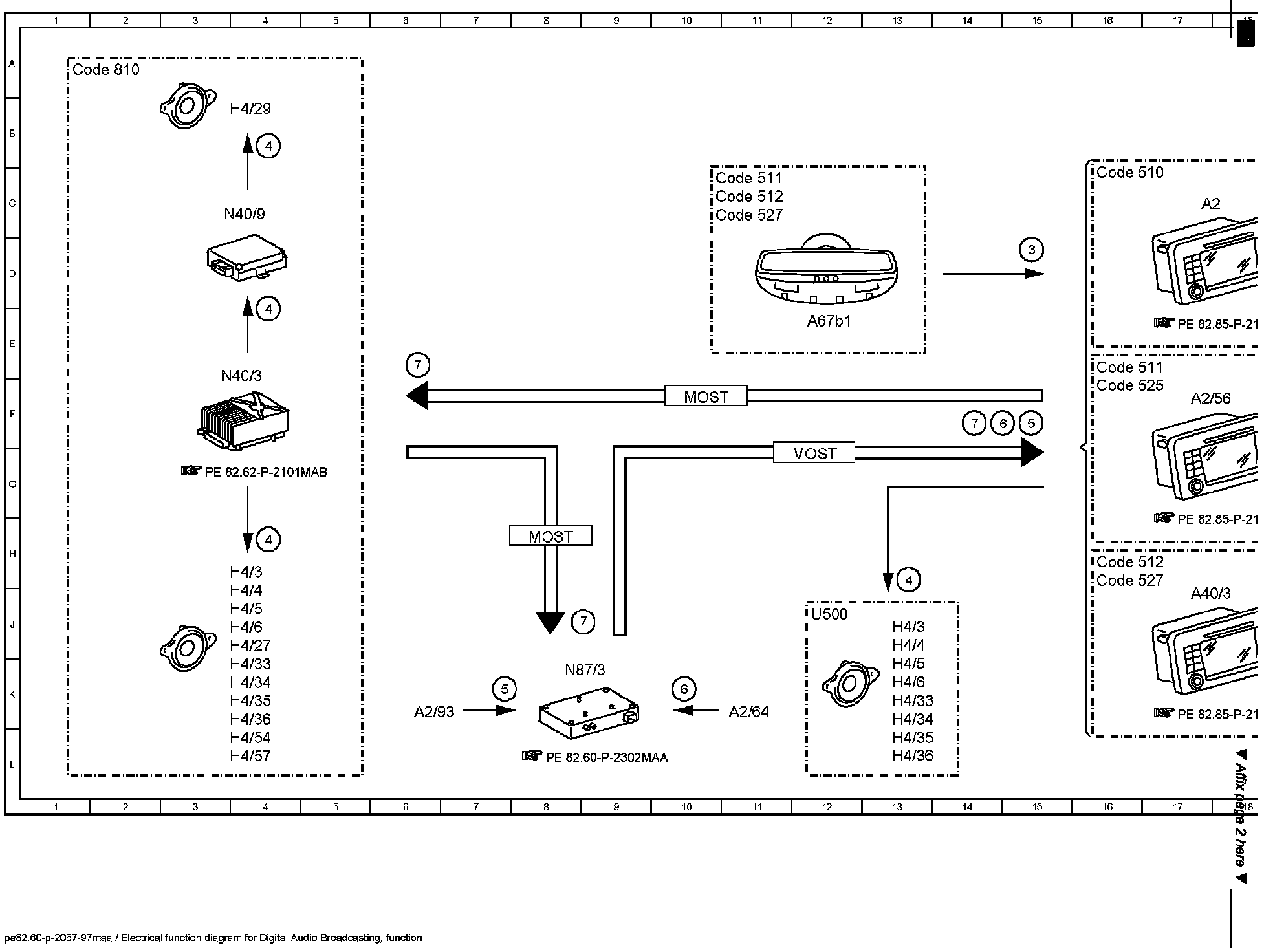

Function Diagram (Part 2):

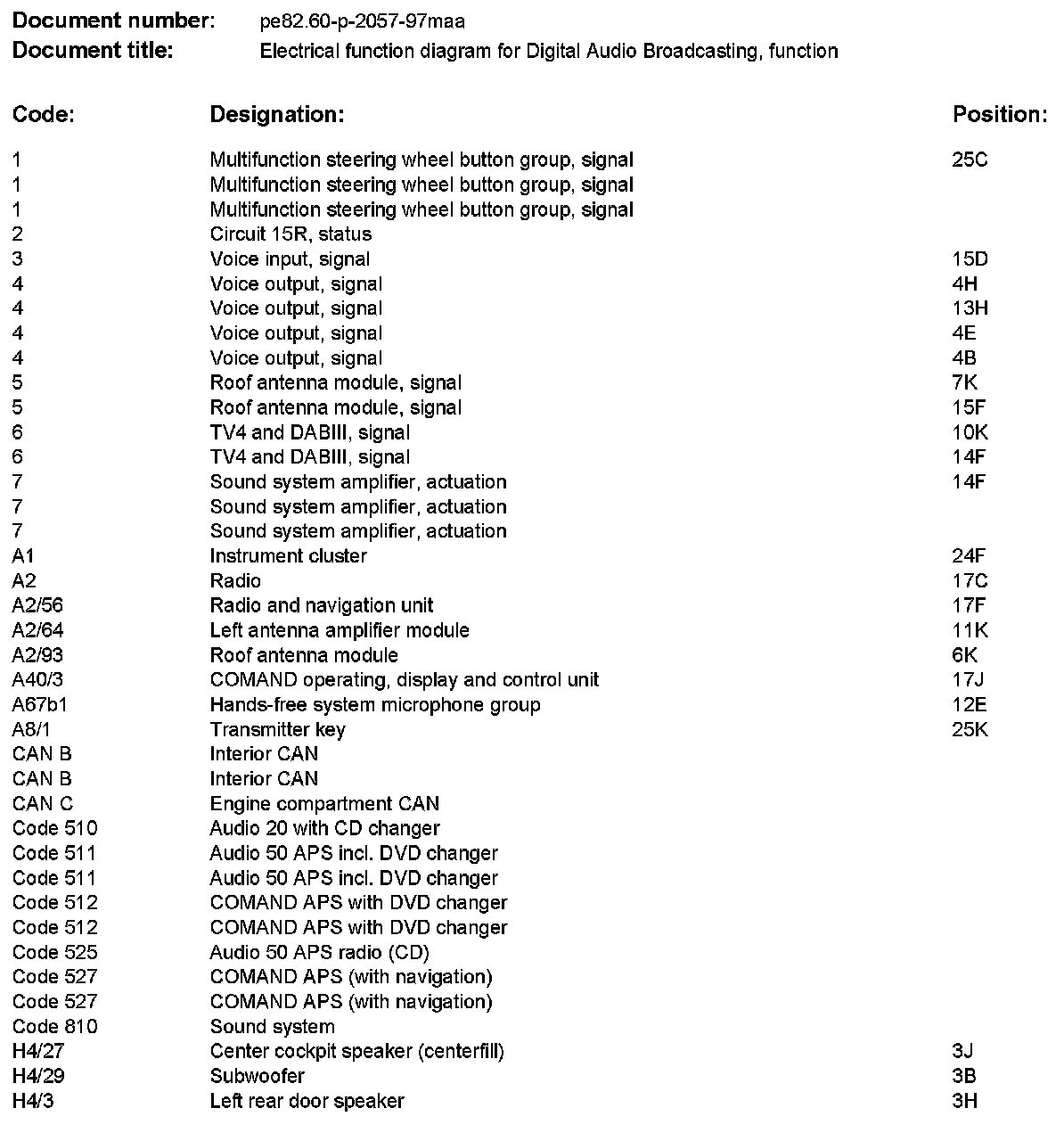

Component Description/Coordinates, 1 To H4/3:

Component Description/Coordinates, H4/3 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
