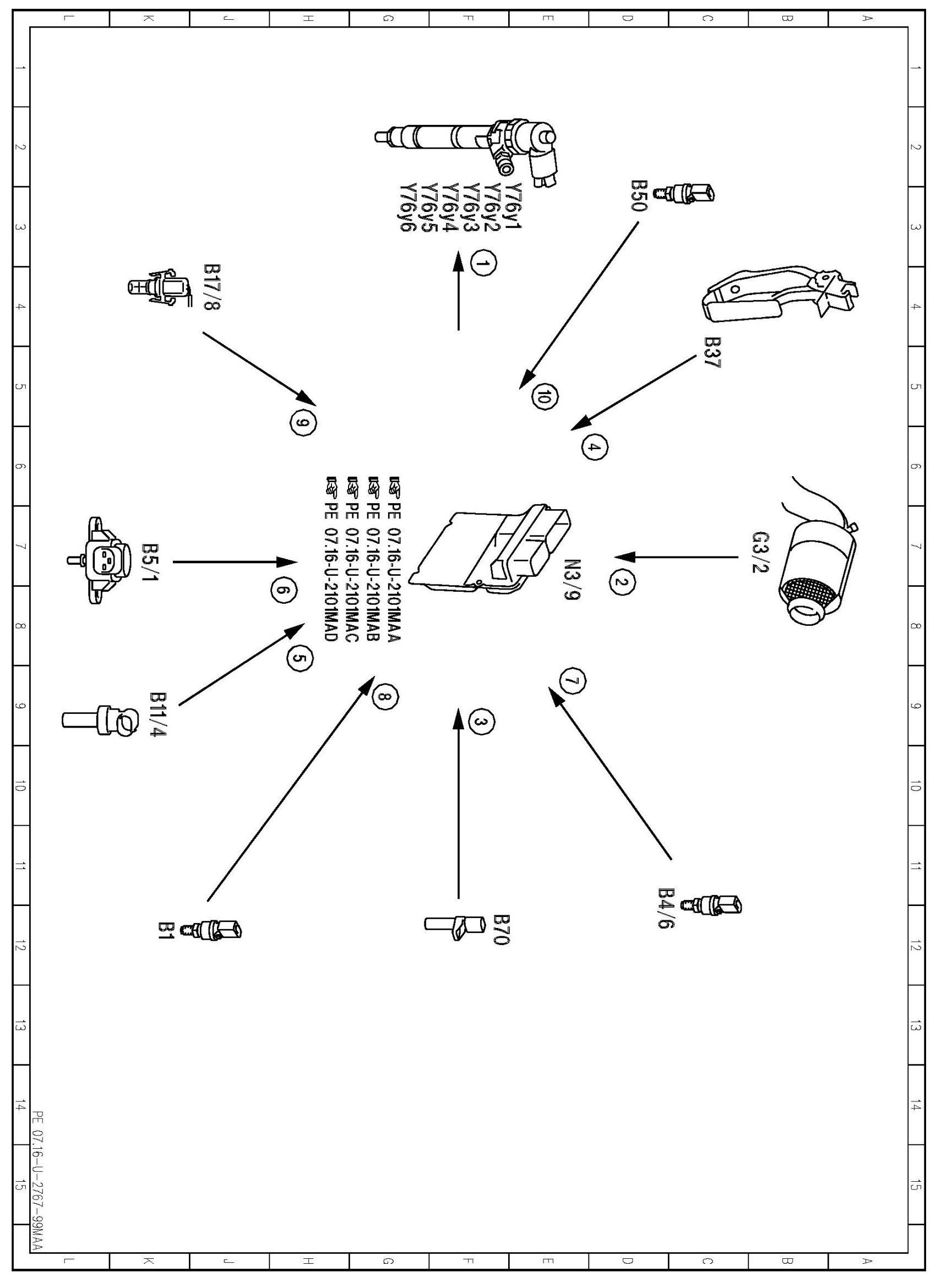

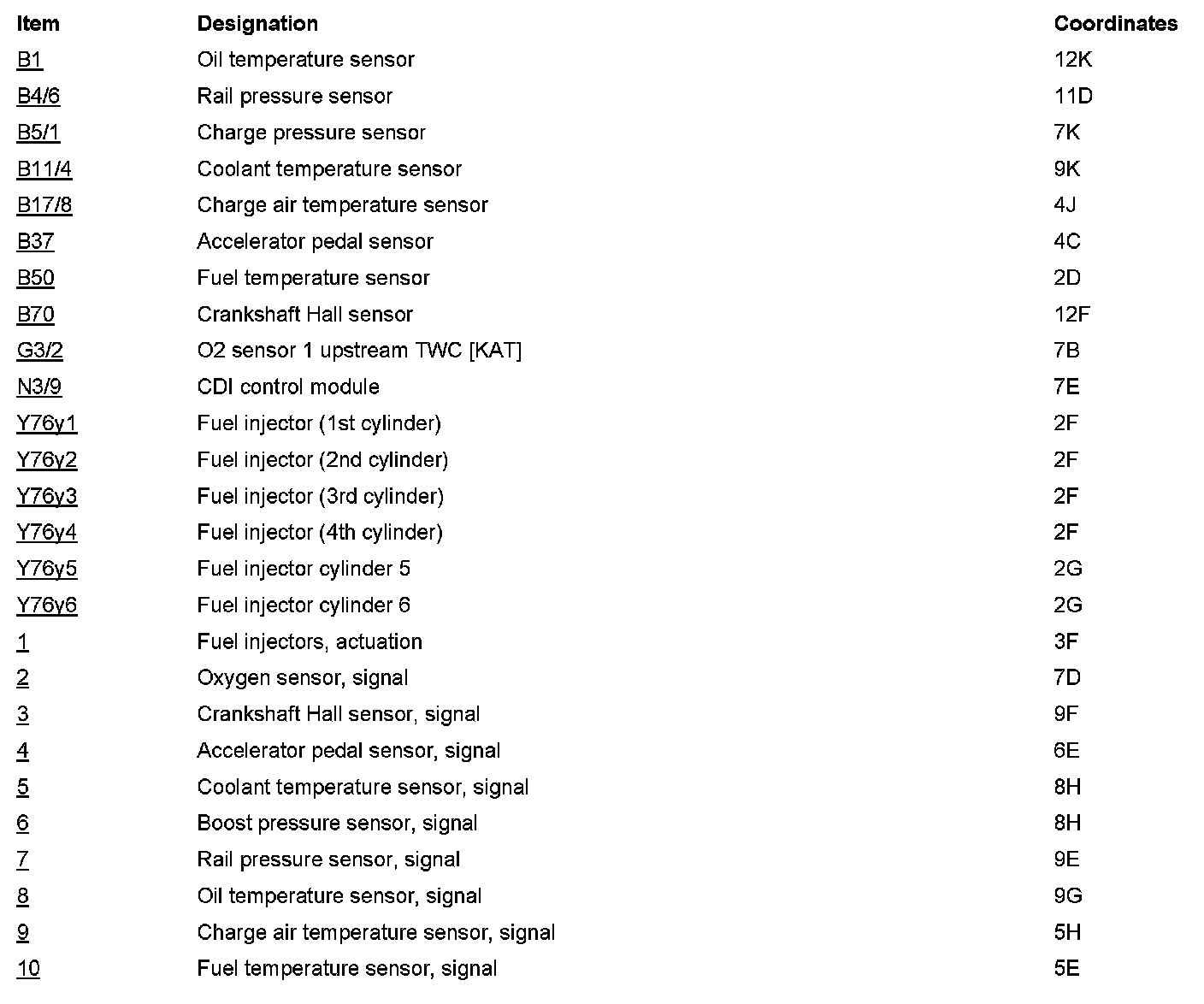

PE07.16-U-2767MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Zero Quantity Calibration



PE07.16-U-2767MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Zero Quantity Calibration
- CODE (U42) BlueTEC diesel exhaust treatment (SCR) as of Model Year 2009










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
