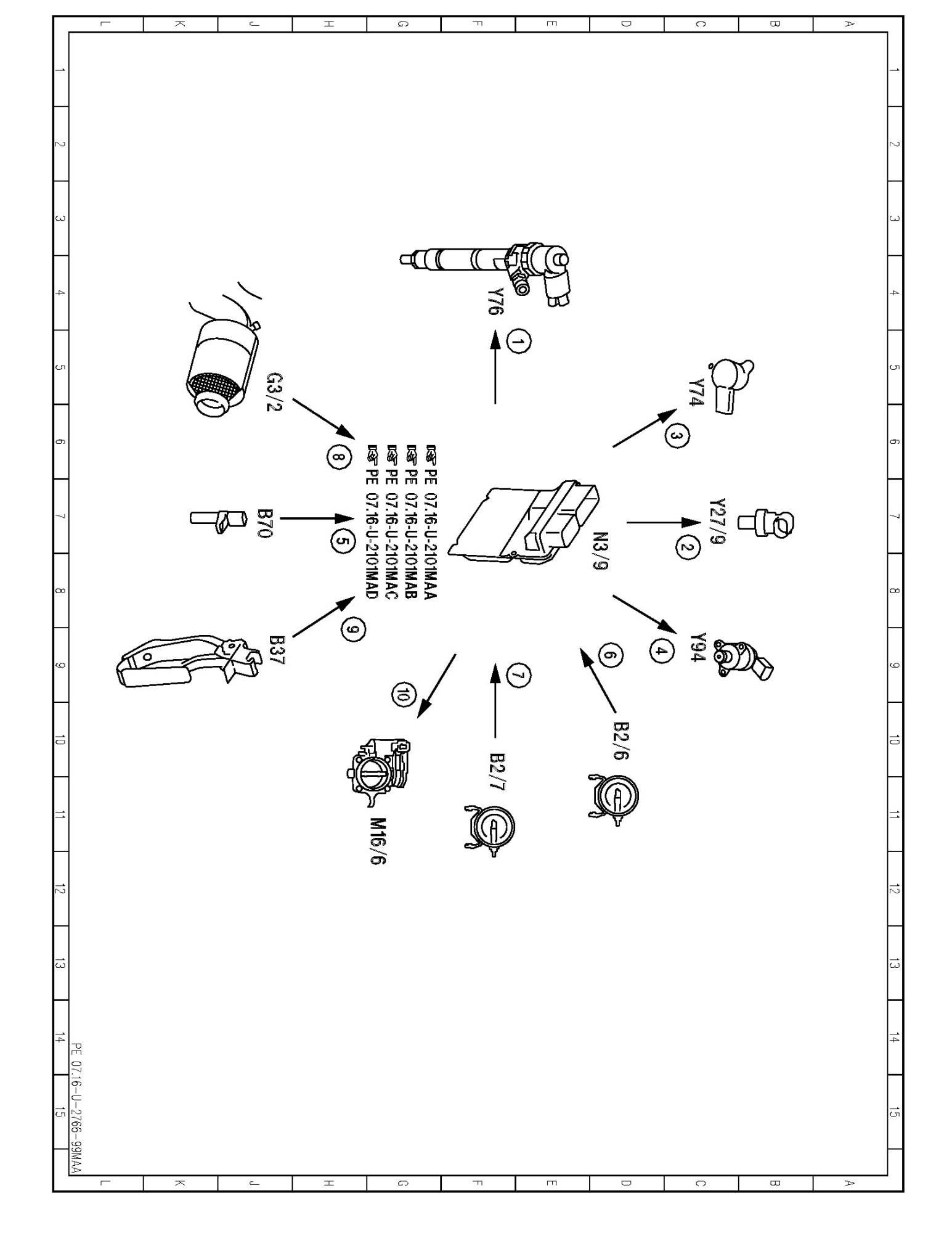

PE07.16-U-2766MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Sliding Operation, Mean Quantity Adaption
- with CODE (U42) BLUETEC diesel exhaust treatment (SCR)

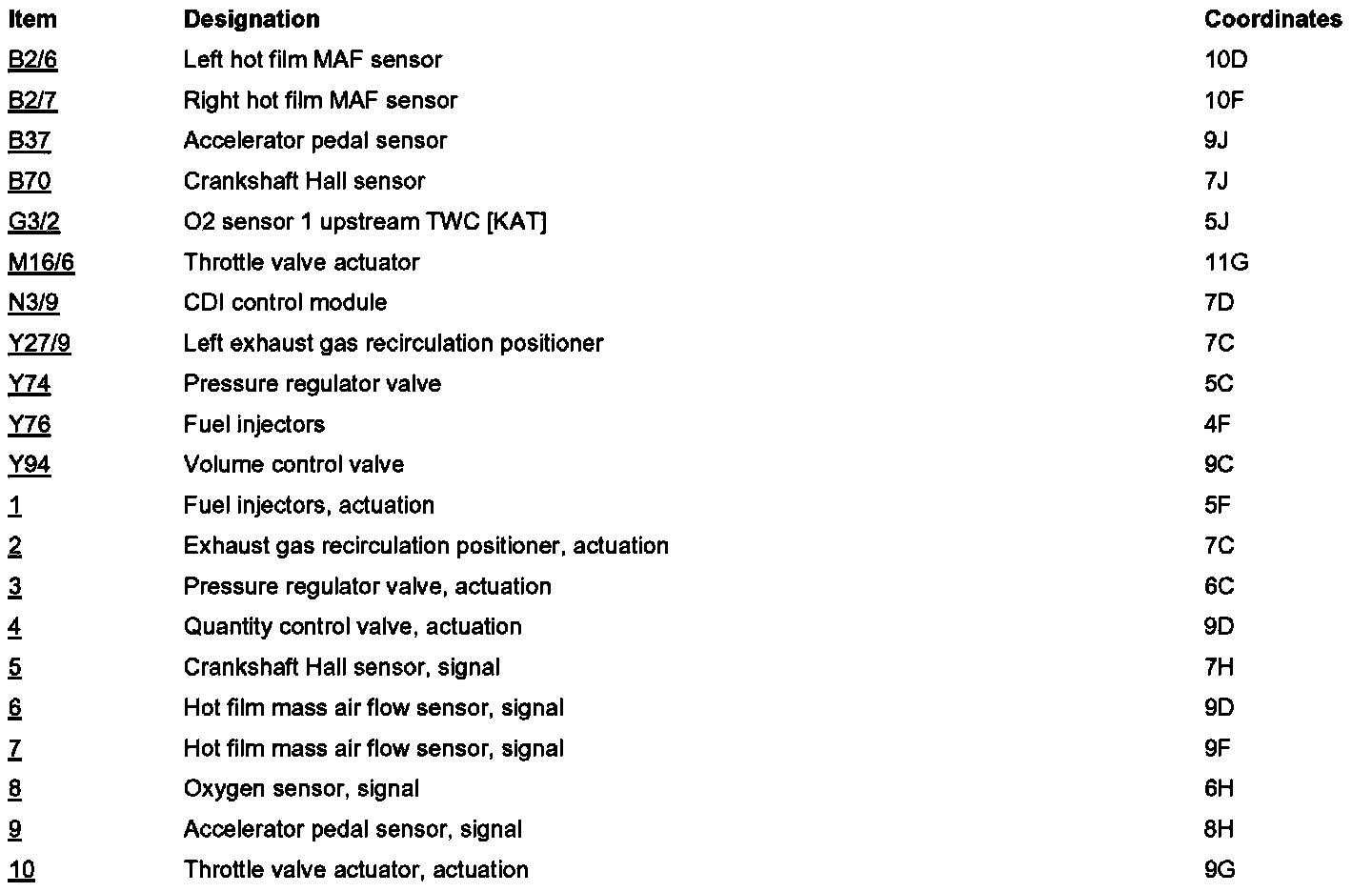

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
