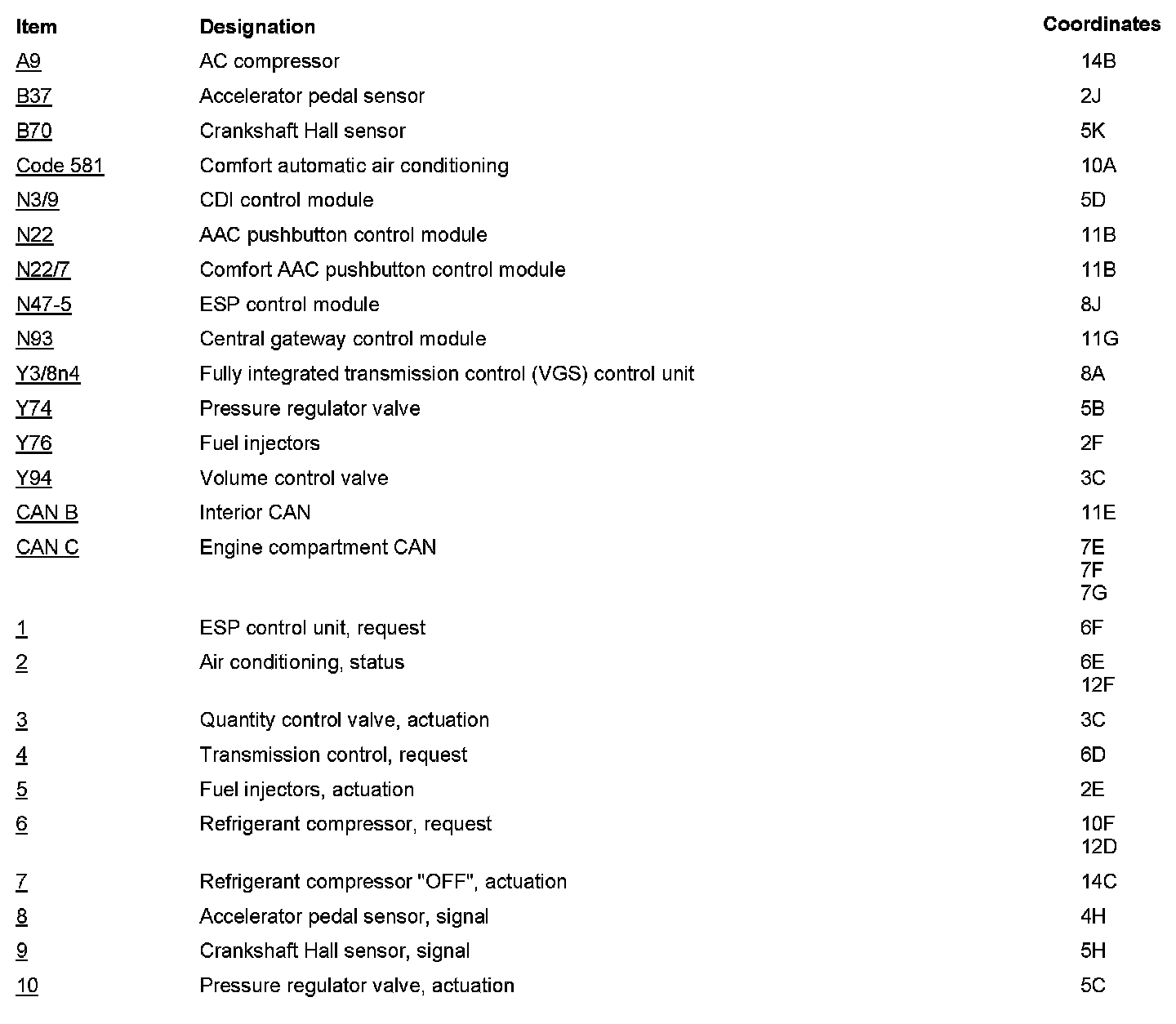

PE07.16-U-2765MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Engine Torque Requirement

PE07.16-U-2765MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Engine Torque Requirement
- CODE (U42) BlueTEC diesel exhaust treatment (SCR) as of Model Year 2009










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
