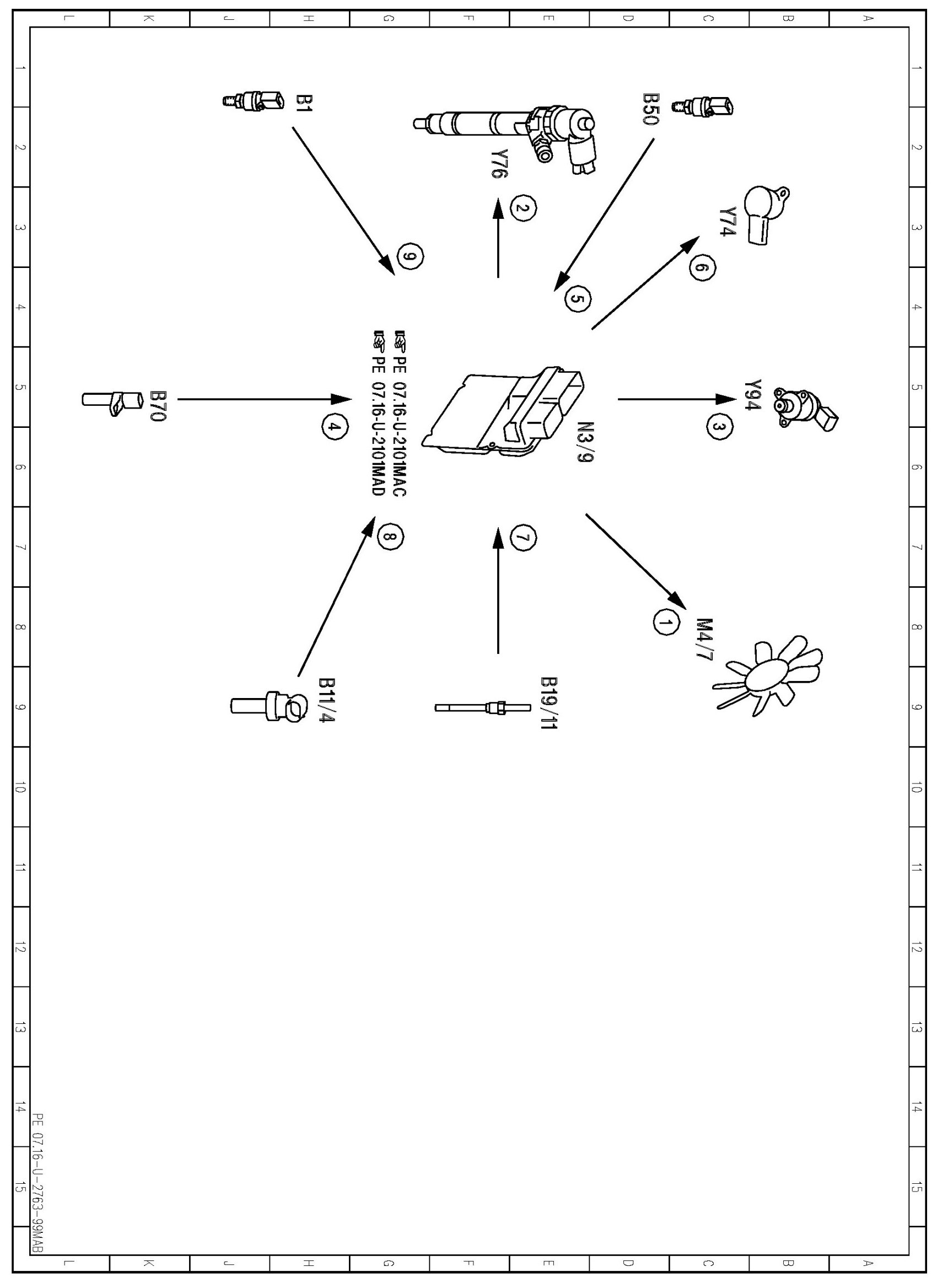

PE07.16-U-2763MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Heat Management

PE07.16-U-2763MAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Heat Management
- CODE (U42) BlueTEC diesel exhaust treatment (SCR) as of Model Year 2009

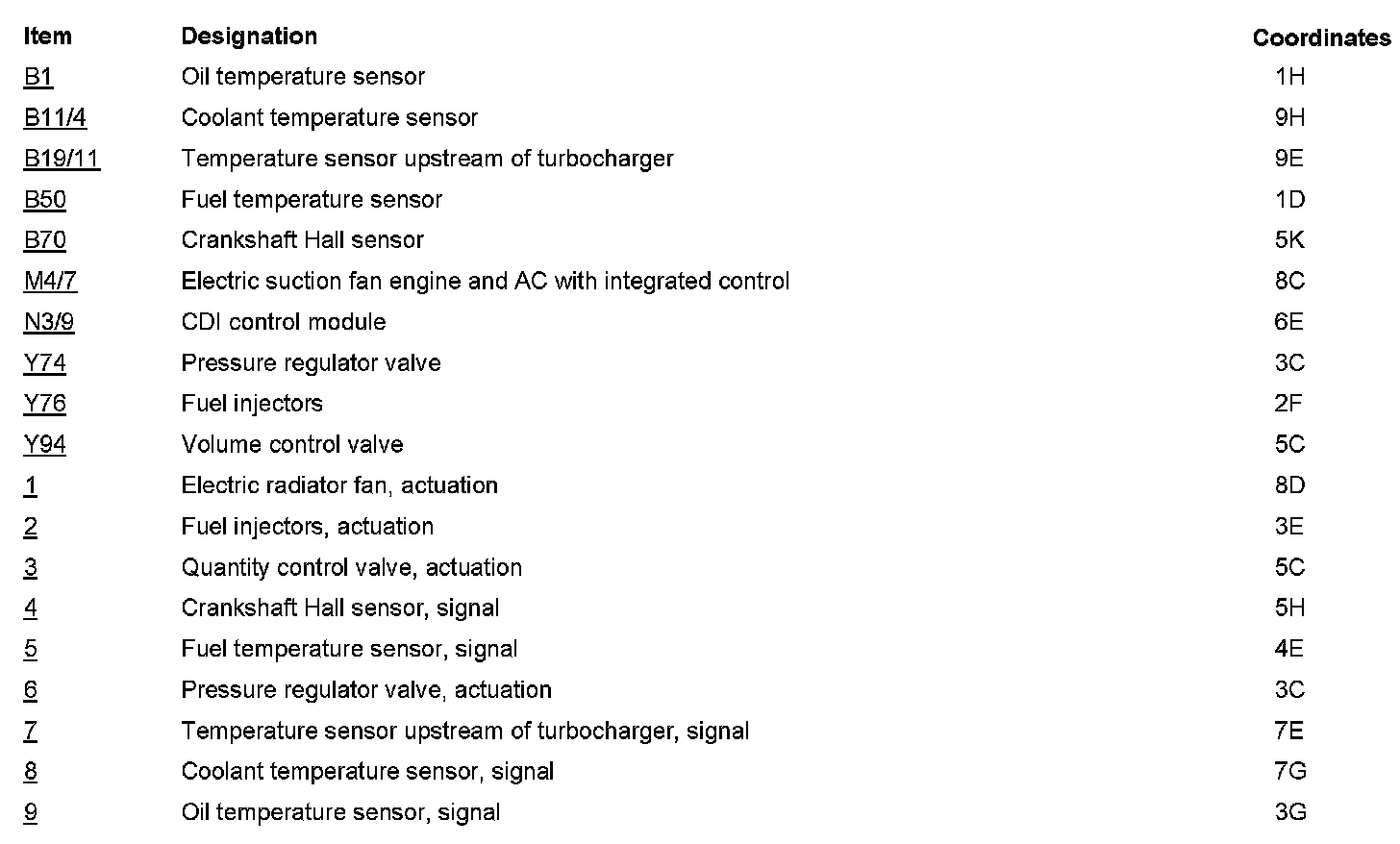

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
