Home >> Mercedes Benz Truck >> 2009 >> ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Function Diagrams >> PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation

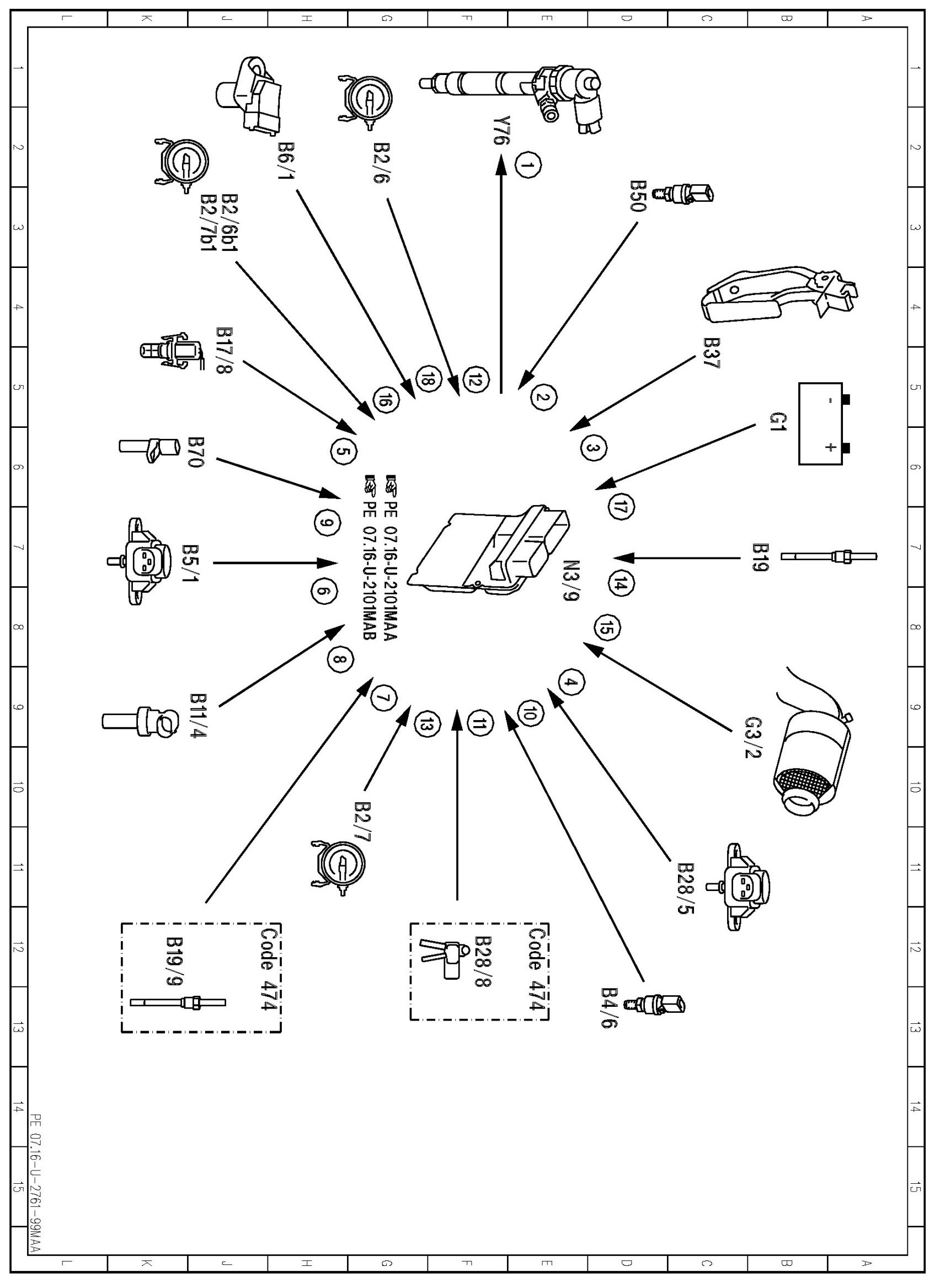

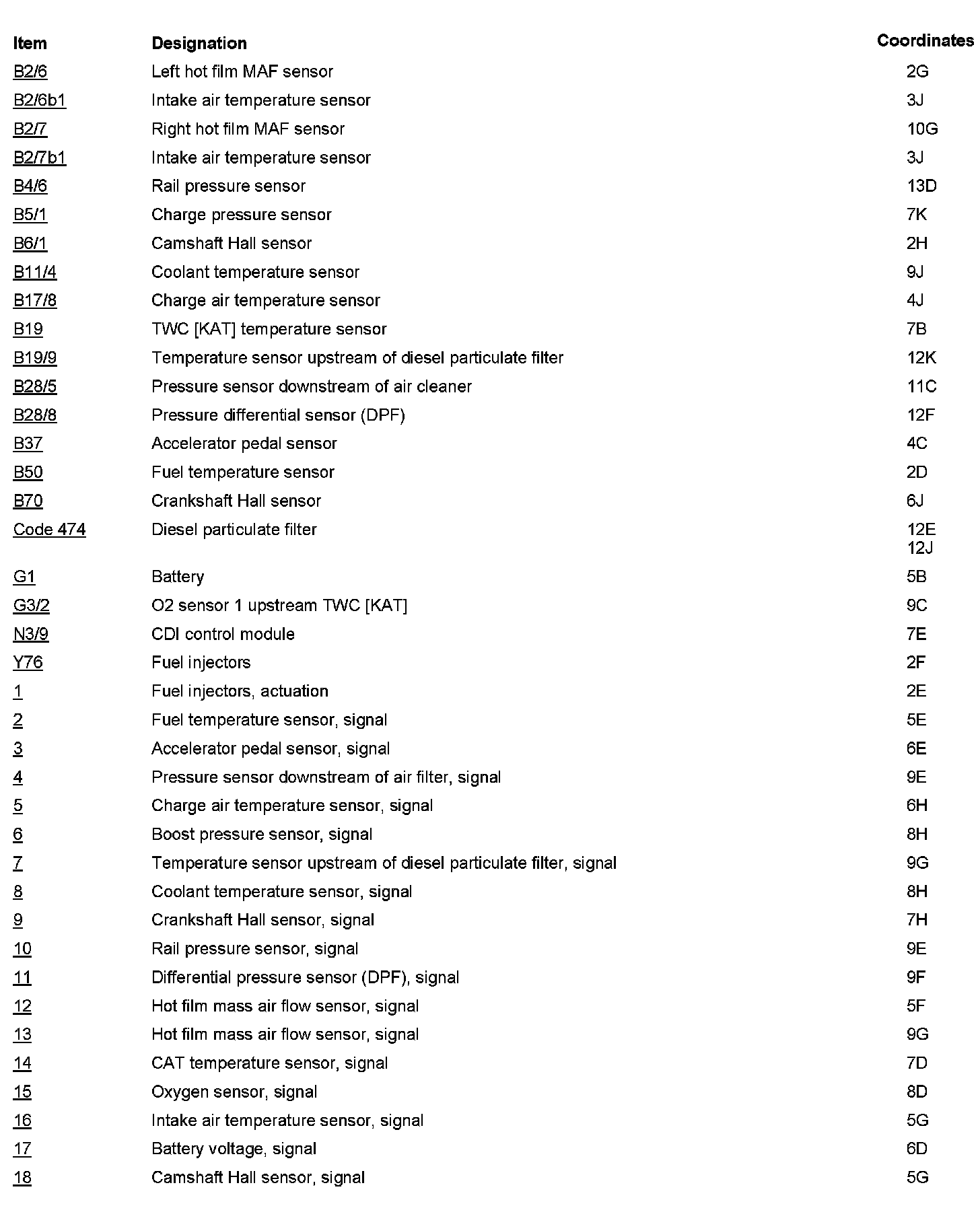

PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation



PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
