PE07.16-P-2101MAE Wiring Diagram for Common Rail Diesel Injection (CDI) Control Unit

Wiring Diagram for Common Rail Diesel Injection (CDI) Control Unit PE07.16-P-2101MAE
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
- Control unit N3/9
- sheet 1
- refinement package
- as of model year 2009

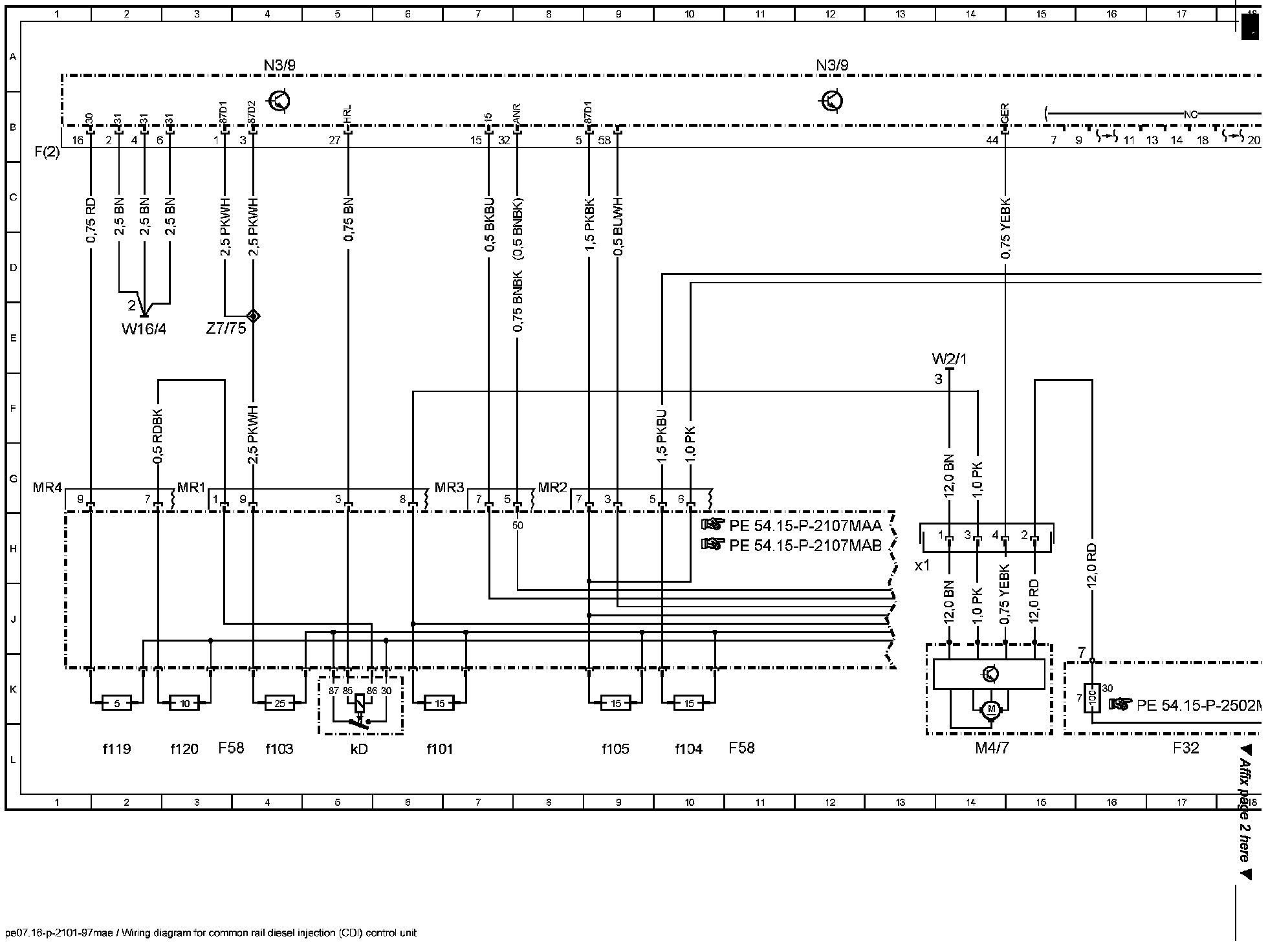

Wiring Diagram (Part 1):

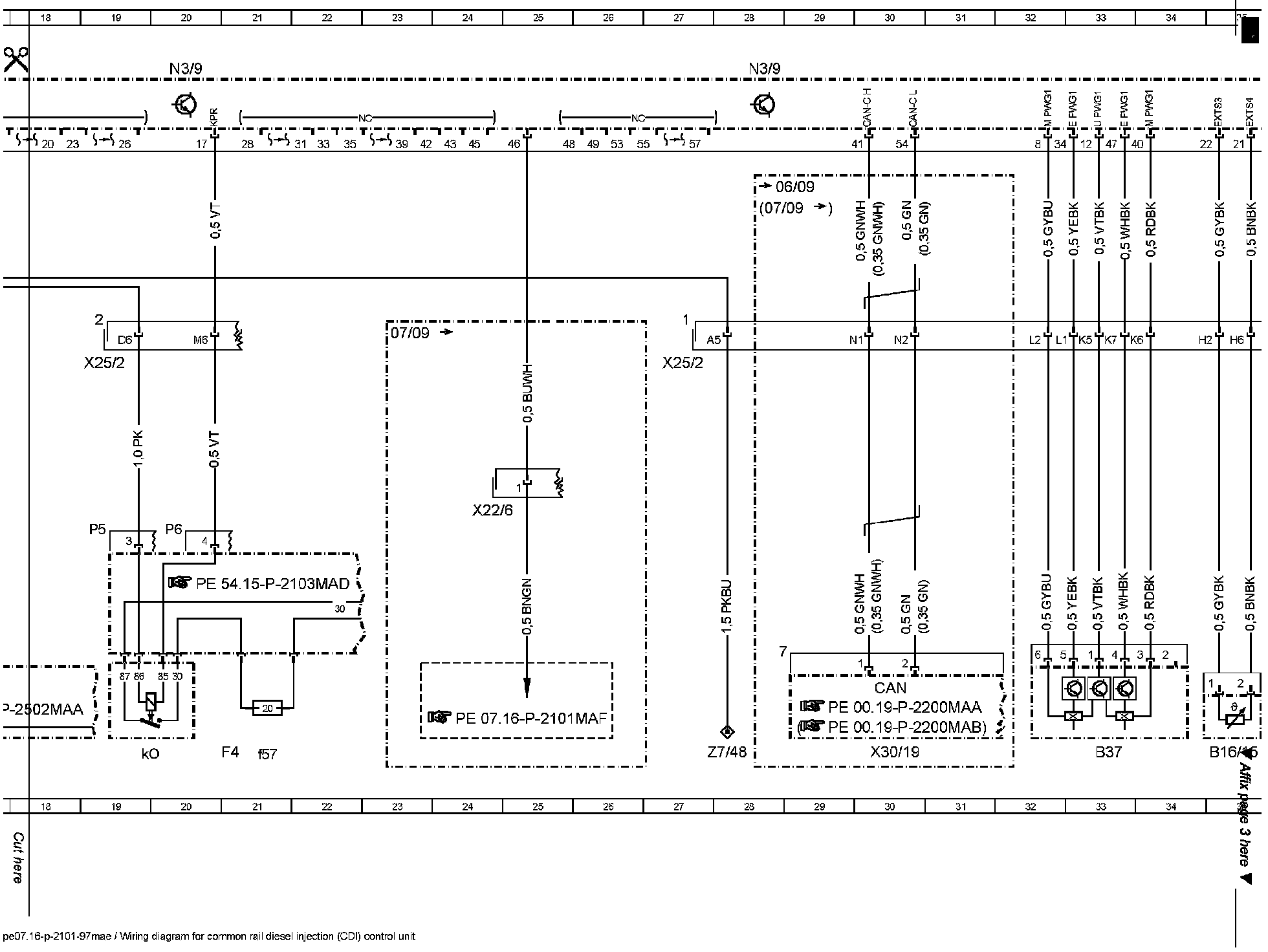

Wiring Diagram (Part 2):

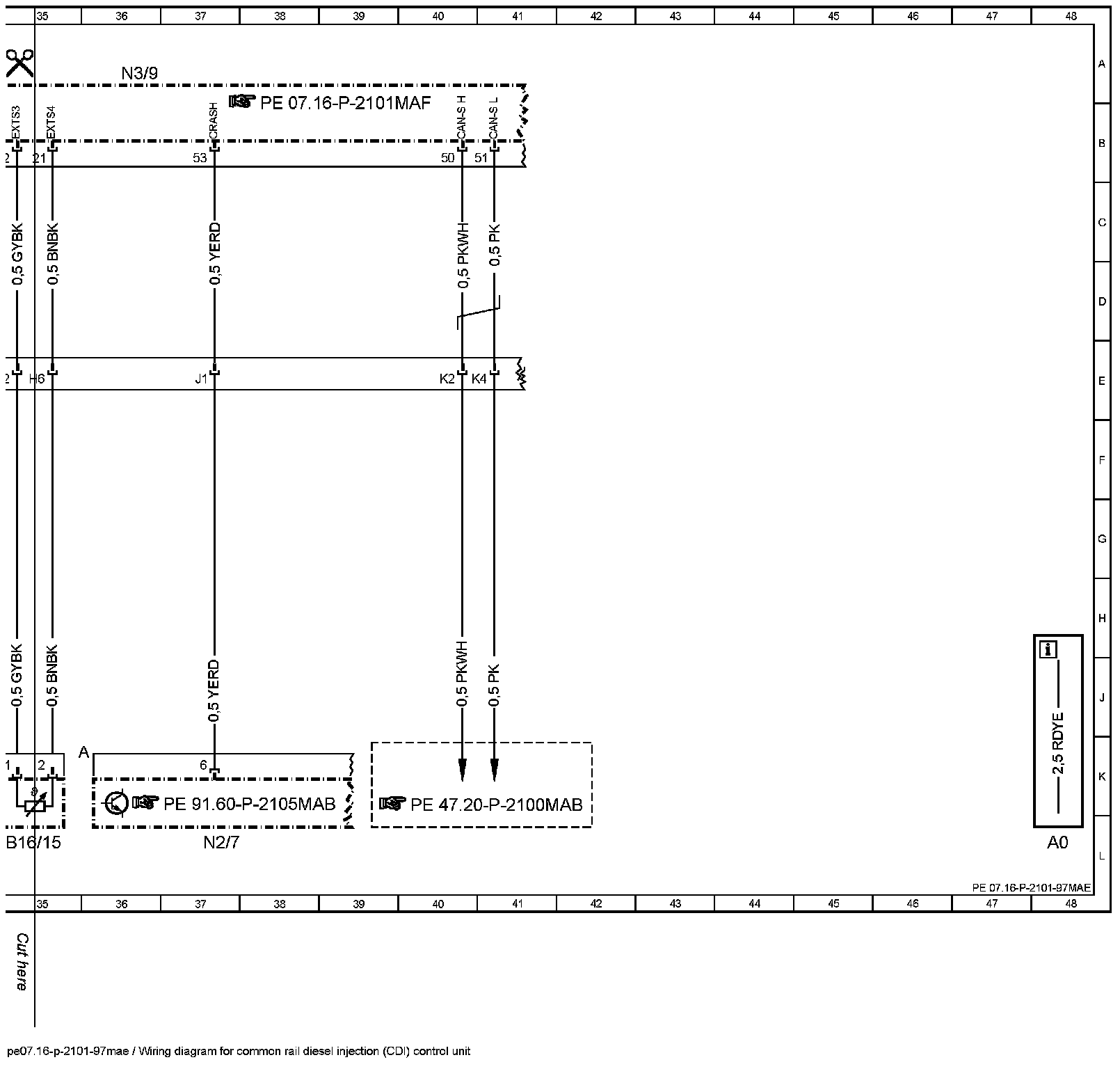

Wiring Diagram (Part 3):

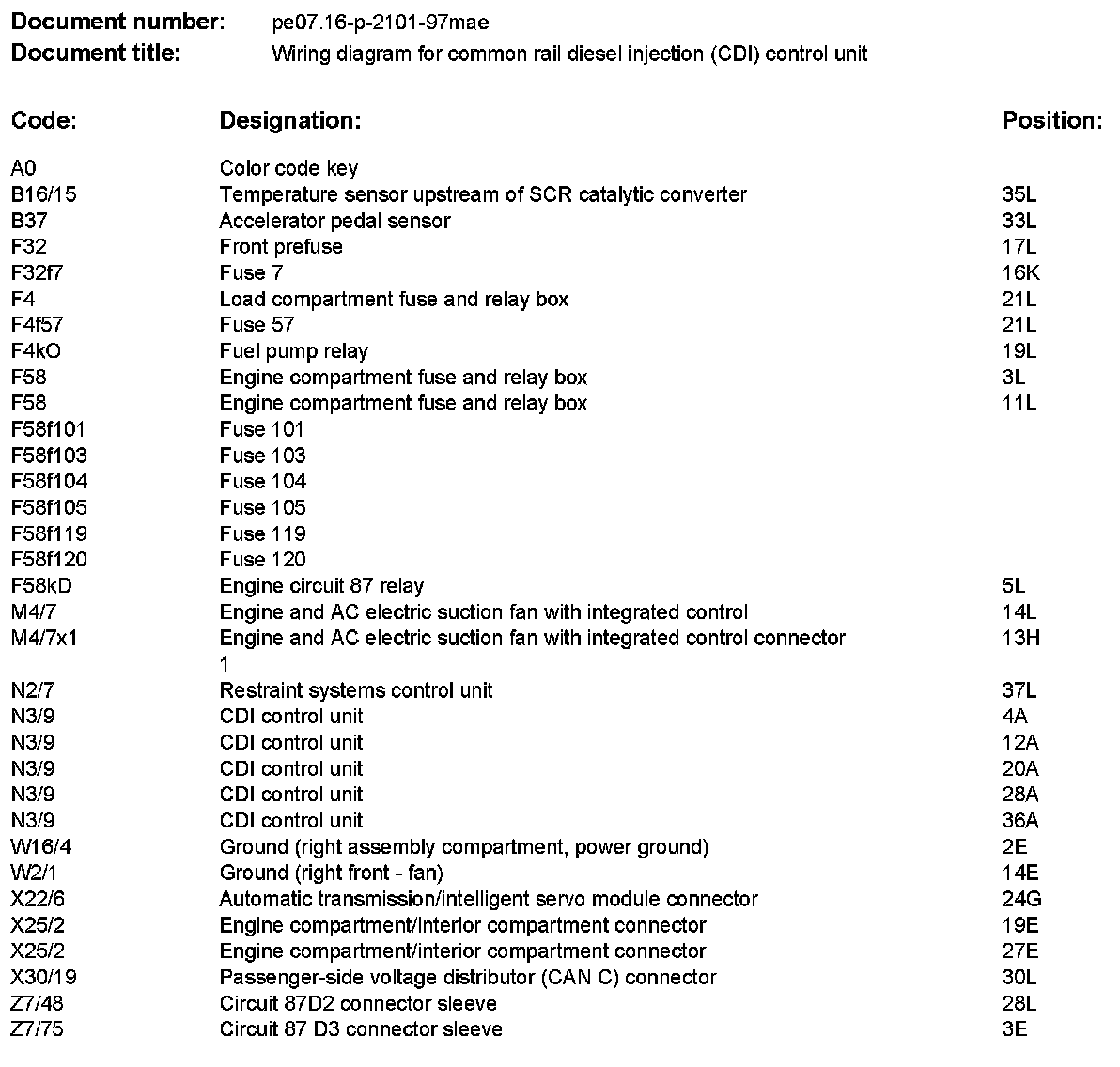

Component Description/Coordinates, A0 To Z7/75:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
