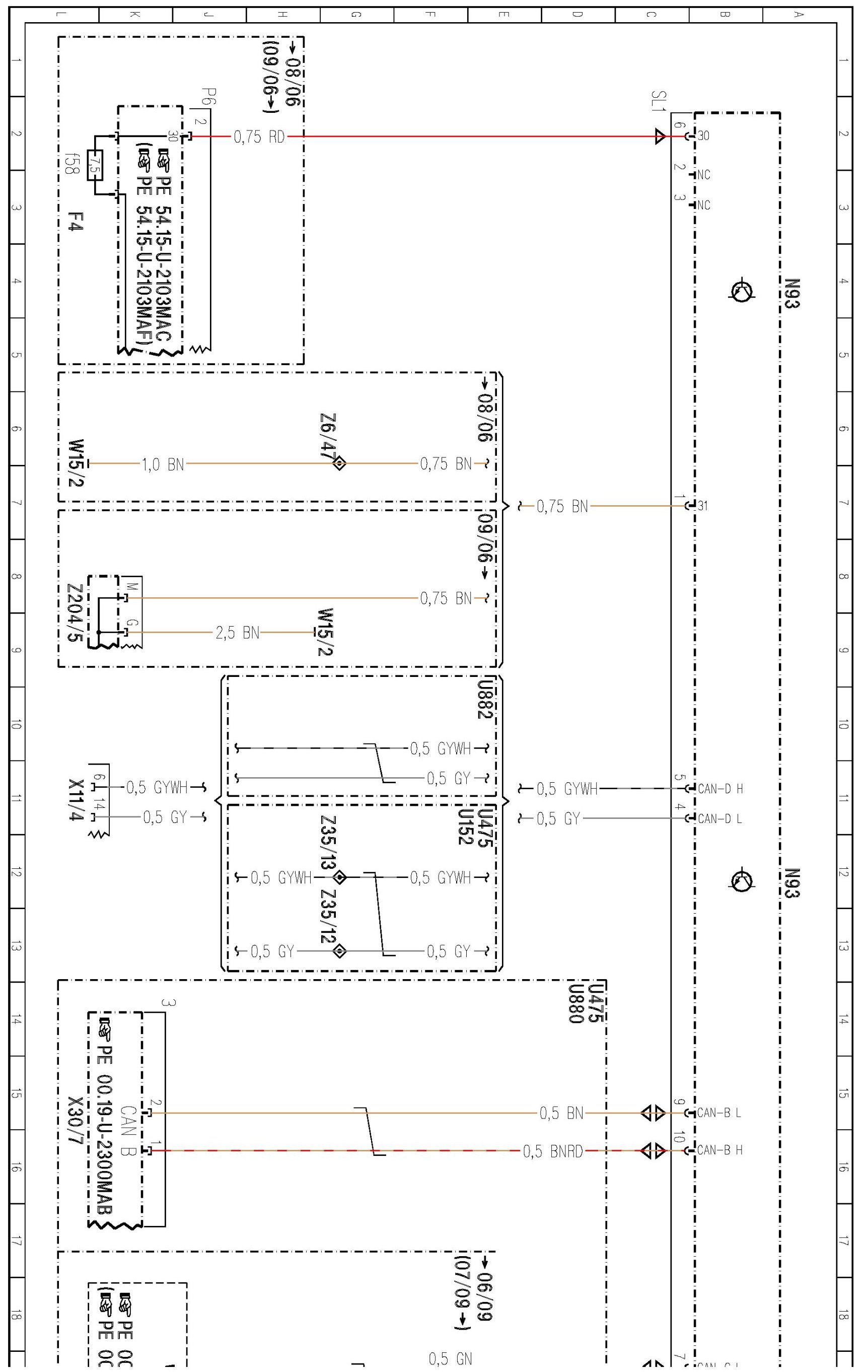

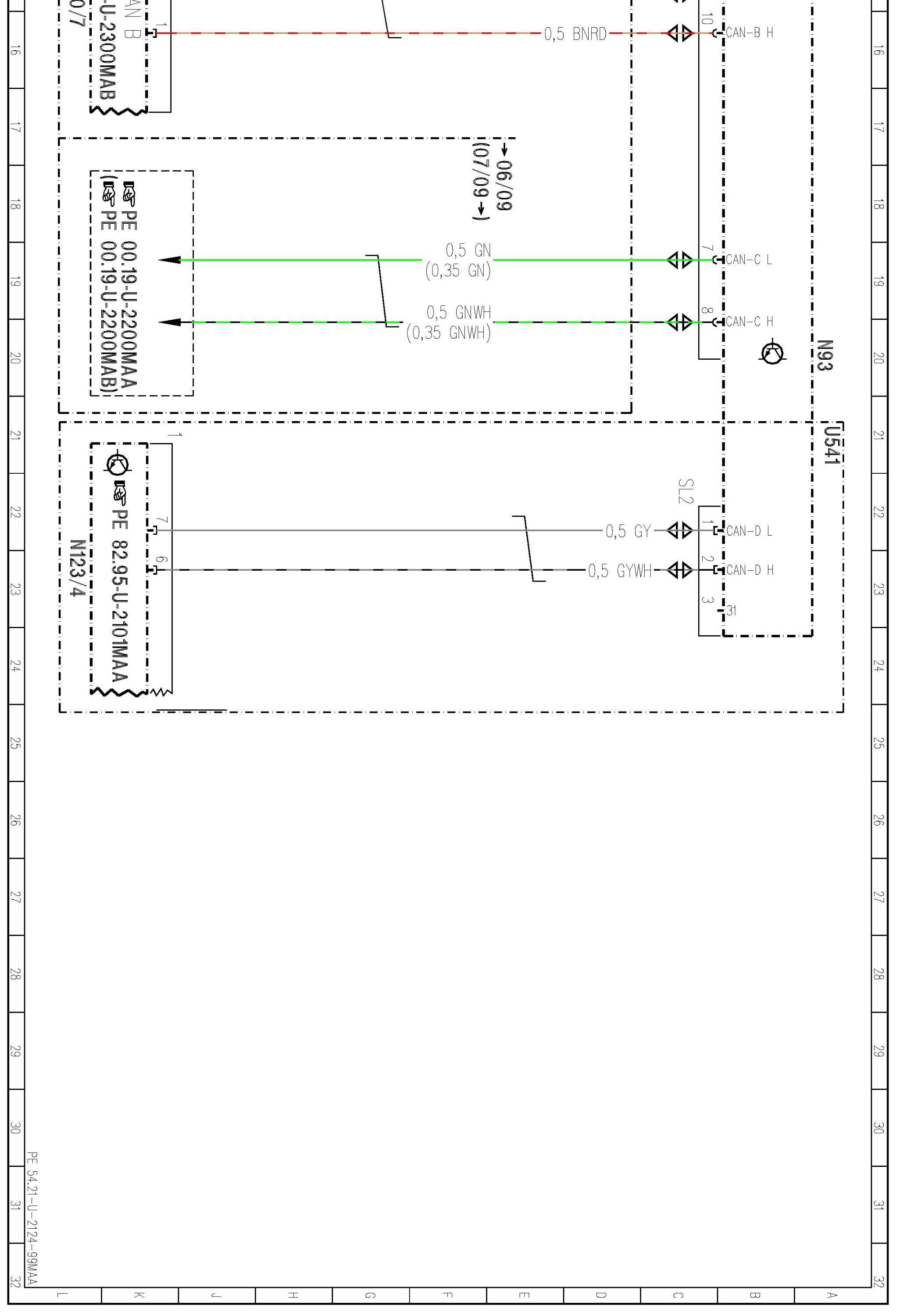

PE54.21-U-2124MAA Central Gateway Control Module



PE54.21-U-2124MAA Central Gateway Control Module

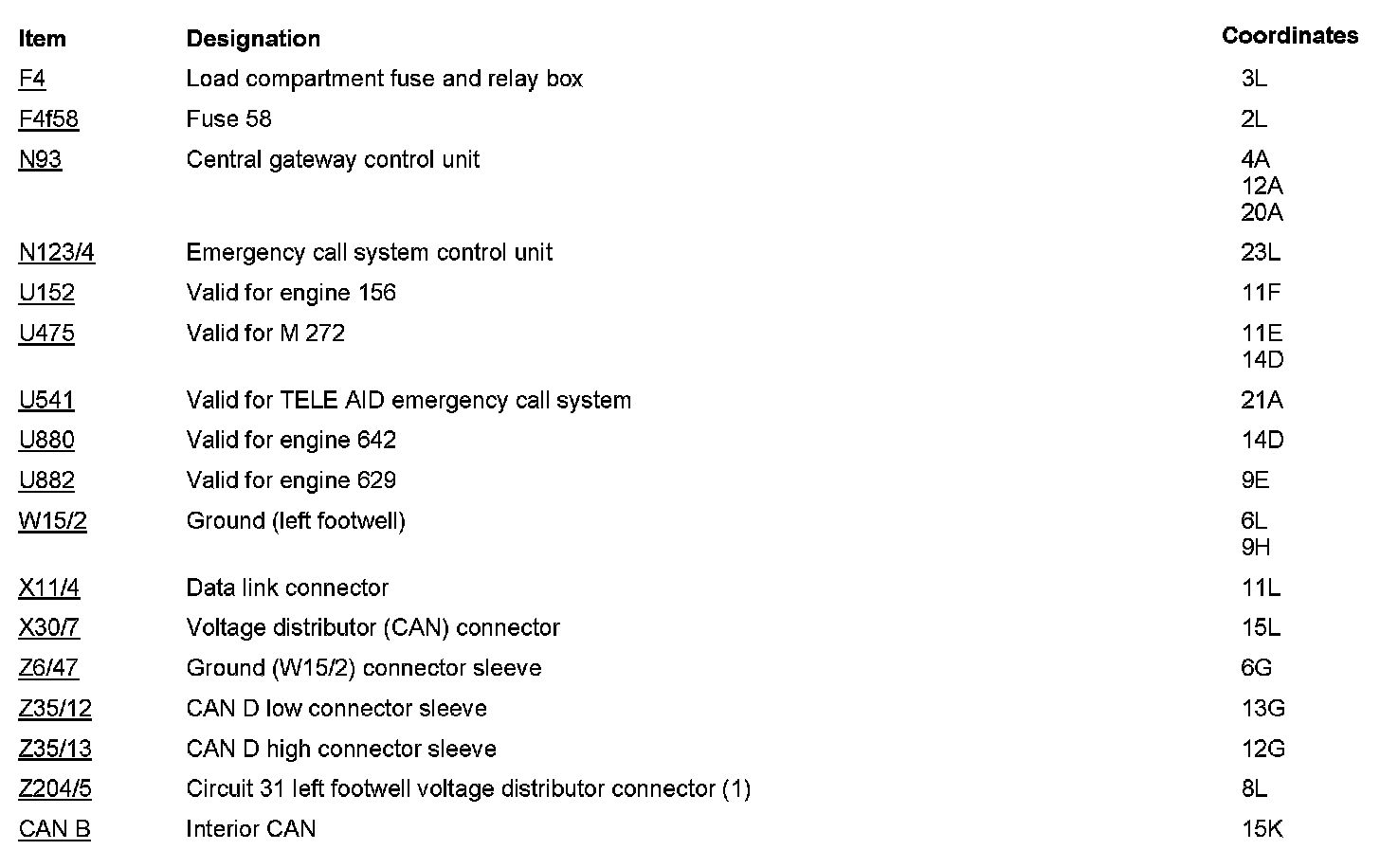

- control unit N93














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
