Home >> Mercedes Benz Truck >> 2009 >> ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Glow Plug System >> Function Diagrams >> PE15.20-U-2050MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Glowing

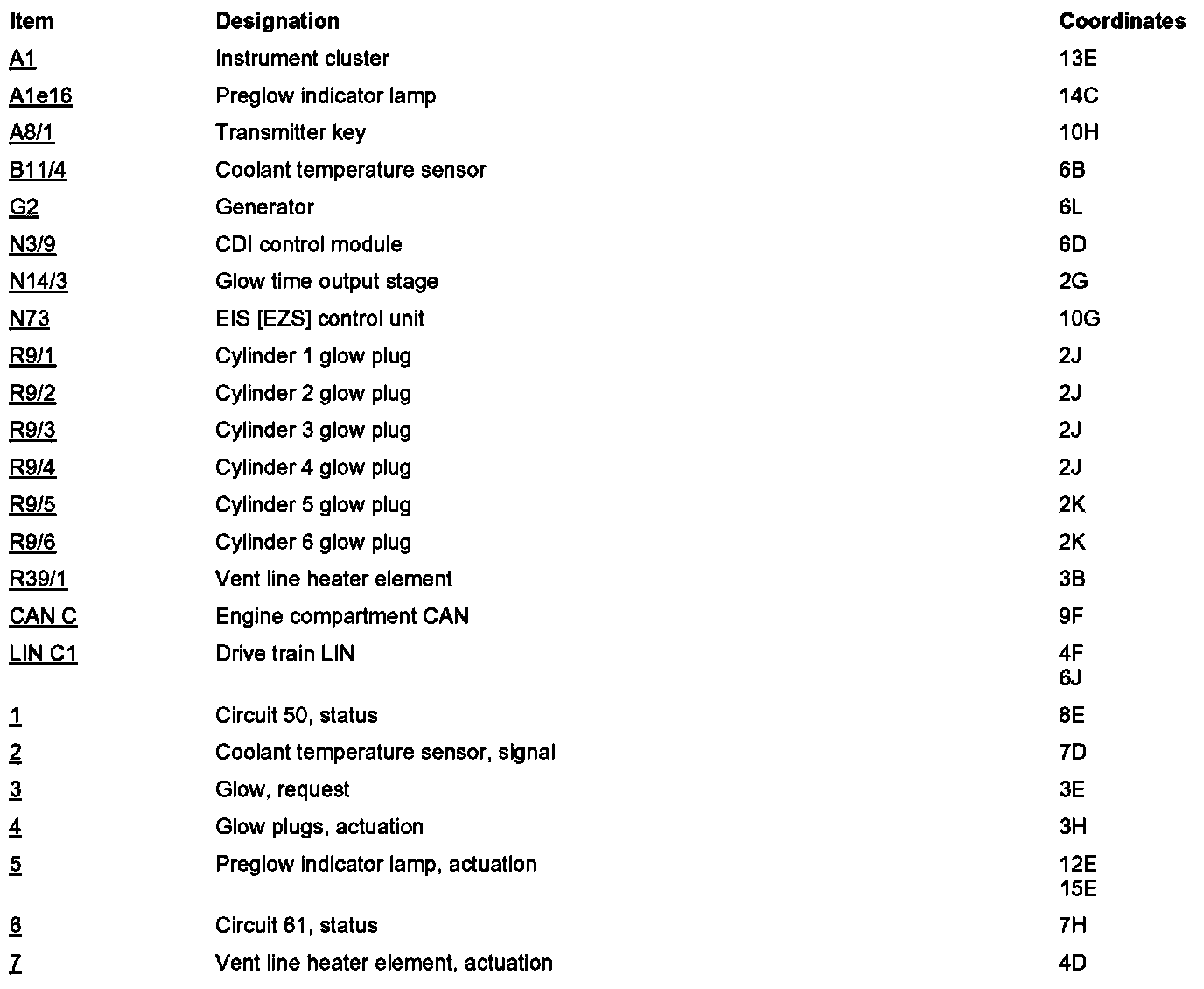

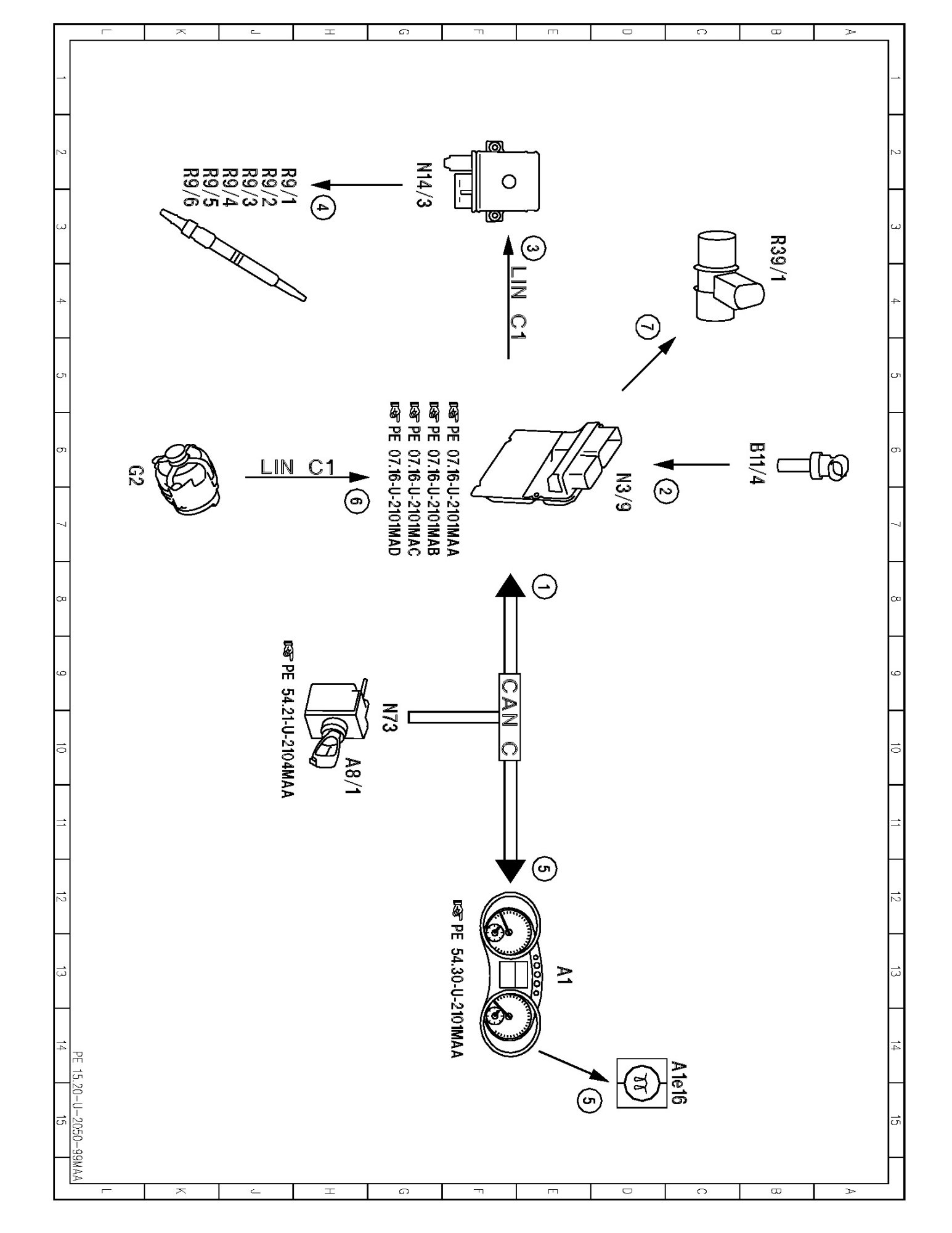

PE15.20-U-2050MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Glowing



PE15.20-U-2050MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Glowing
