PE14.00-P-2051MAA Electrical Function Schematic for Exhaust Treatment

Electrical Function Schematic for Exhaust Treatment PE14.00-P-2051MAA
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

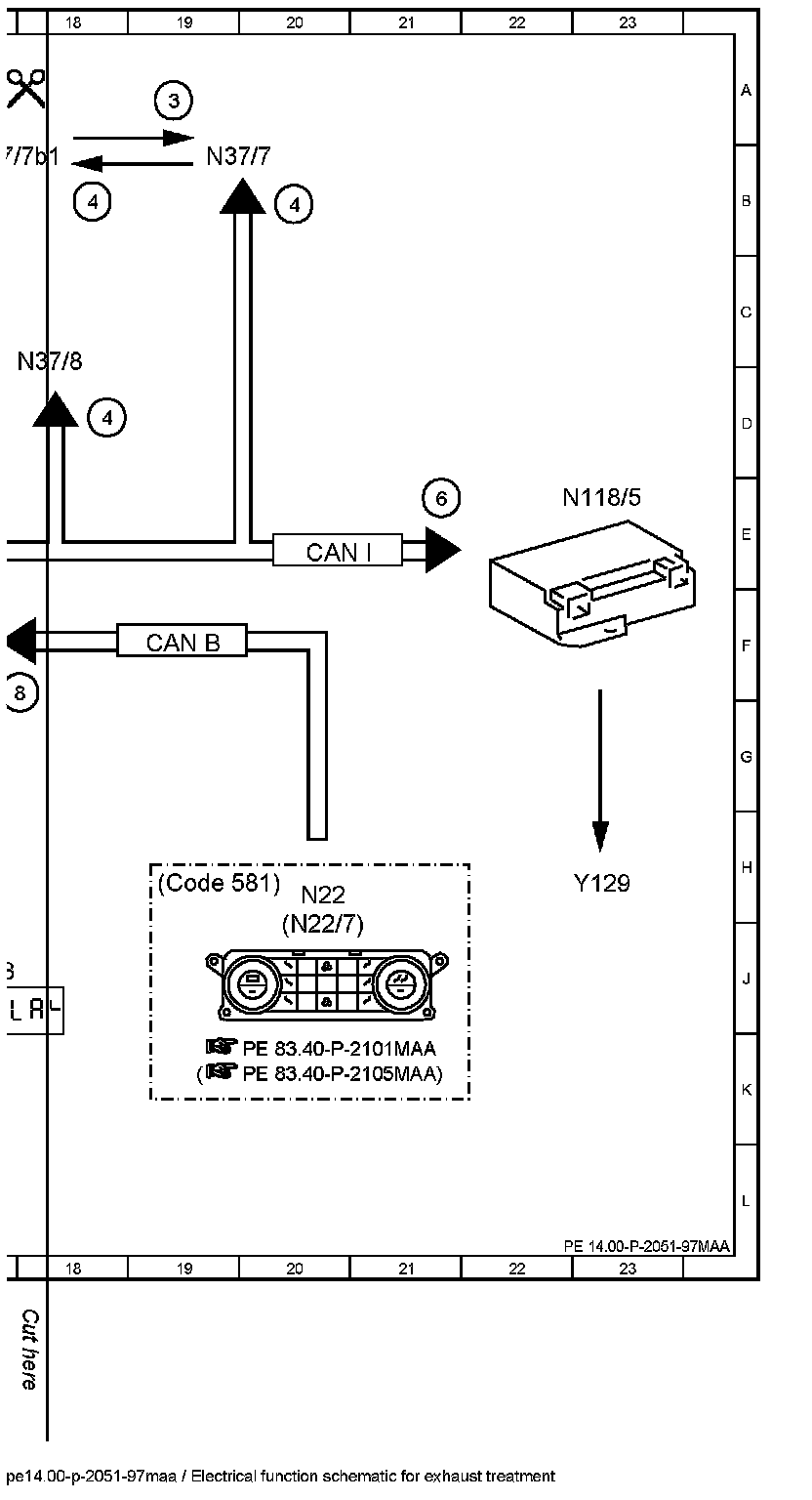

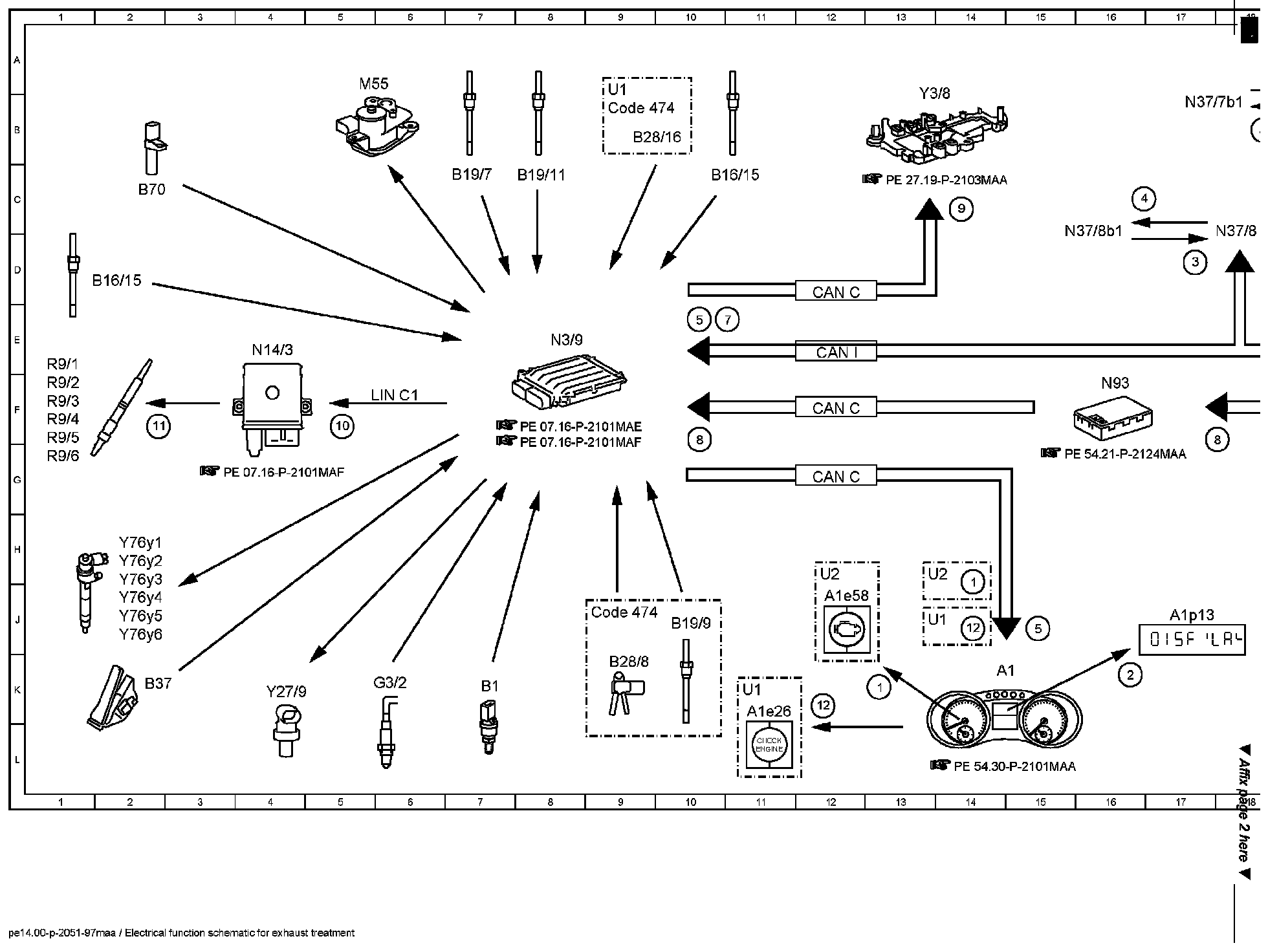

Function Diagram (Part 1):

Function Diagram (Part 2):

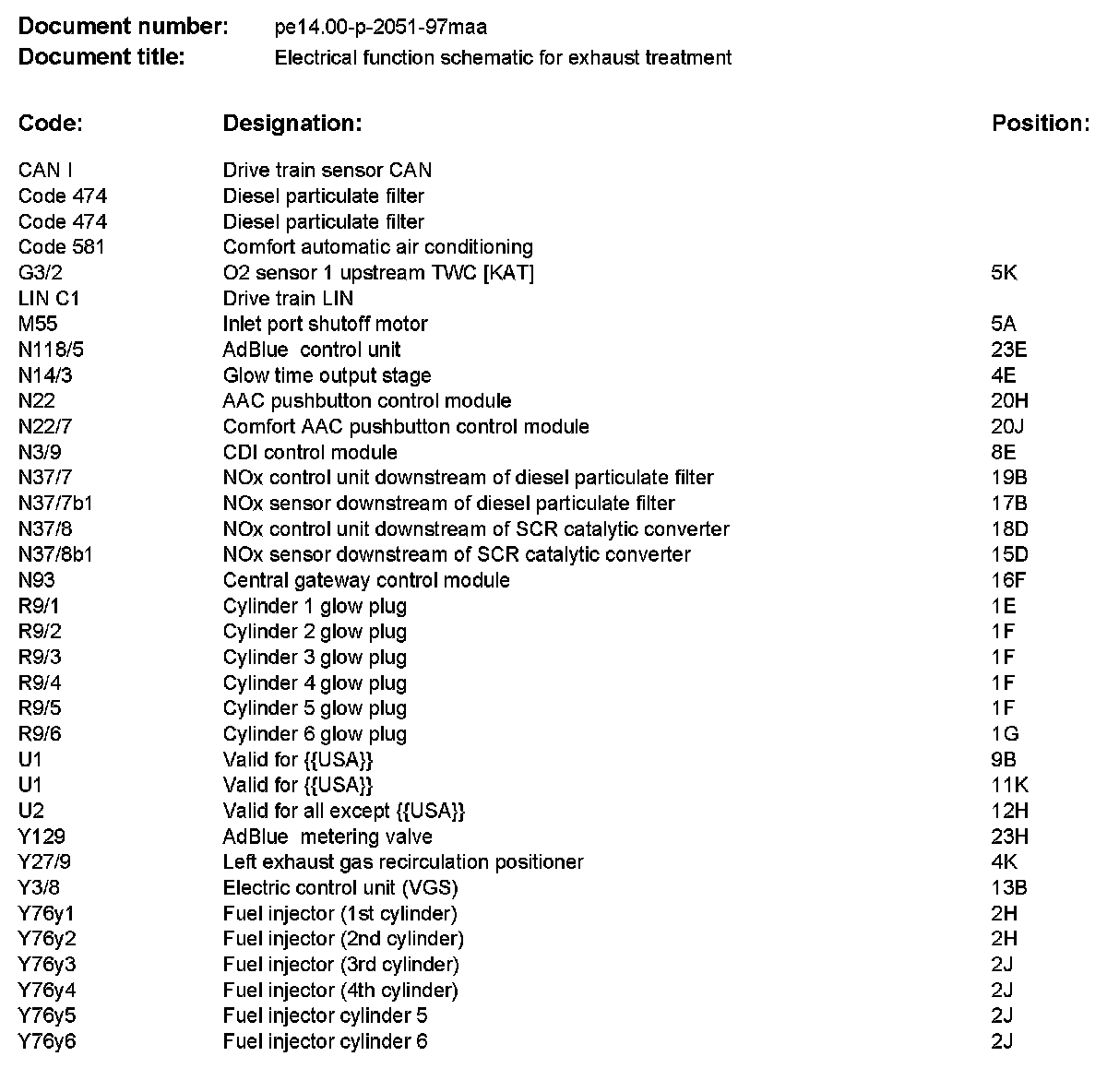

Component Description/Coordinates, 1 To CAN I:

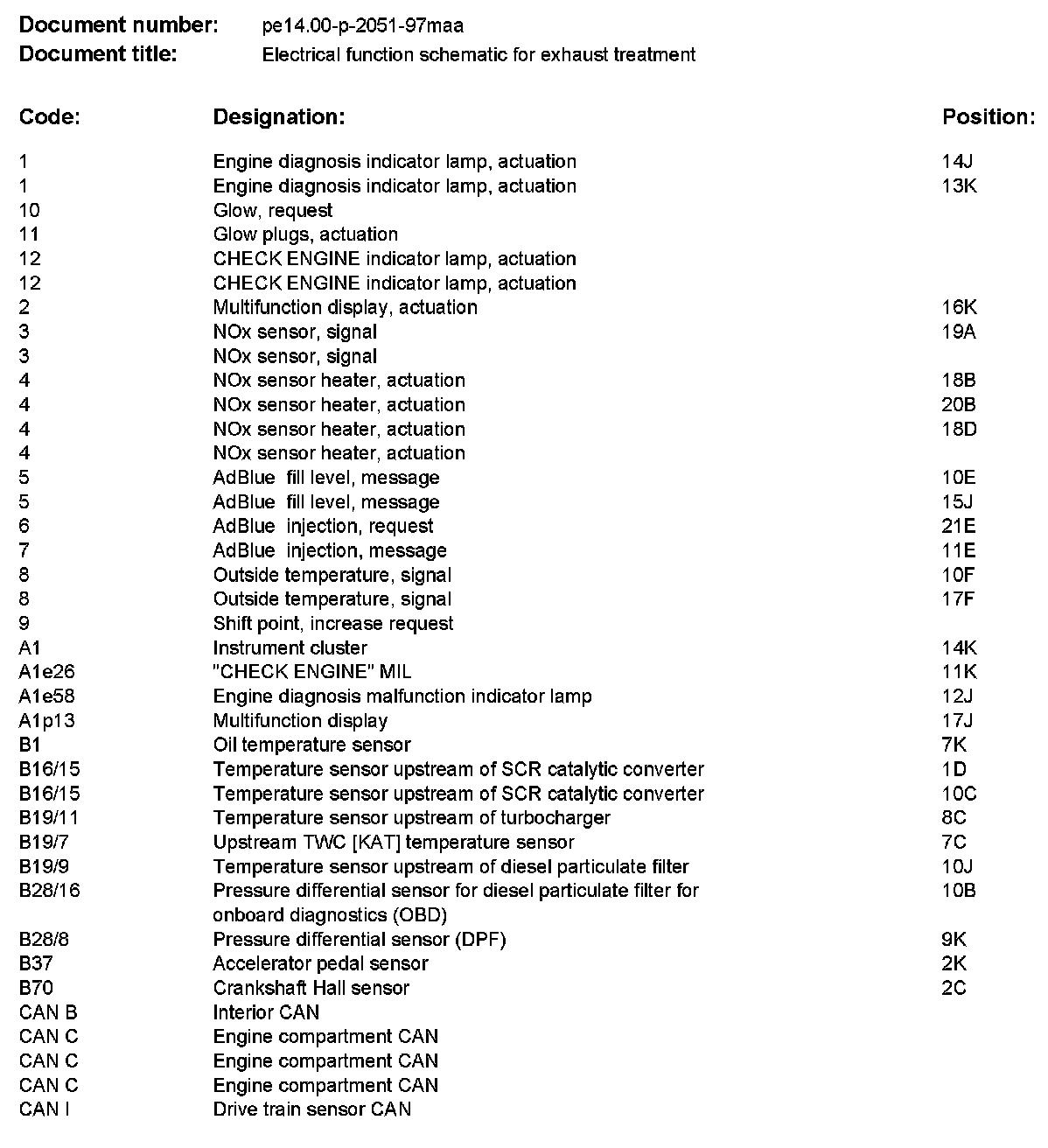

Component Description/Coordinates, CAN I To Y76y6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
