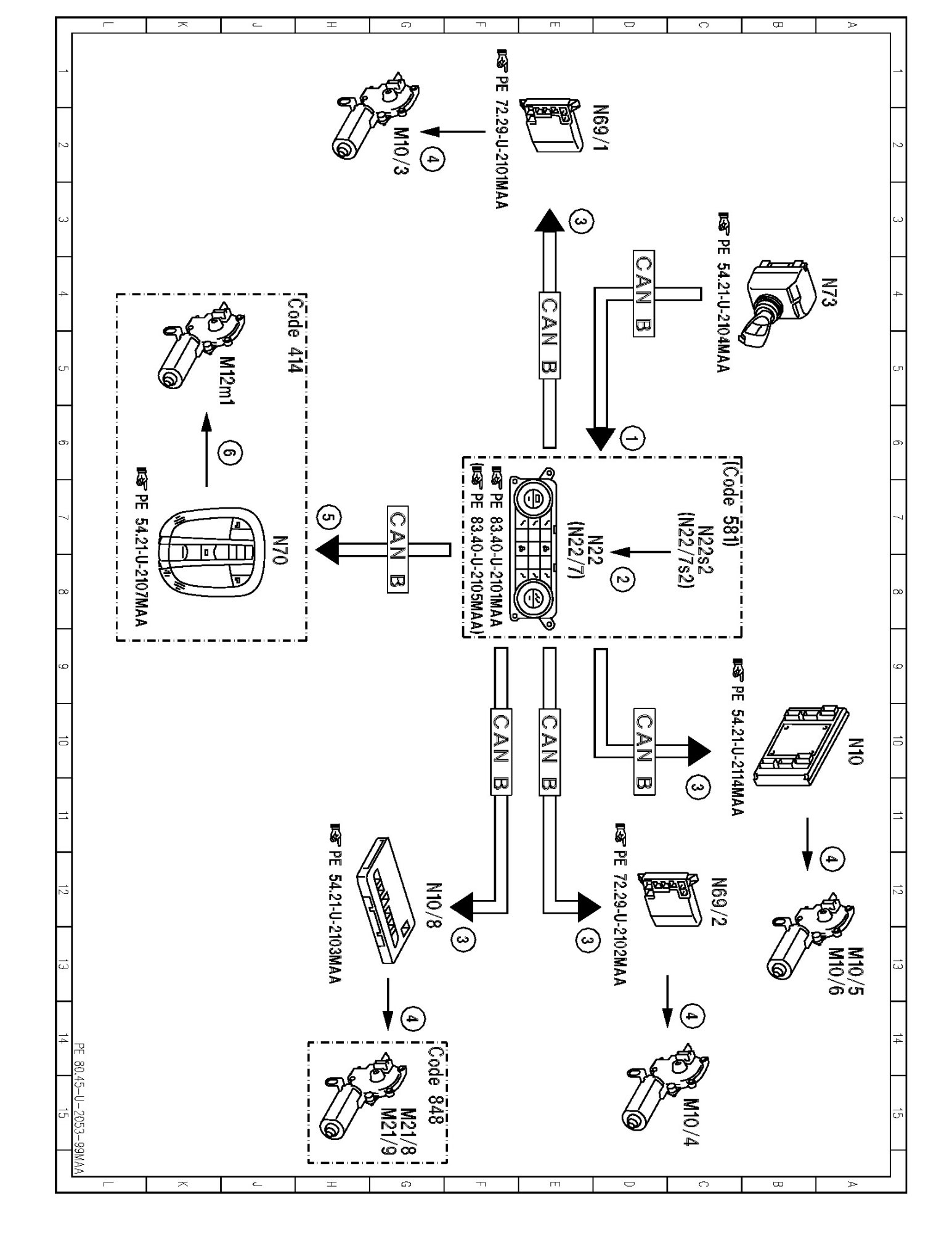

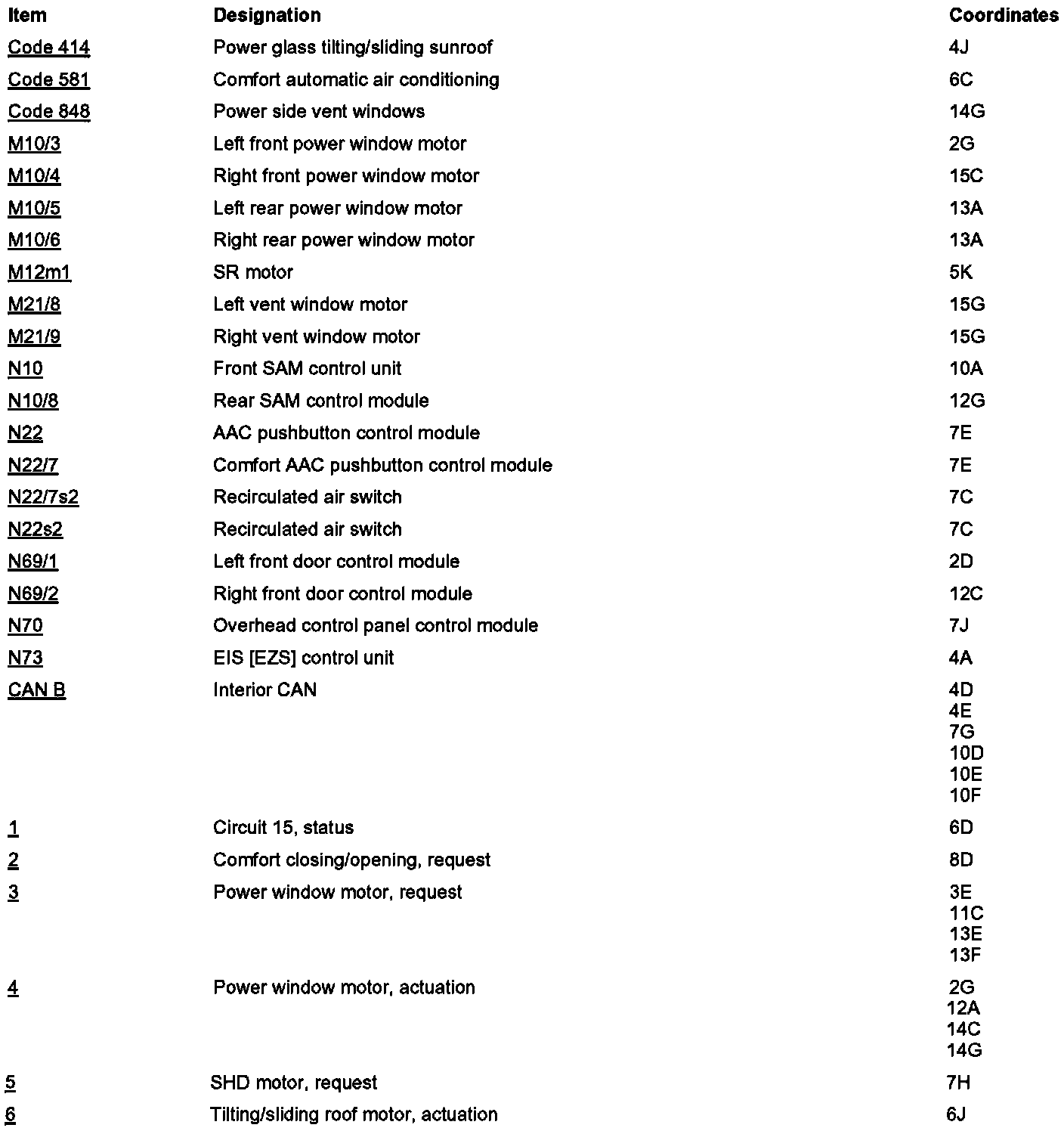

PE80.45-U-2053MAA Electrical Function Diagram For Comfort Opening/Closing Over Air Recirculation Function

PE80.45-U-2053MAA Electrical Function Diagram For Comfort Opening/Closing Over Air Recirculation Function











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
