PE83.70-P-2055MAA Electrical Function Schematic, Programming of Preselection Time

Electrical Function Schematic, Programming of Preselection Time PE83.70-P-2055MAA
- with CODE (228) Stationary heater
- refinement package
- as of model year 2009

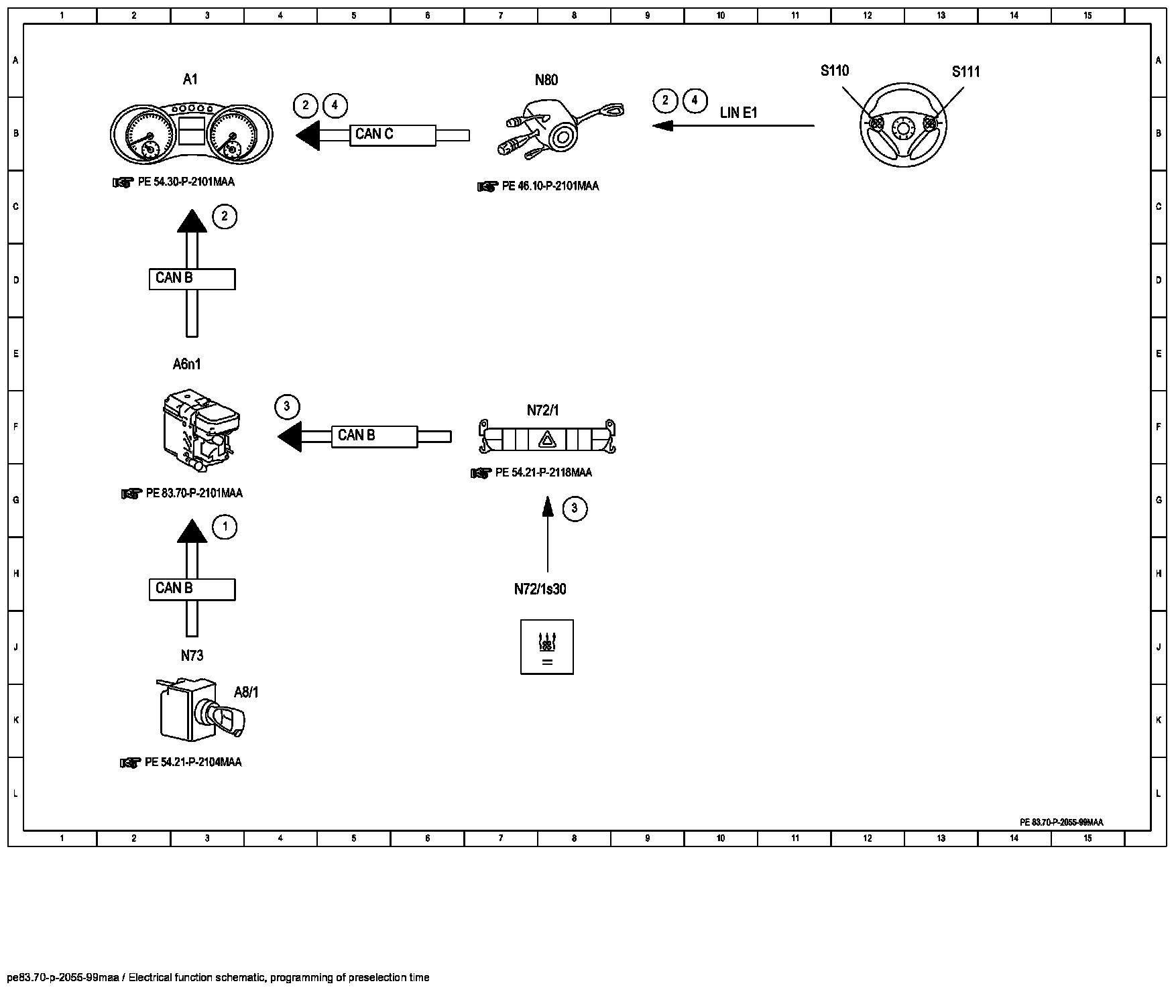

Function Diagram:

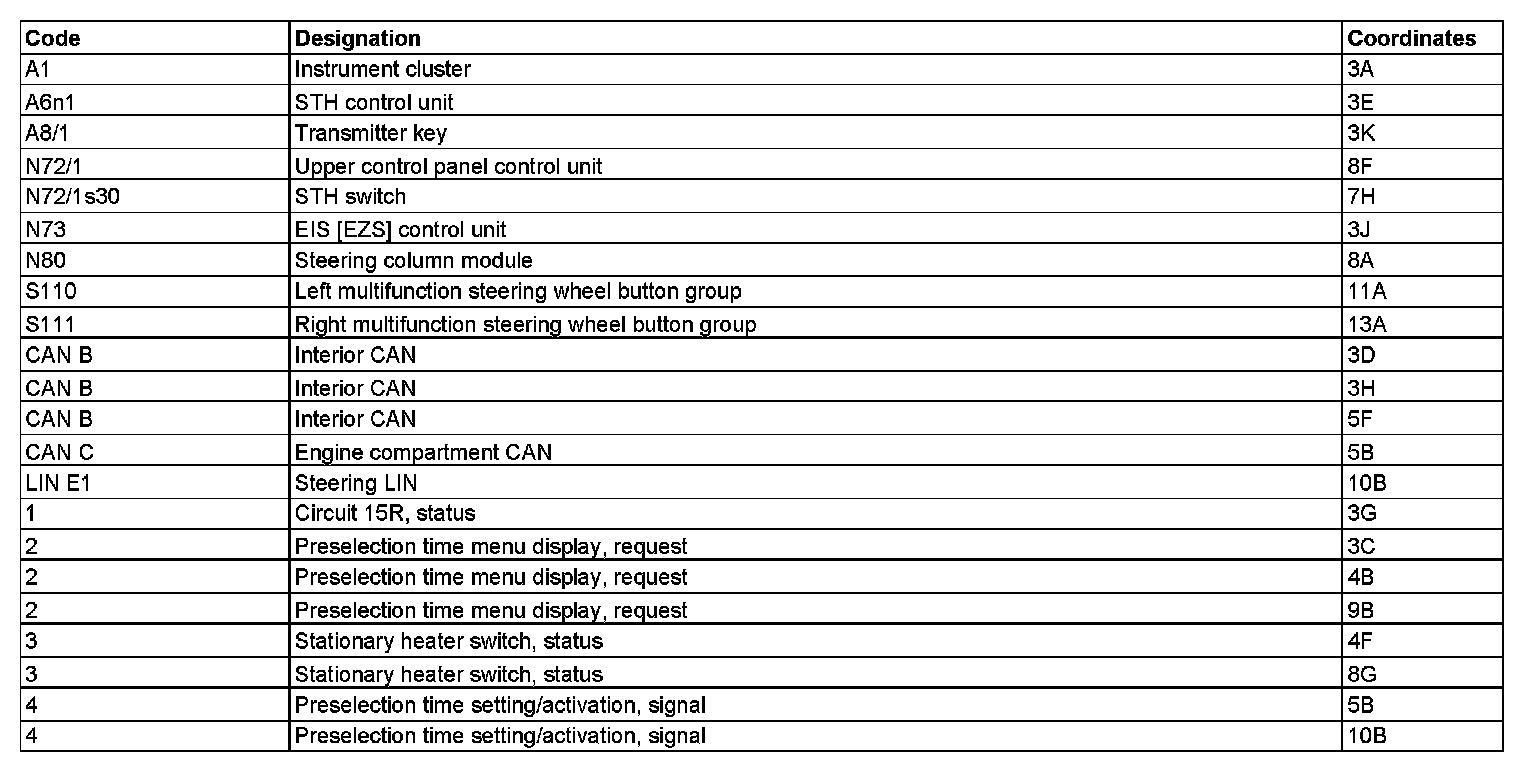

Component Description/Coordinates, A1 To 4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
