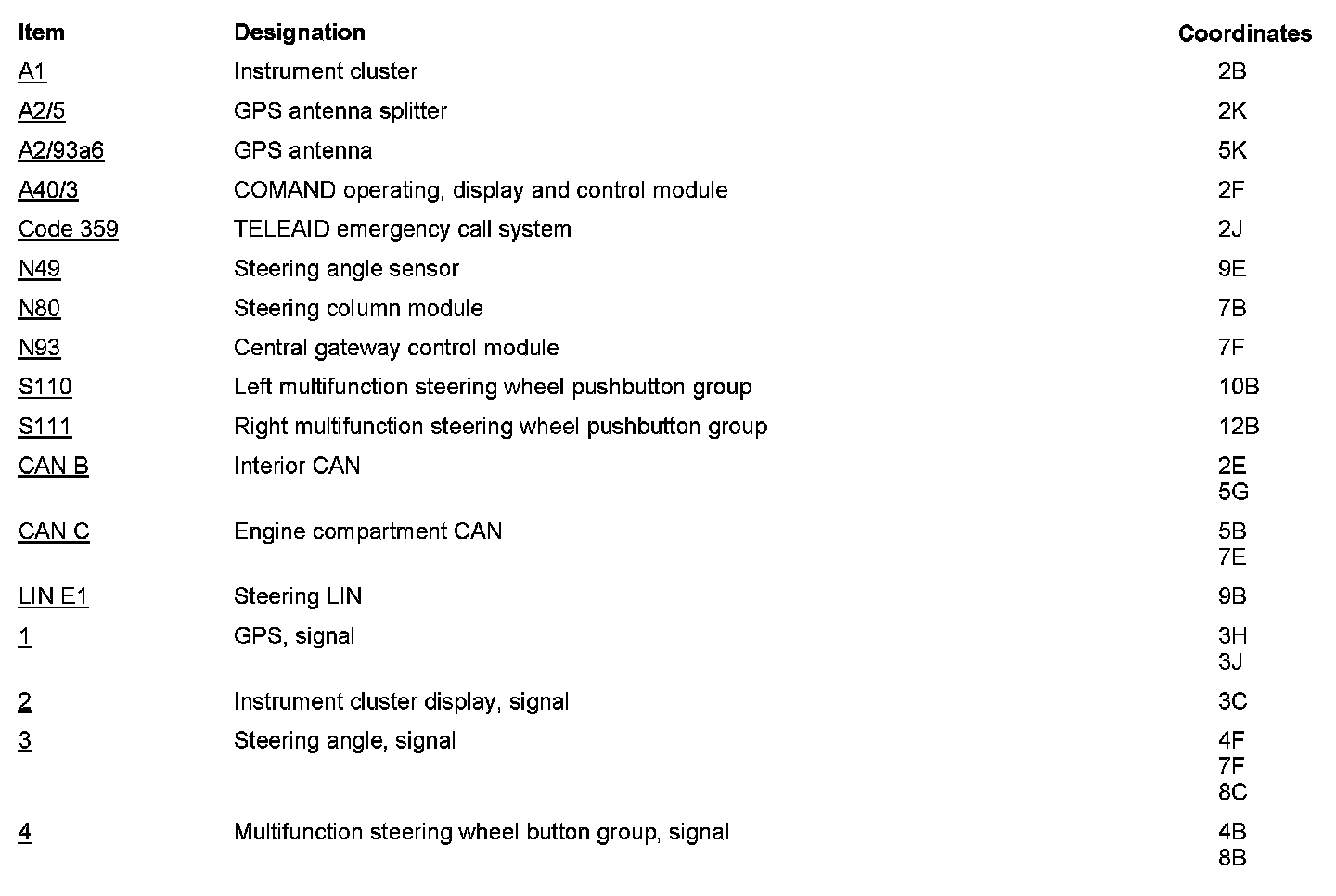

PE54.30-U-2058MAA Electrical Function Schematic For Compass Indication

PE54.30-U-2058MAA Electrical Function Schematic For Compass Indication
- with CODE (528) COMAND
- with CODE (245) Electronic compass










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
