PE83.70-P-2054MAA Electrical Function Schematic, Trigger Heater Preselect Mode

Electrical Function Schematic, Trigger Heater Preselect Mode PE83.70-P-2054MAA
- with CODE (228) Stationary heater
- refinement package
- as of model year 2009

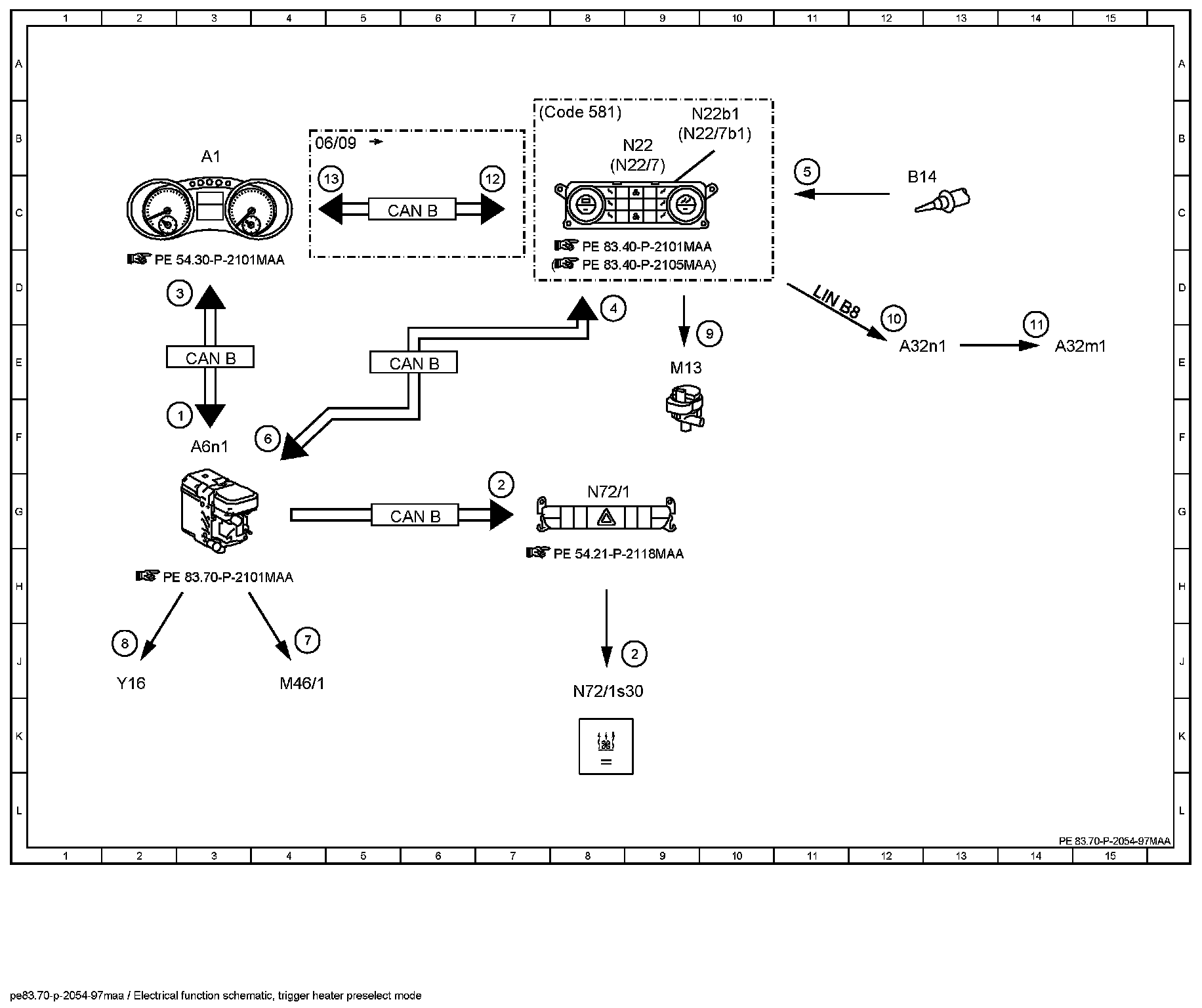

Function Diagram:

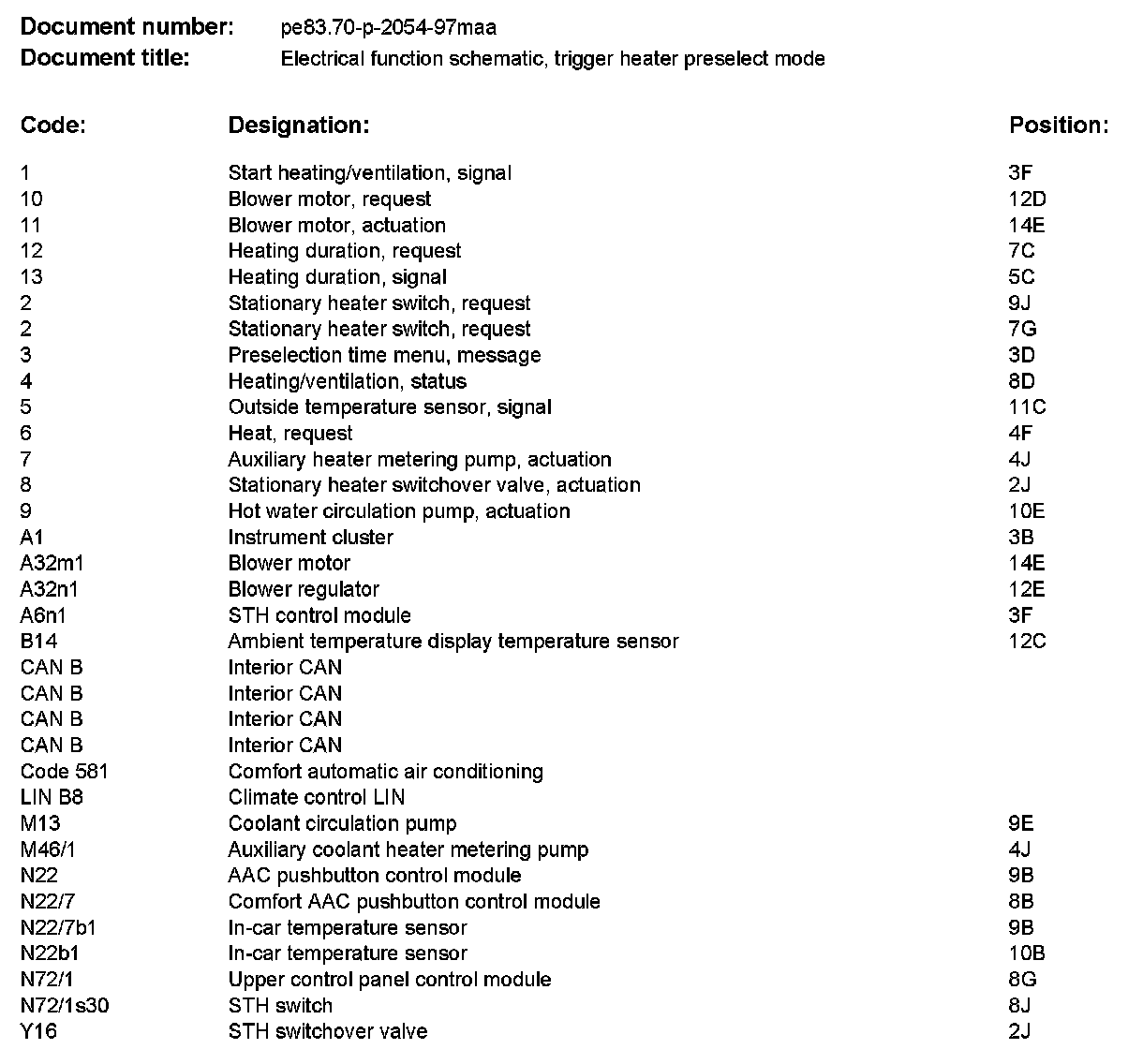

Component Description/Coordinates, 1 To Y16:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
