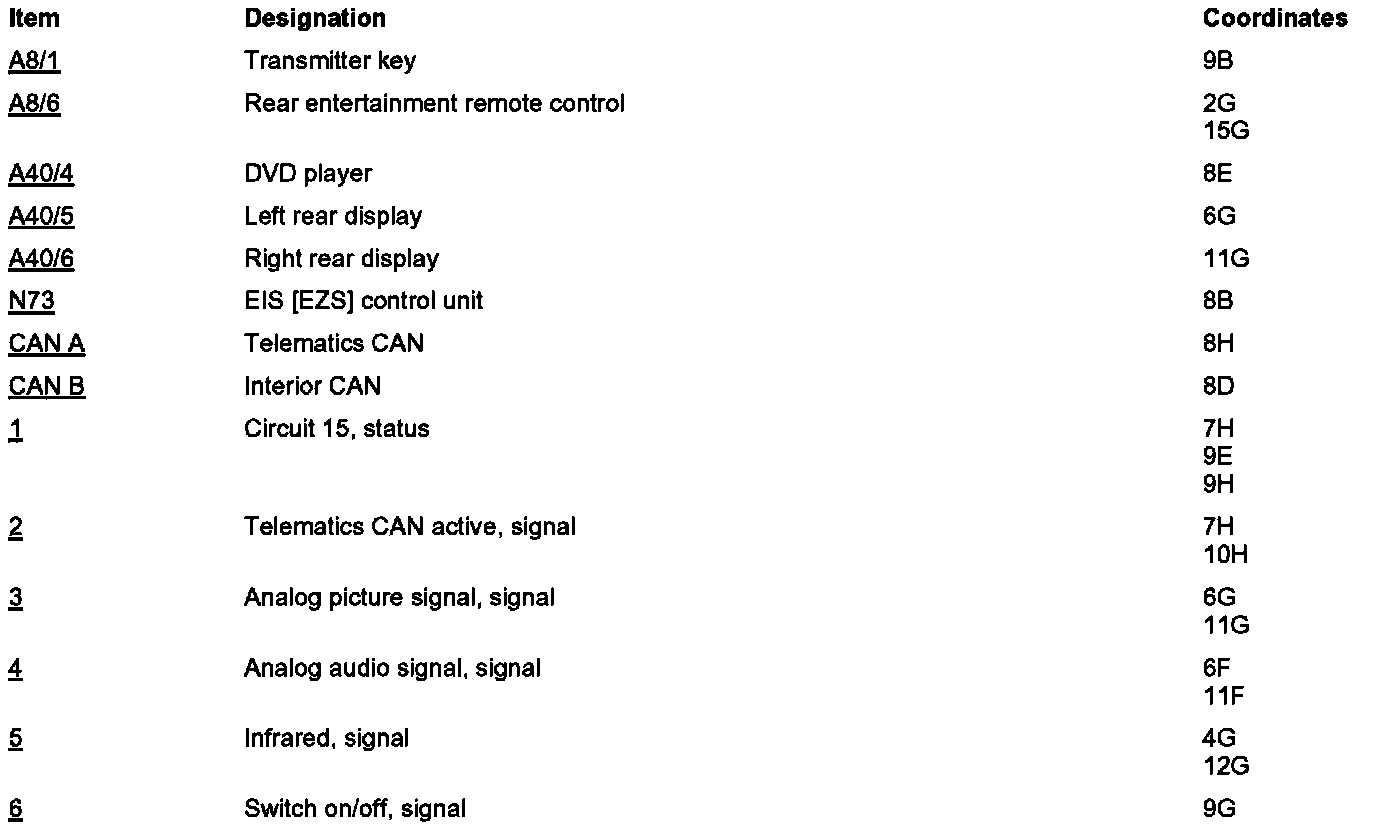

PE82.90-U-2052MAA Electrical Function Schematic For Rear Entertainment Switch On and Switch Off Characteristics and System

PE82.90-U-2052MAA Electrical Function Schematic For Rear Entertainment Switch on and Switch Off Characteristics and System Settings
- with CODE (864) Rear entertainment system
- with CODE (866) Preinstallation for rear entertainment system











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
