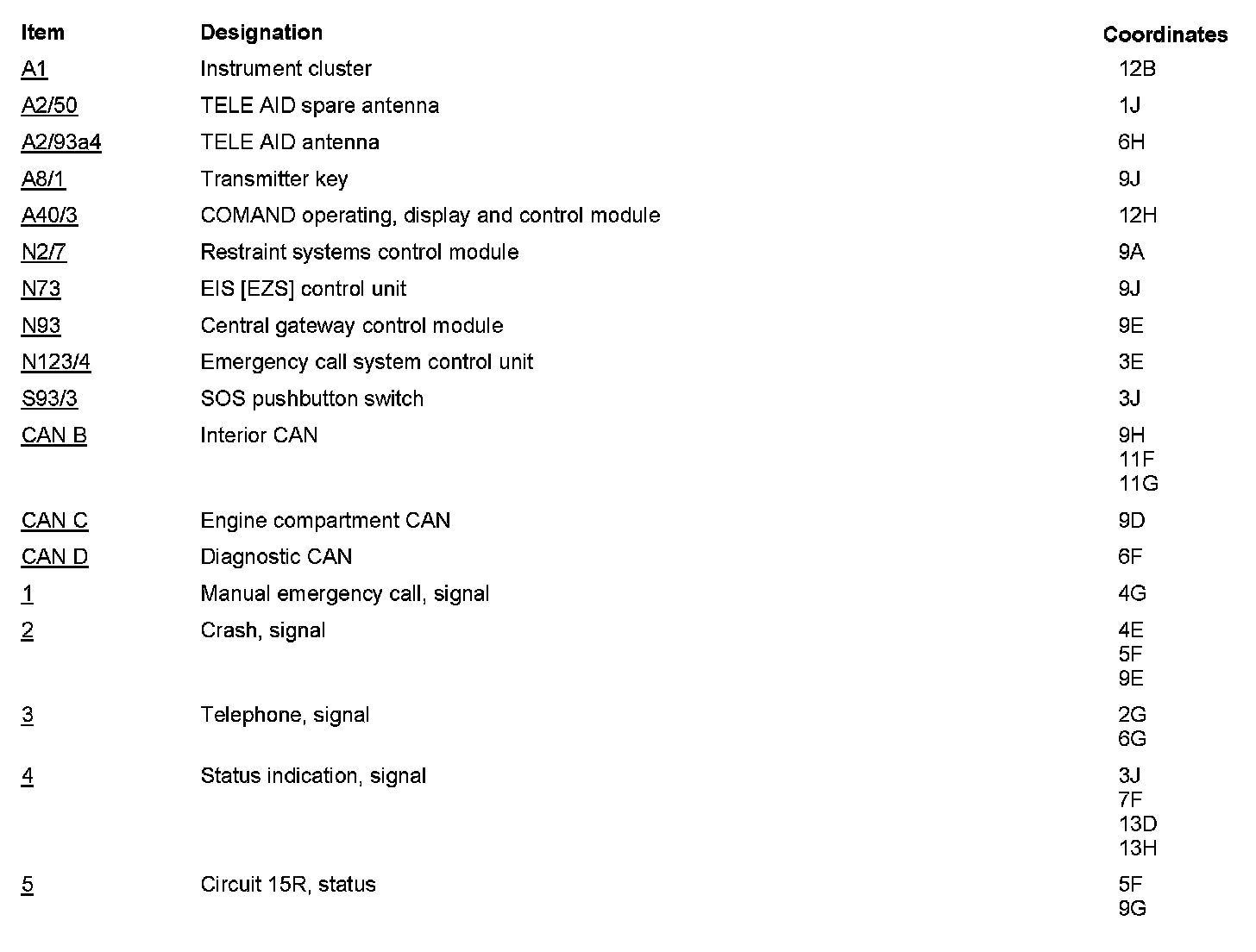

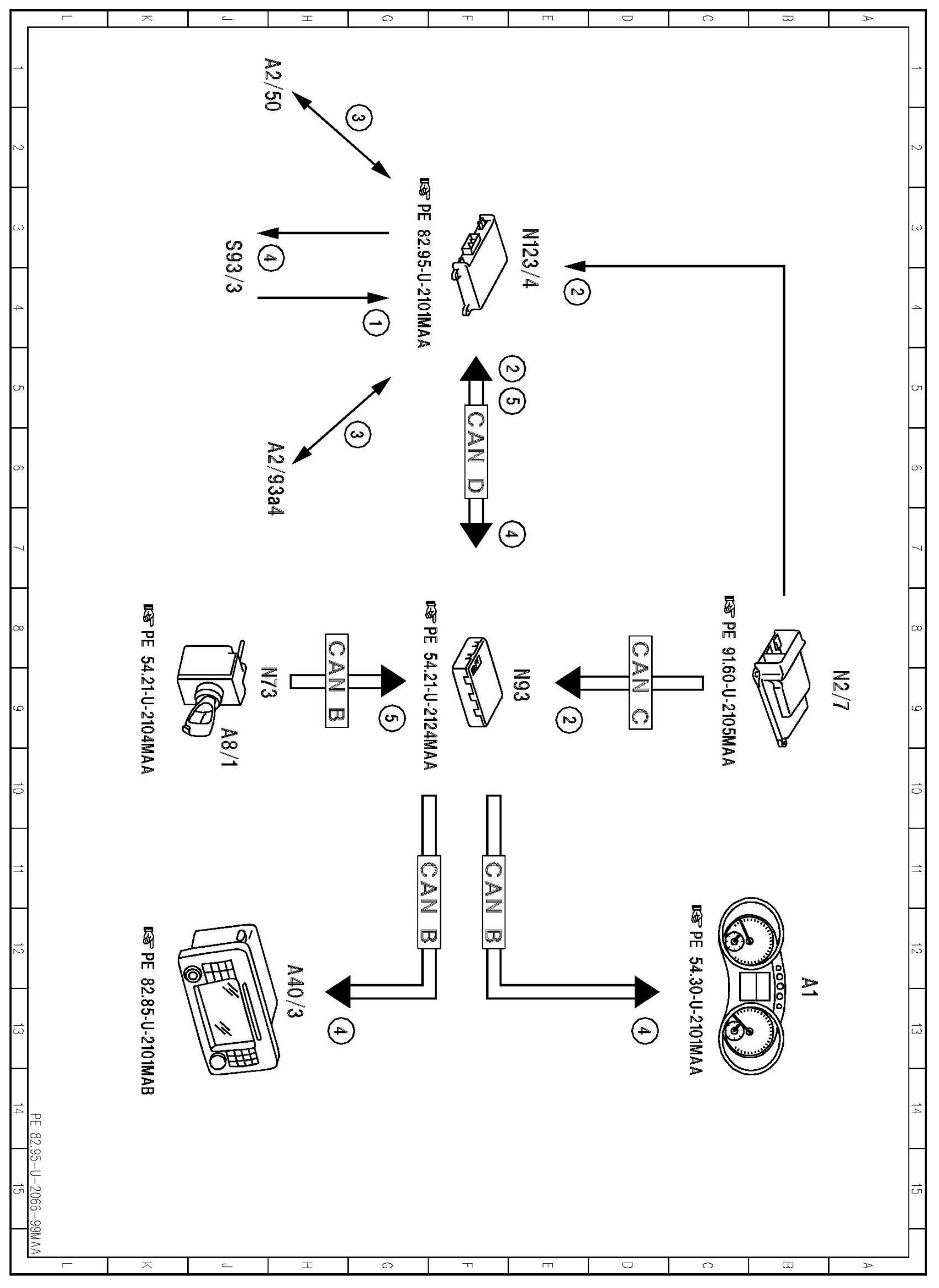

PE82.95-U-2066MAA Electrical Function Schematic For Manual or Automatic Emergency Call, Function



PE82.95-U-2066MAA Electrical Function Schematic For Manual or Automatic Emergency Call, Function
- with CODE (359) TELE AID emergency call system










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
