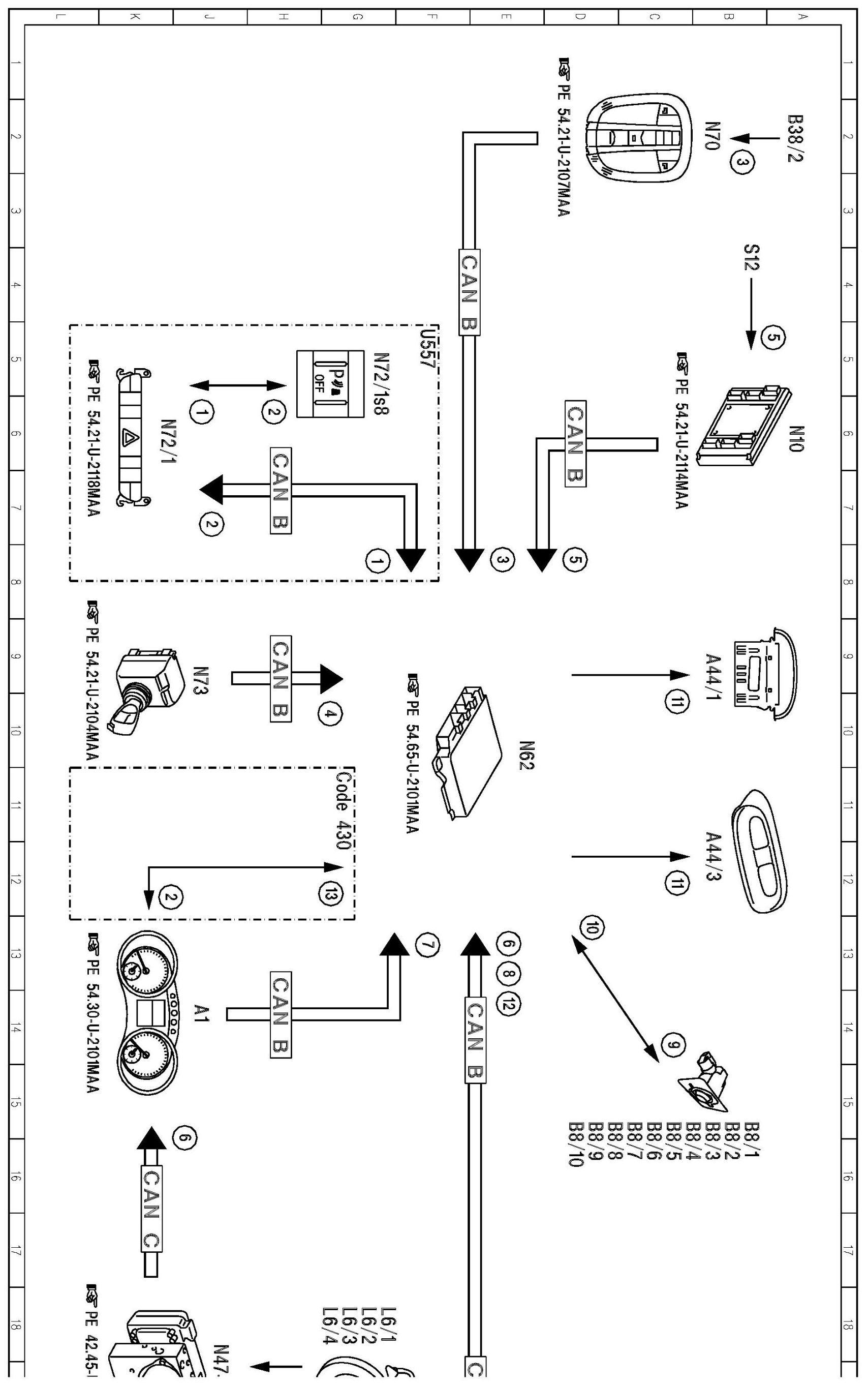

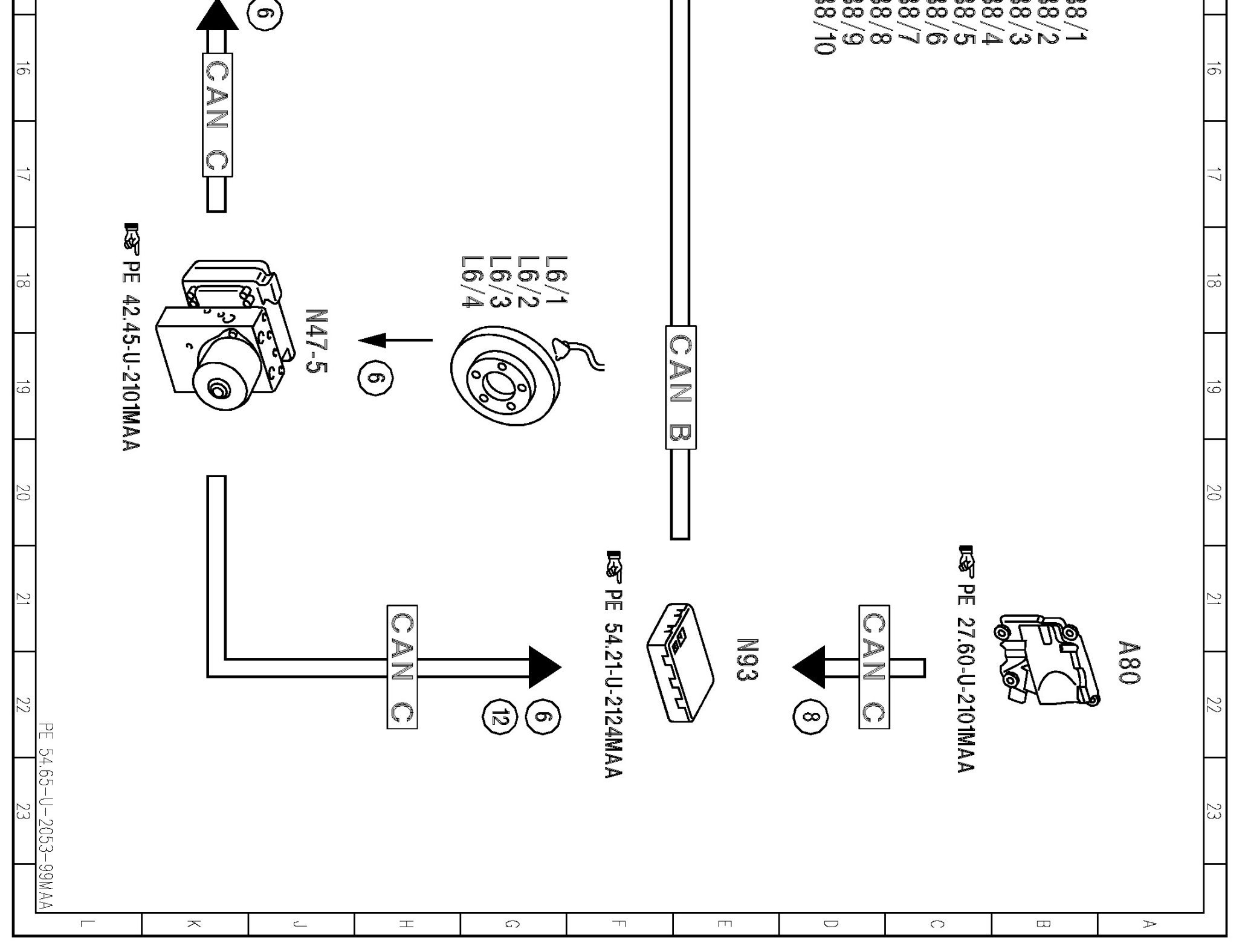

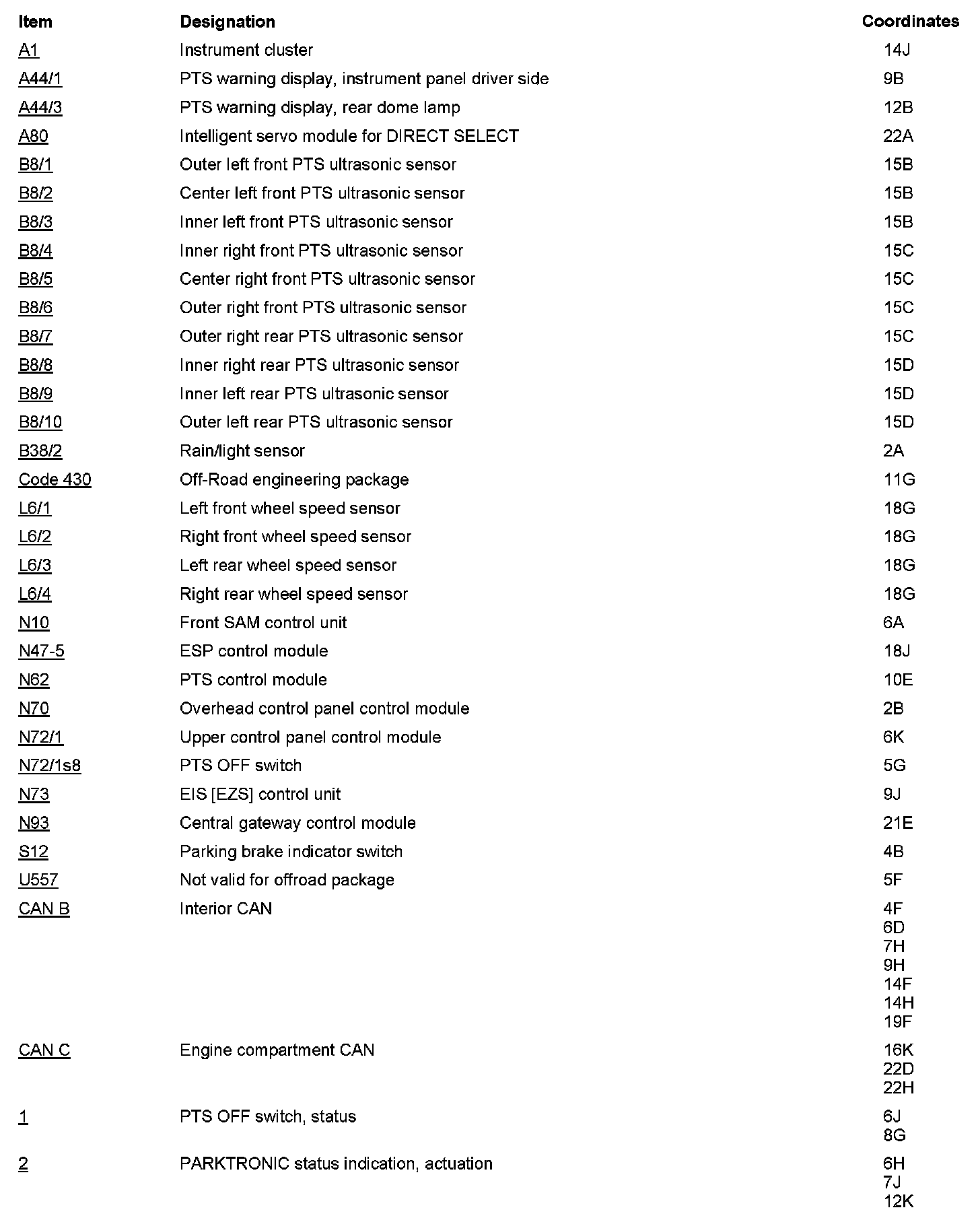

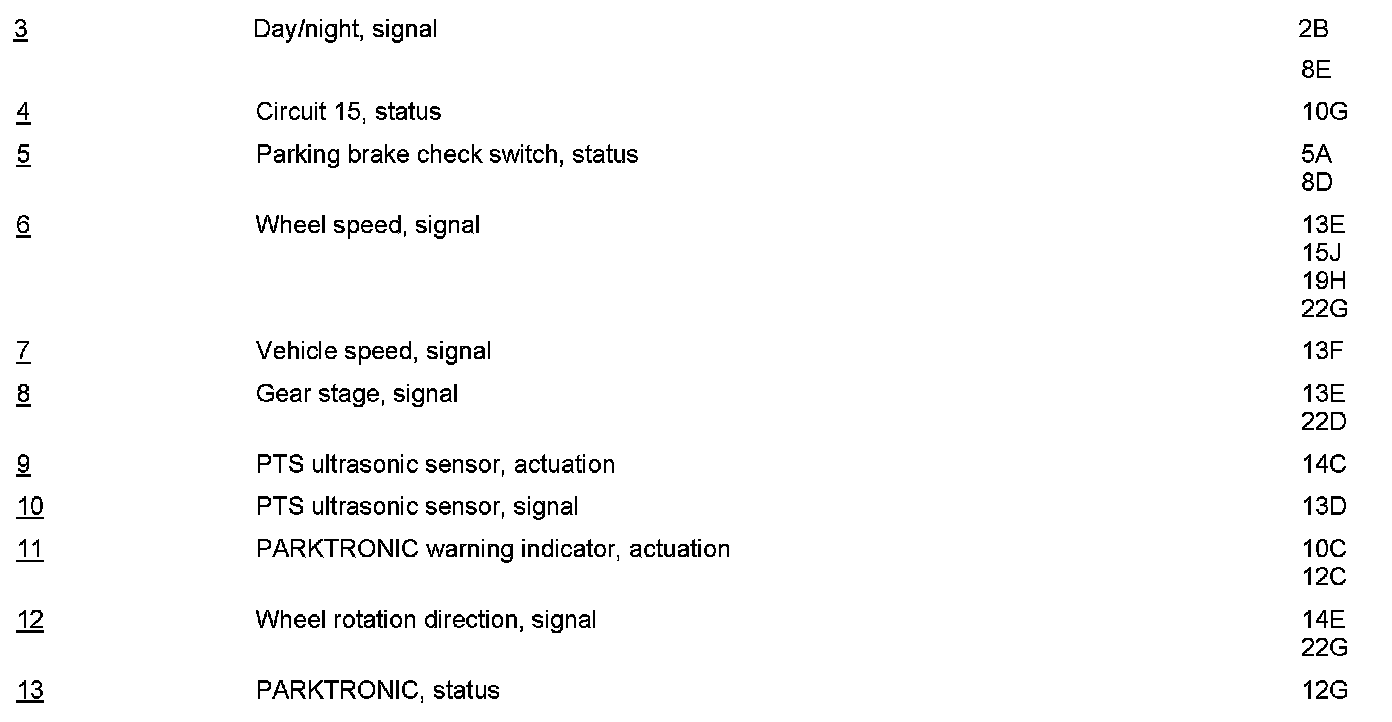

PE54.65-U-2053MAA Electrical Function Schematic For PARKTRONIC



PE54.65-U-2053MAA Electrical Function Schematic For PARKTRONIC
- with CODE (220) PARKTRONIC
