PE82.70-P-2059MAA Electrical Function Diagram for Mobile Phone Accepting Call, Rejecting Call and Conference Call

Electrical Function Diagram for Mobile Phone Accepting Call, Rejecting Call and Conference Call PE82.70-P-2059MAA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- basic telephony
- refinement package
- as of model year 2009

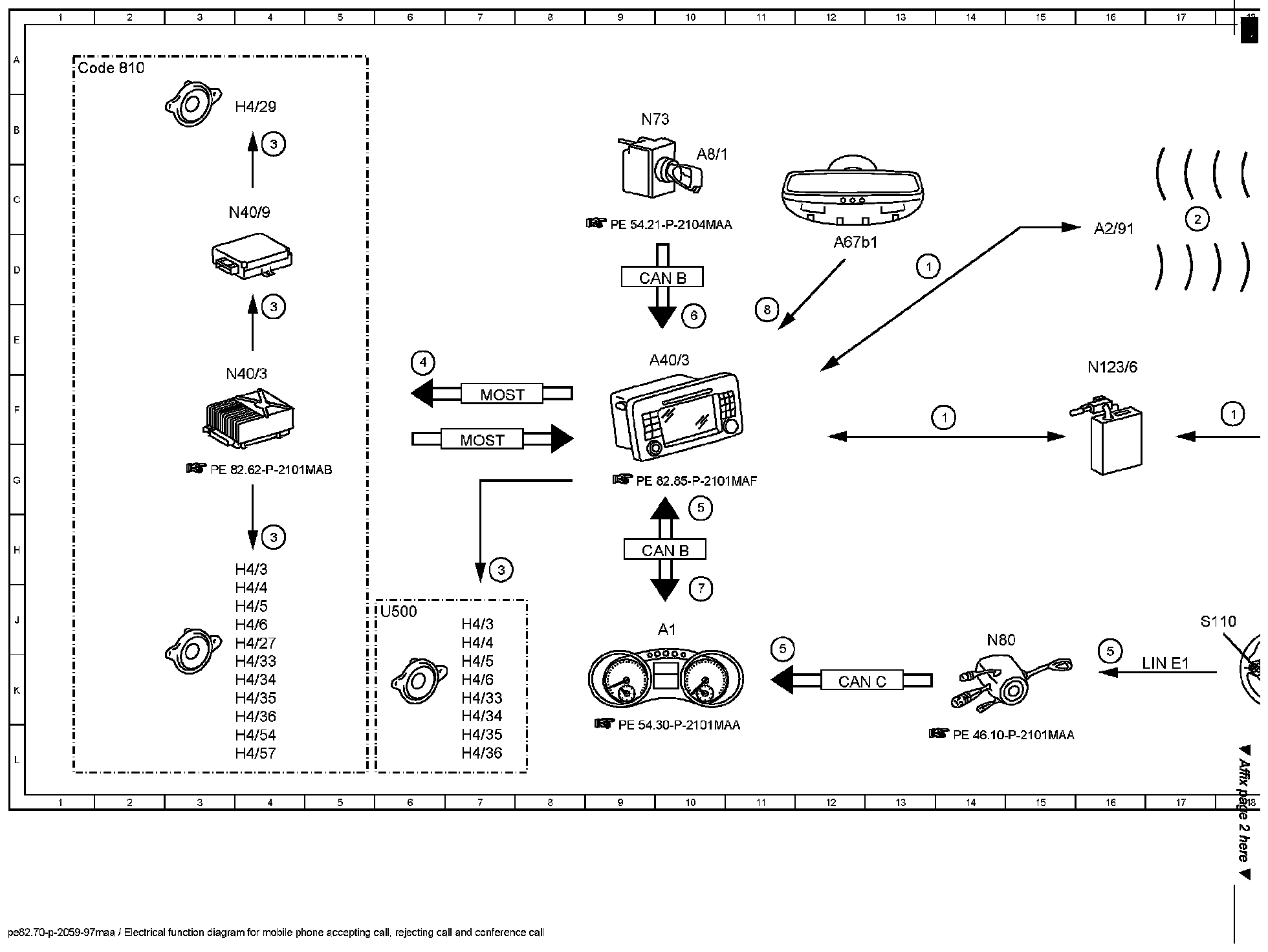

Function Diagram (Part 1):

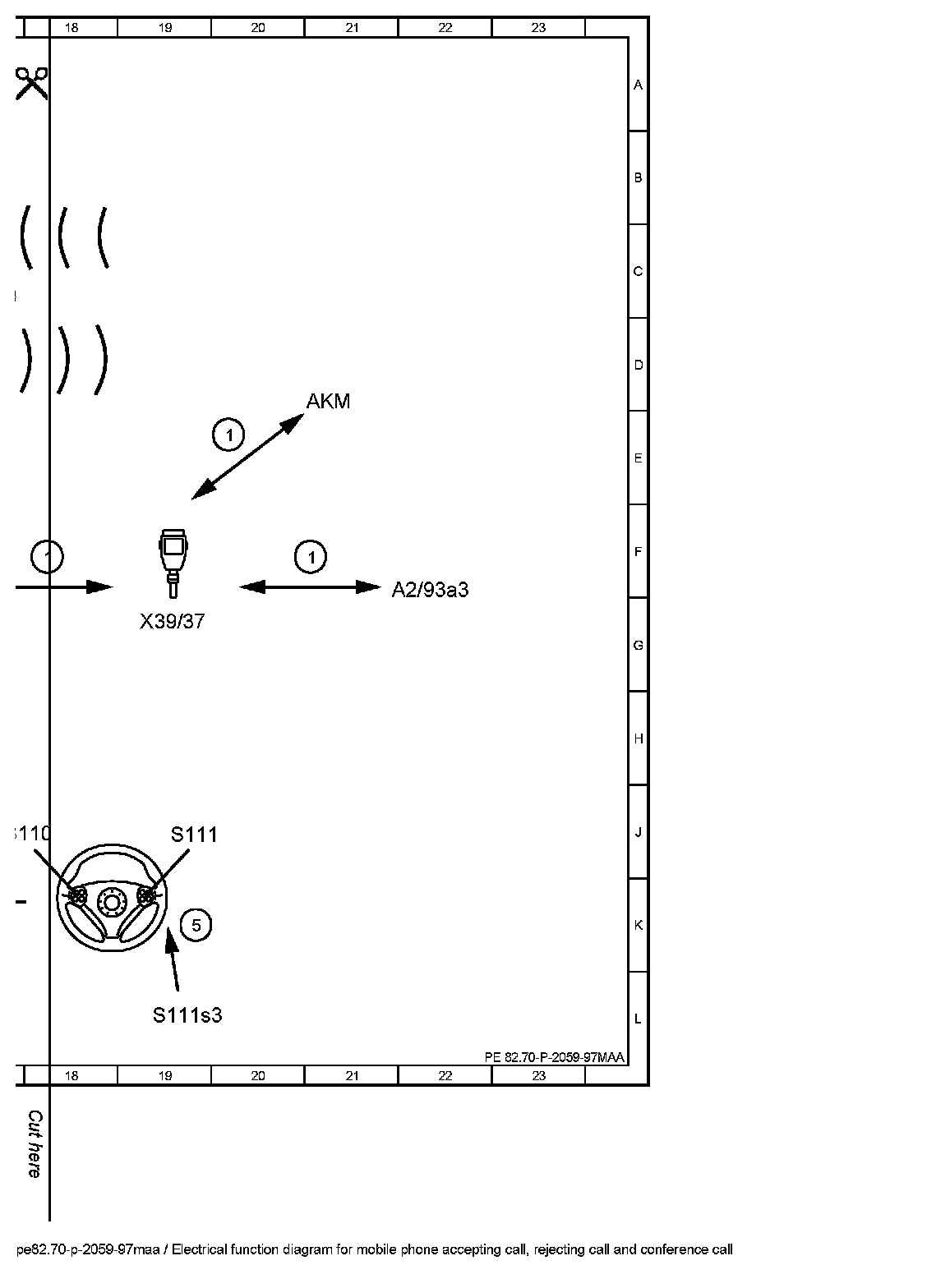

Function Diagram (Part 2):

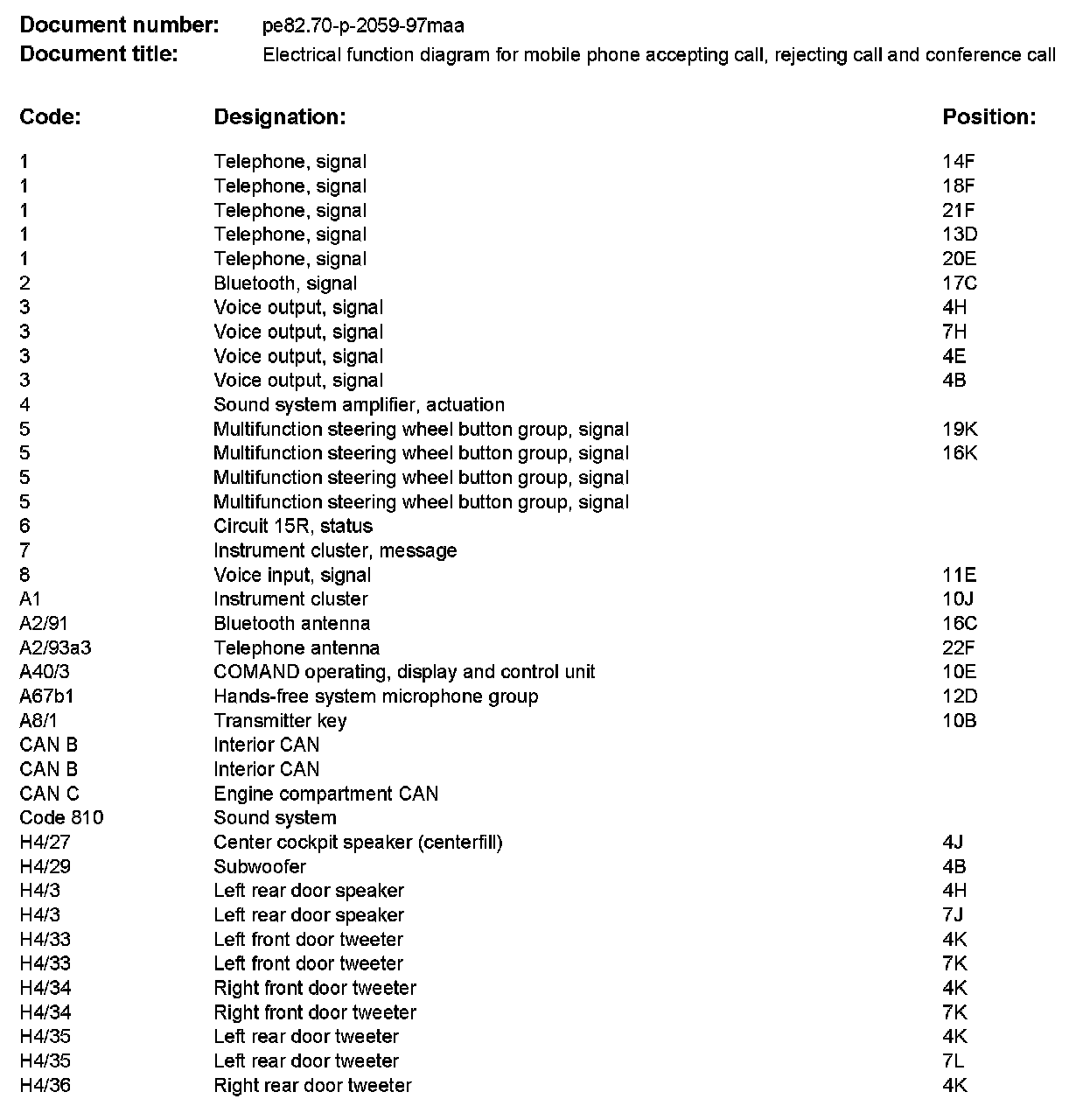

Component Description/Coordinates, 1 To H4/36:

Component Description/Coordinates, H4/36 To X39/37:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
