PE82.85-P-2065MAA Electrical Function Diagram for TV Mode, Function

Electrical Function Diagram for TV Mode, Function PE82.85-P-2065MAA
- with CODE (863) Digital/analog TV tuner
- refinement package
- as of model year 2009

Function Diagram:

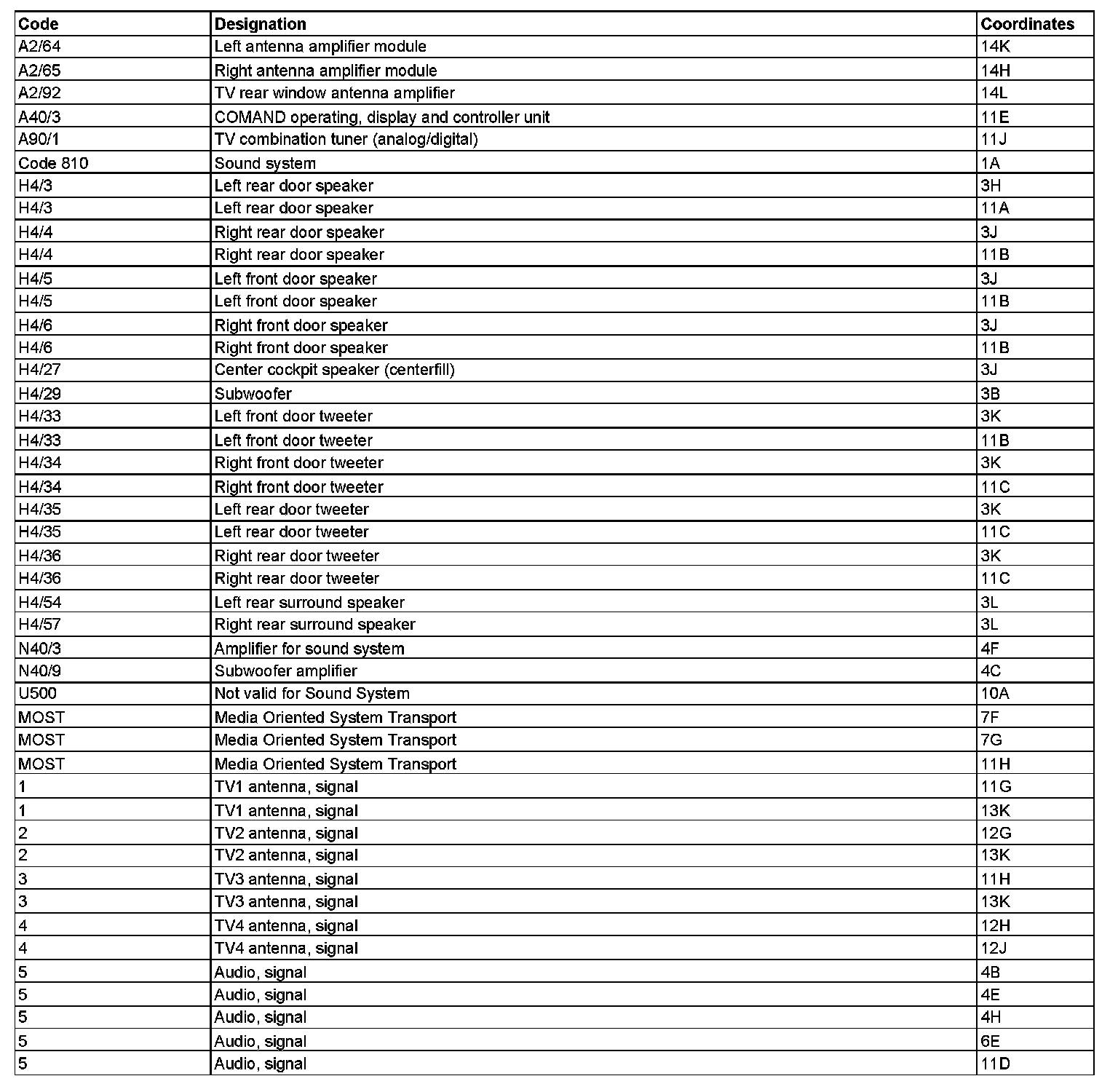

Component Description/Coordinates, A2/64 To 5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
