PE82.85-P-2062MAB Electrical Function Diagram for Position Finding and Navigation (COMAND), Function

Electrical Function Diagram for Position Finding and Navigation (COMAND), Function PE82.85-P-2062MAB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- refinement package
- as of model year 2009

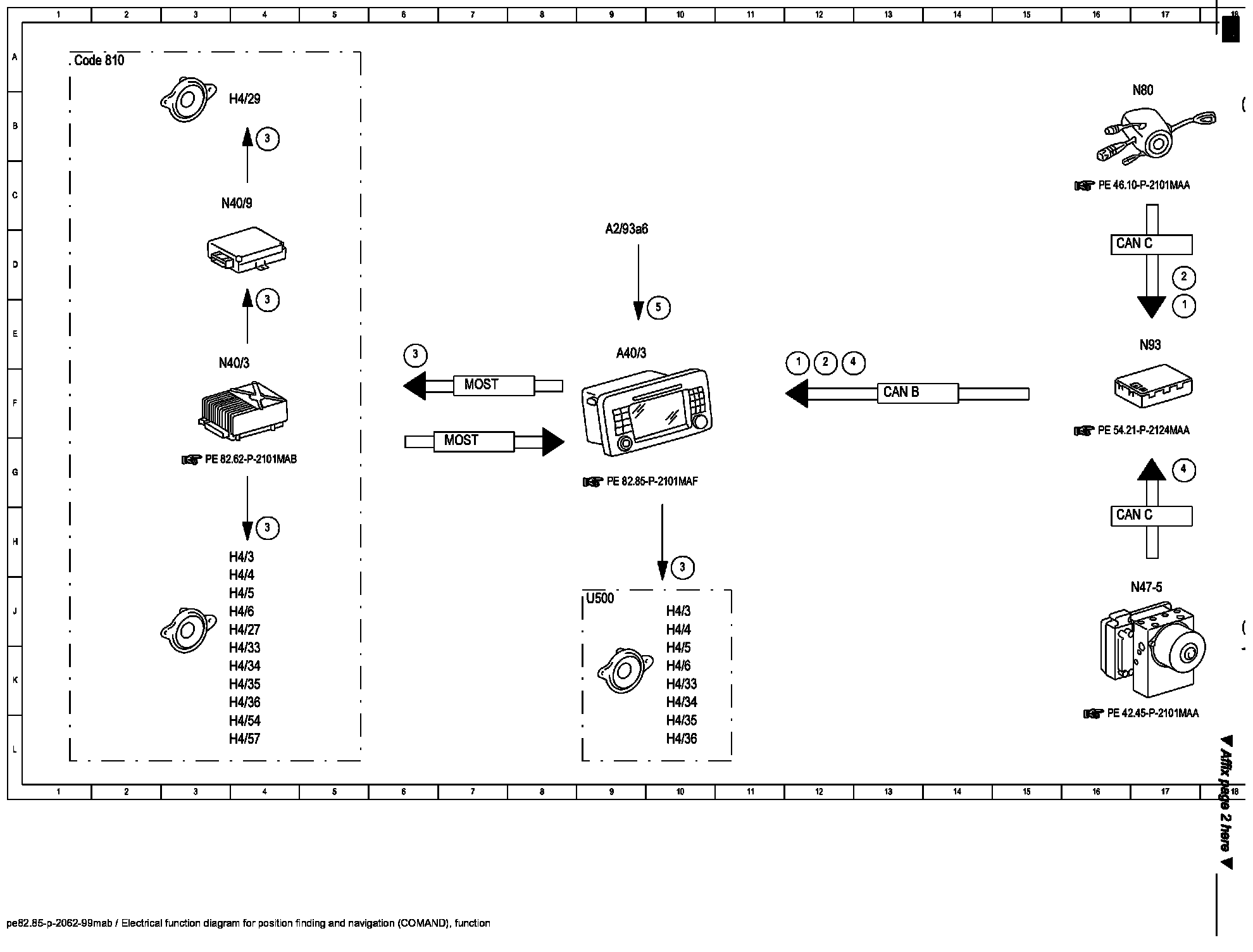

Function Diagram (Part 1):

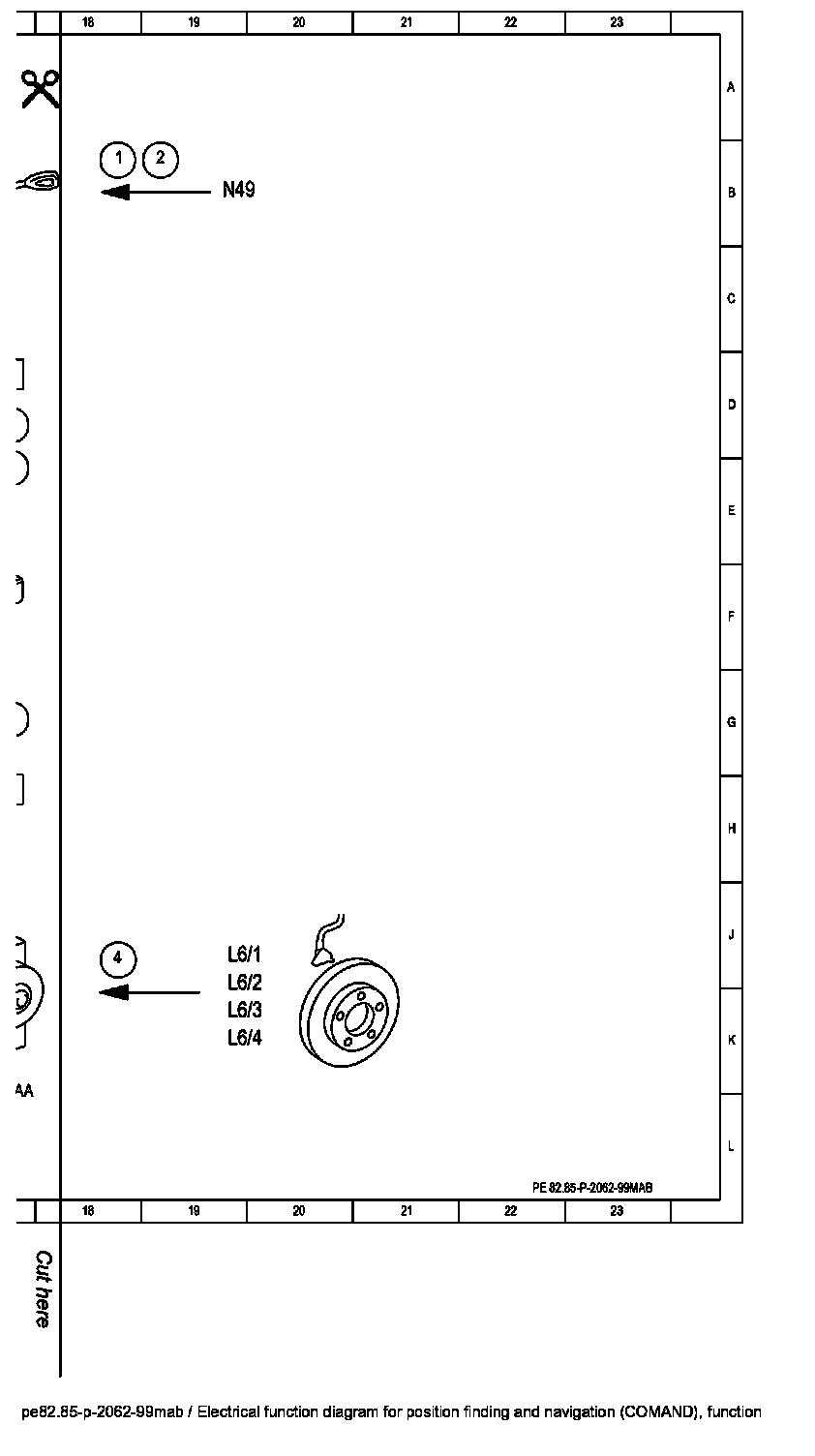

Function Diagram (Part 2):

Component Description/Coordinates, A2/93a6 To 5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
