PE82.85-P-2058MAA Electrical Function Diagram for COMAND ETC

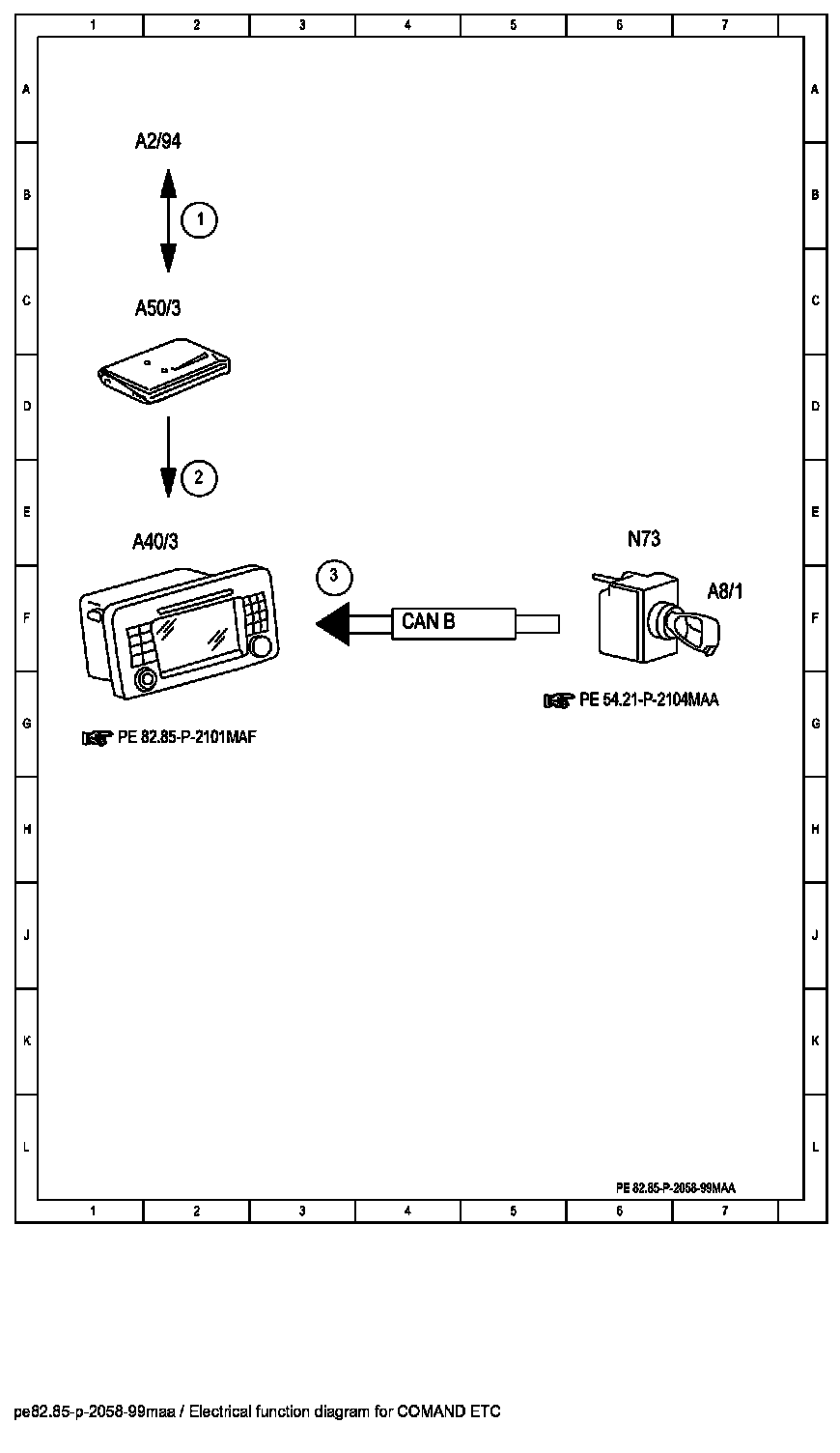

Electrical Function Diagram for COMAND ETC PE82.85-P-2058MAA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- Dealer option
- refinement package
- as of model year 2009

Function Diagram:

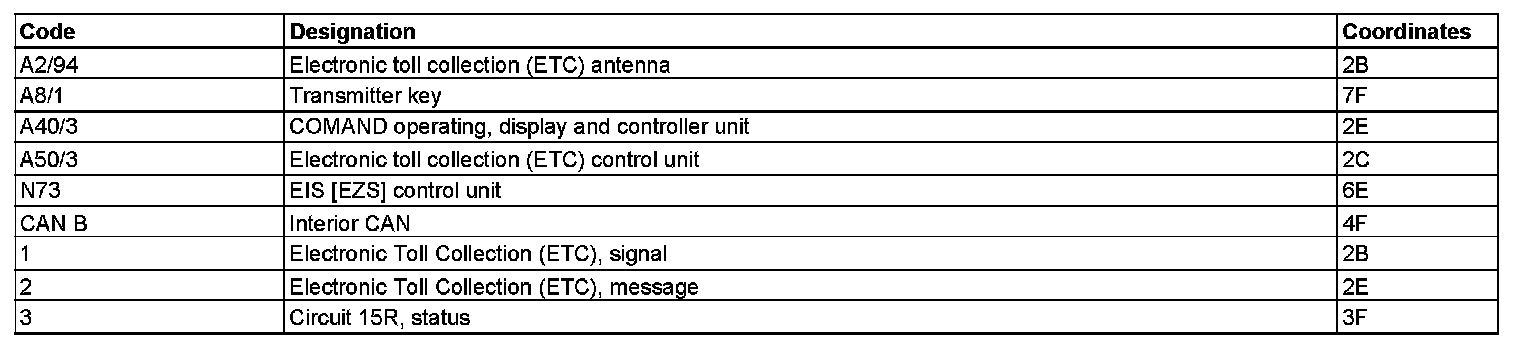

Component Description/Coordinates, A2/94 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
