PE82.85-P-2101MAF Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101MAF
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- control unit A40/3
- refinement package
- as of model year 2009

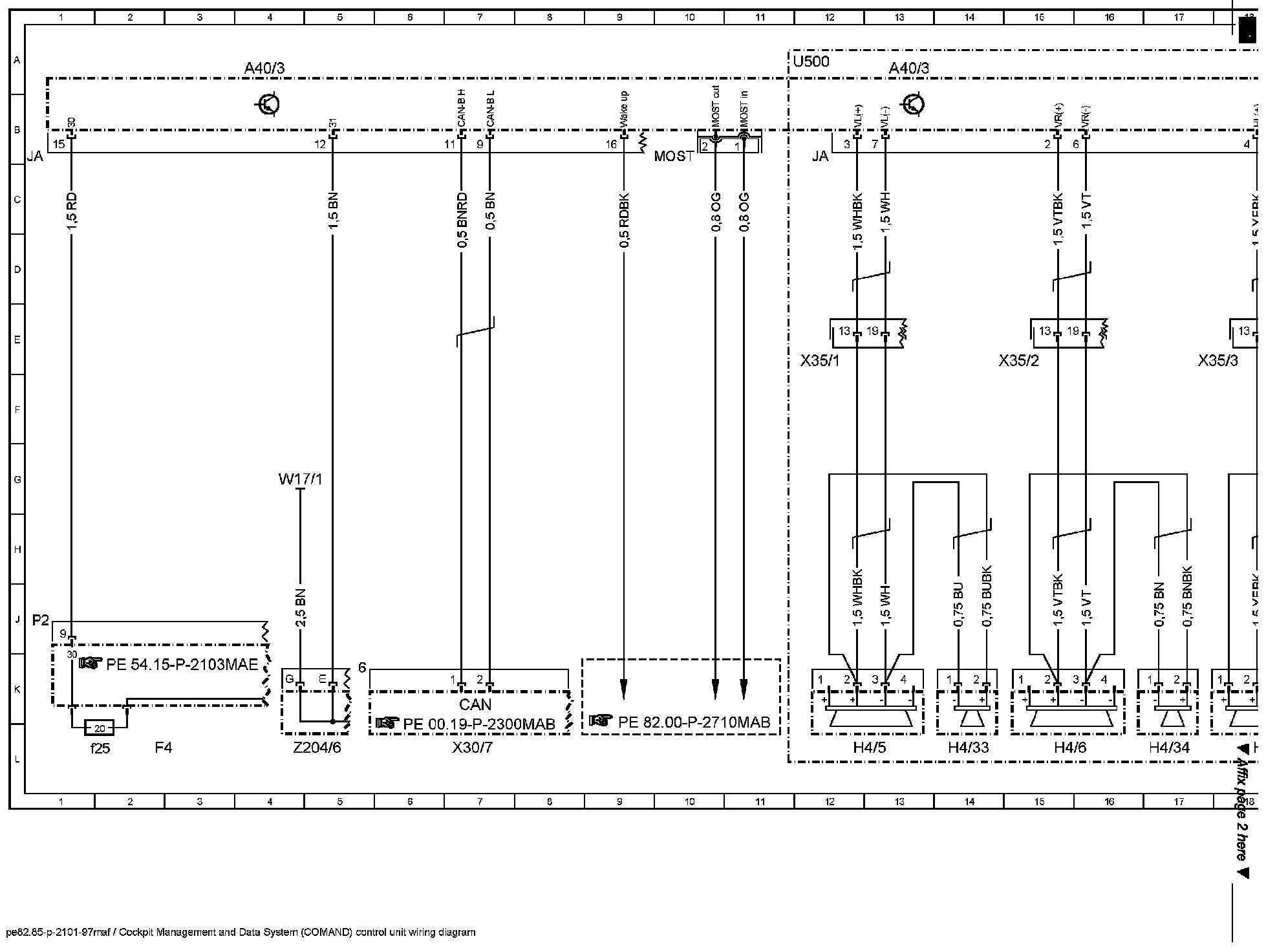

Wiring Diagram (Part 1):

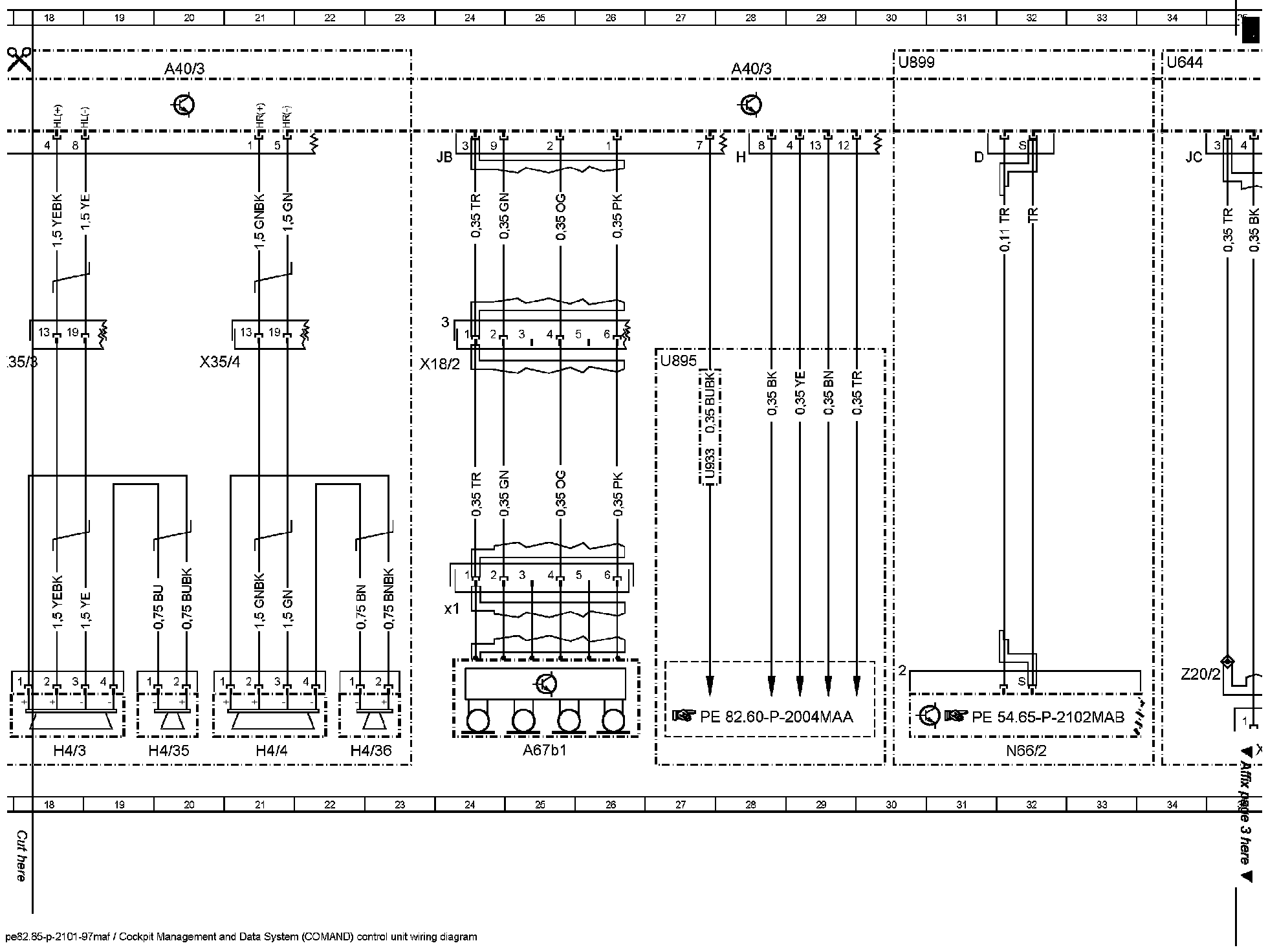

Wiring Diagram (Part 2):

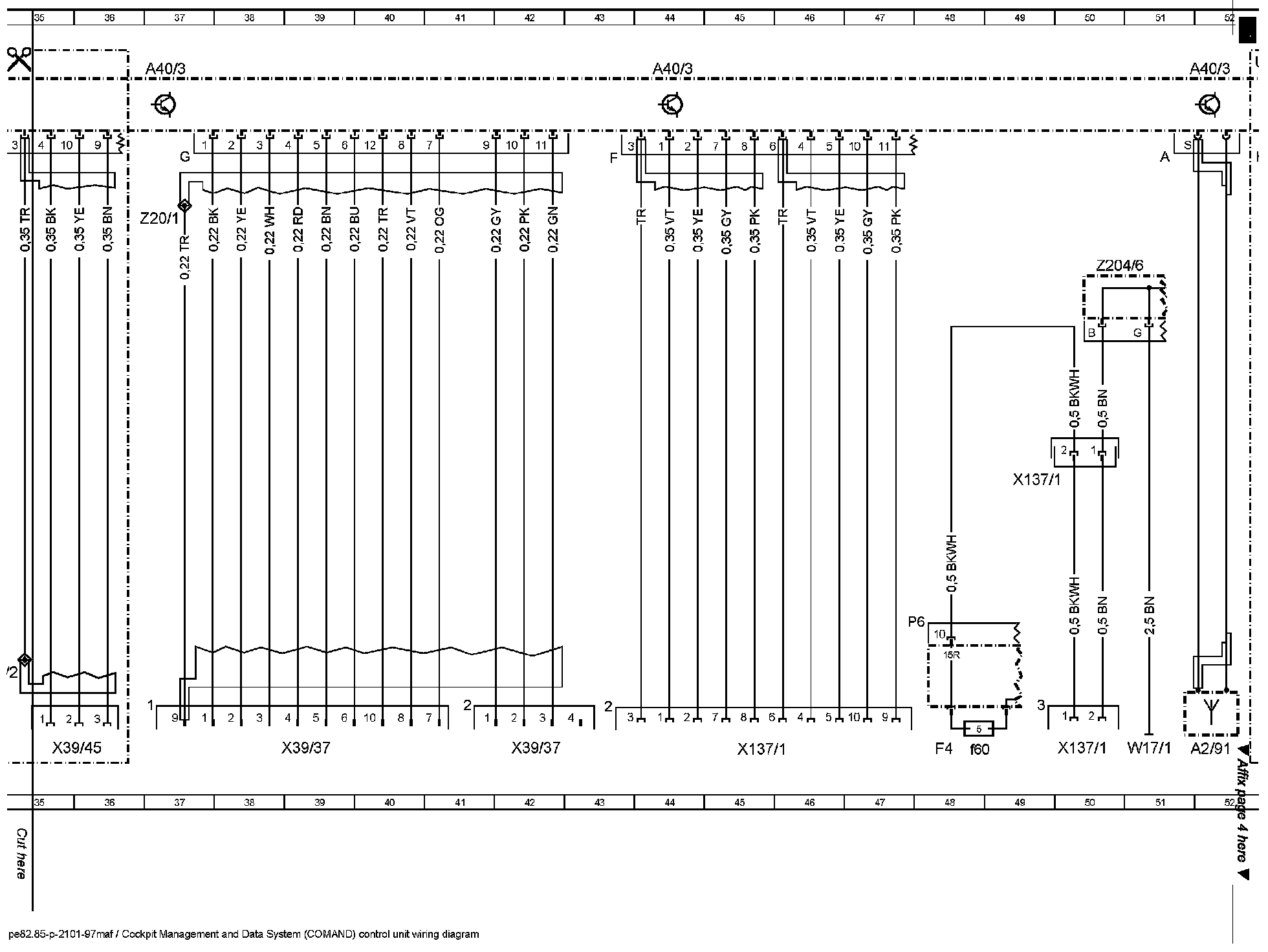

Wiring Diagram (Part 3):

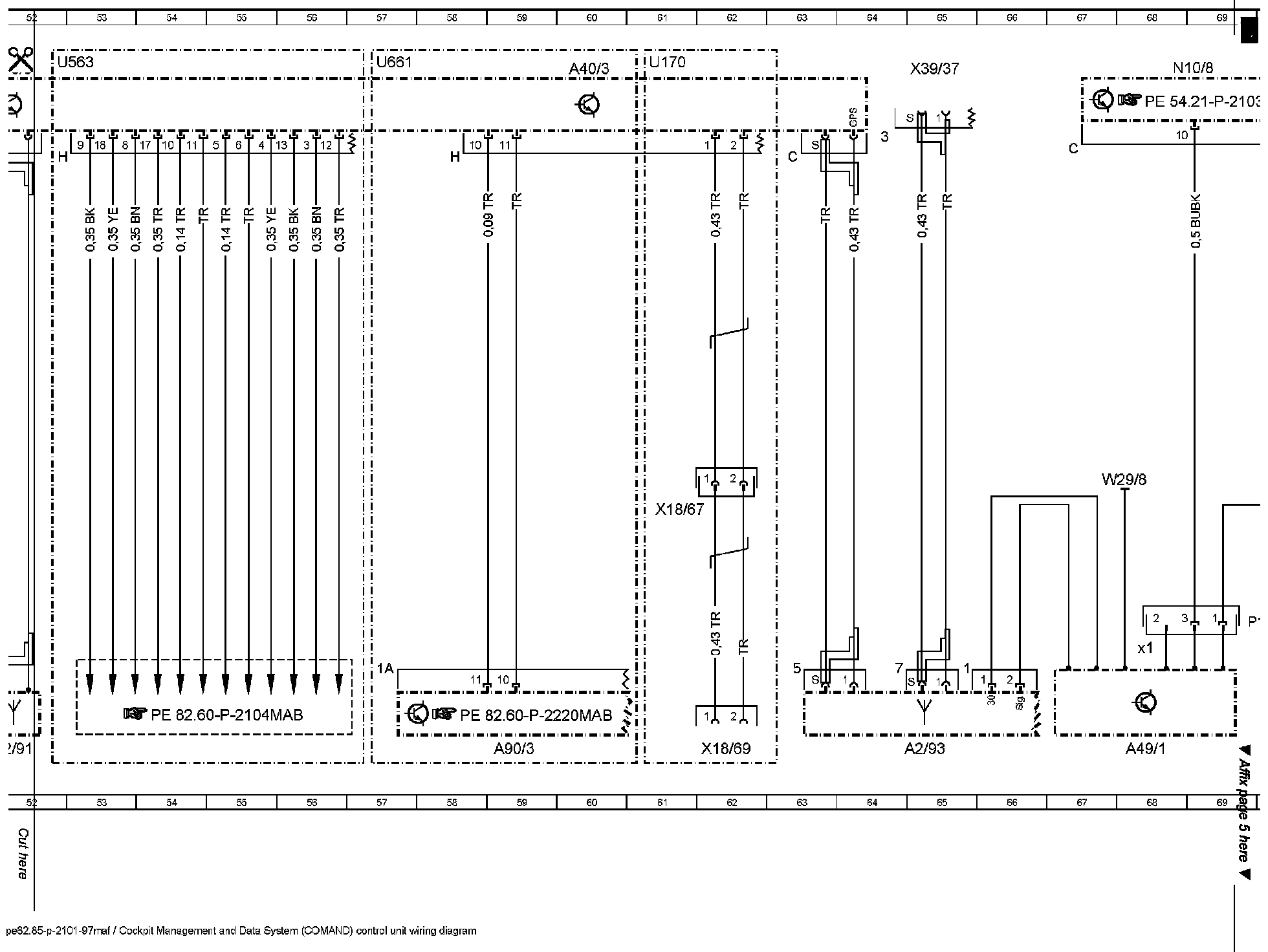

Wiring Diagram (Part 4):

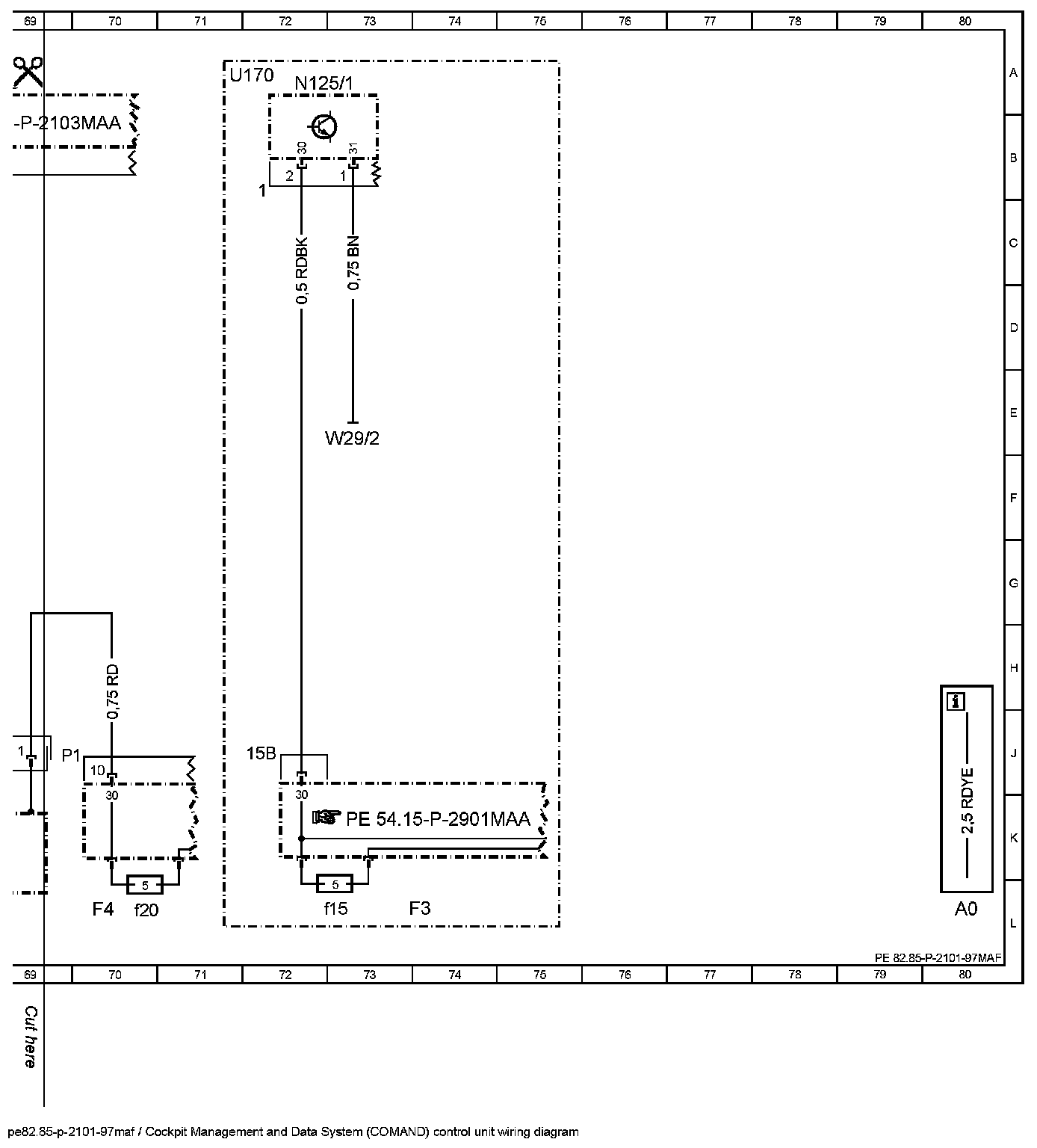

Wiring Diagram (Part 5):

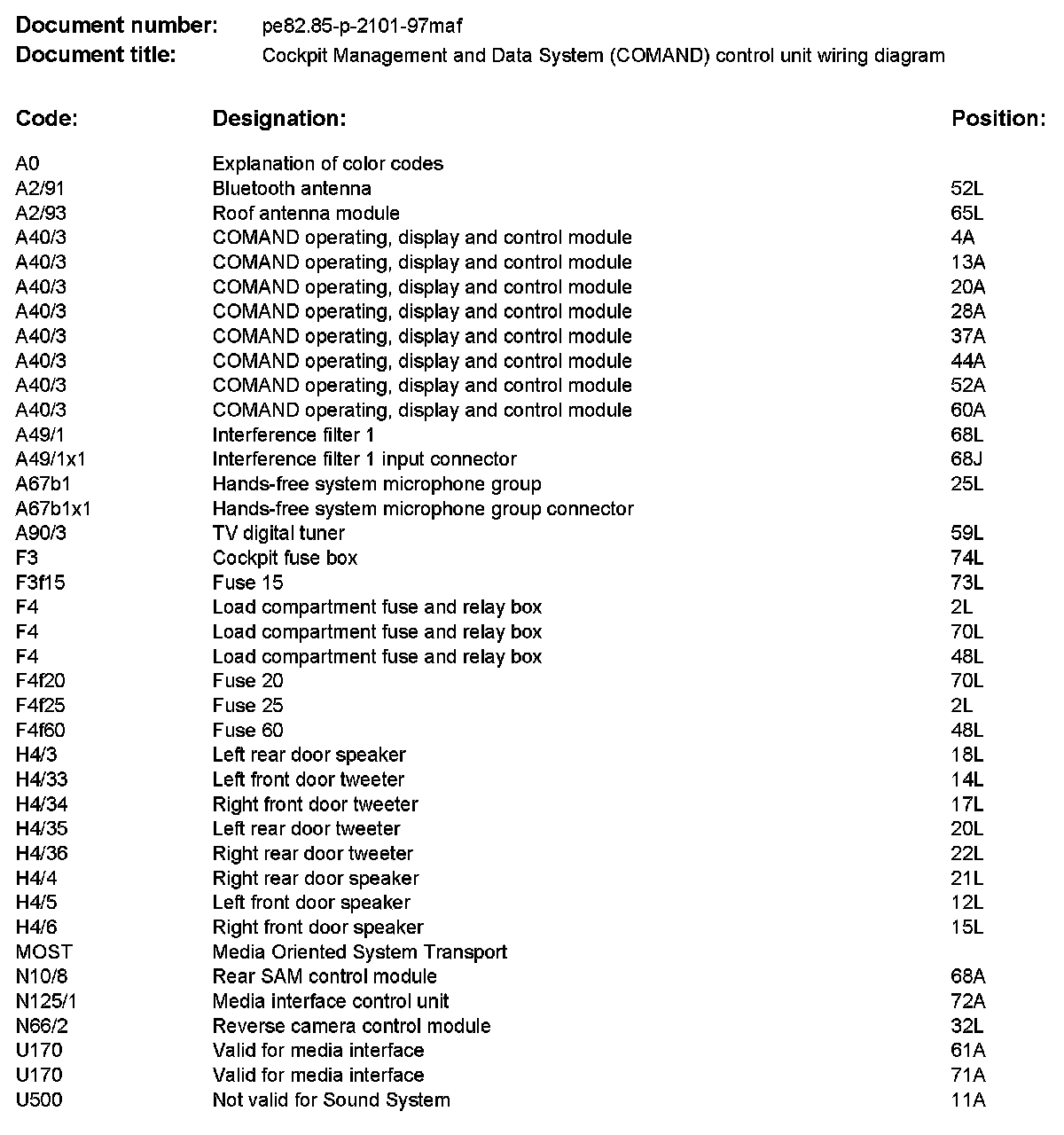

Component Description/Coordinates, A0 To U500:

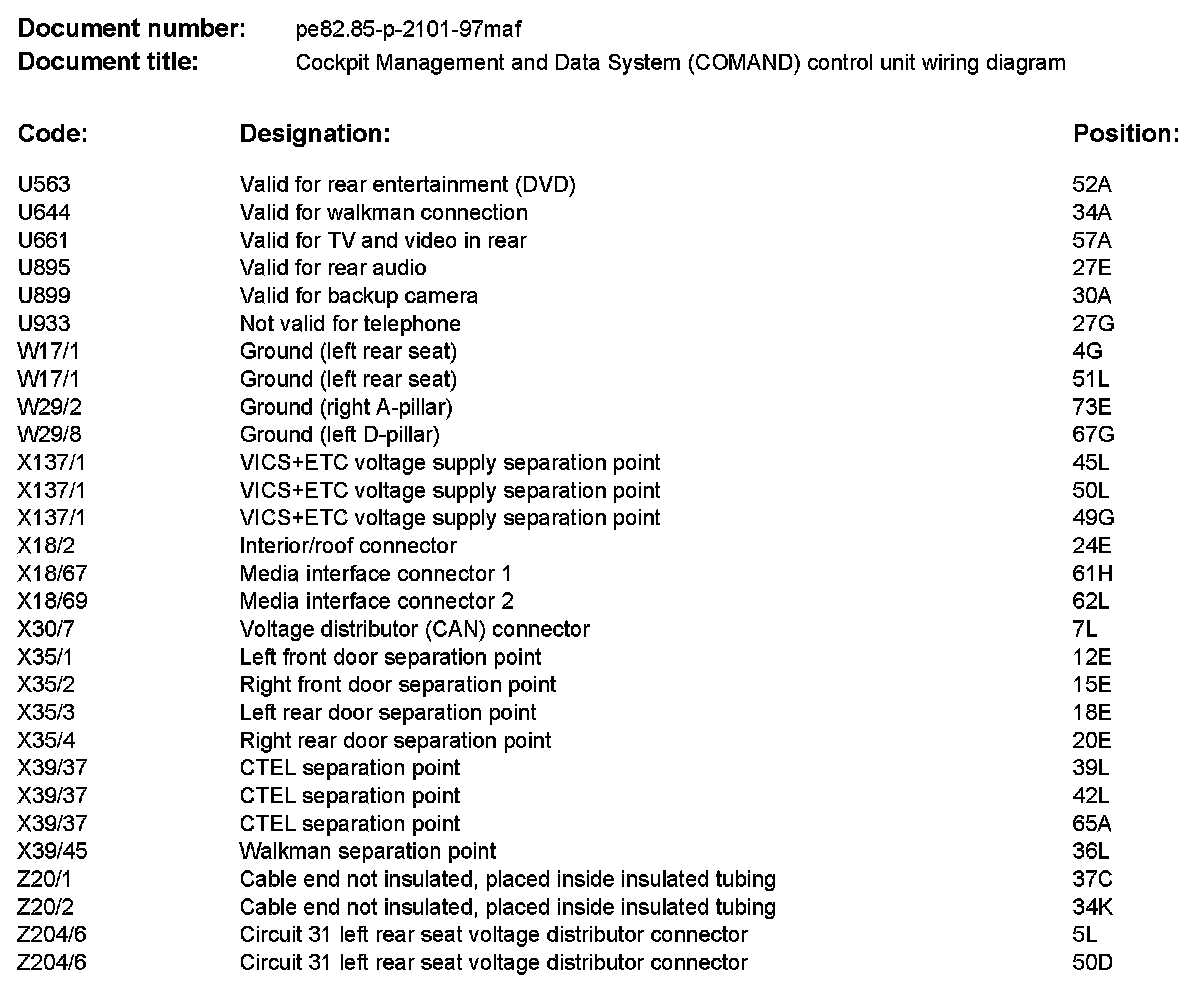

Component Description/Coordinates, U563 To Z204/6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
