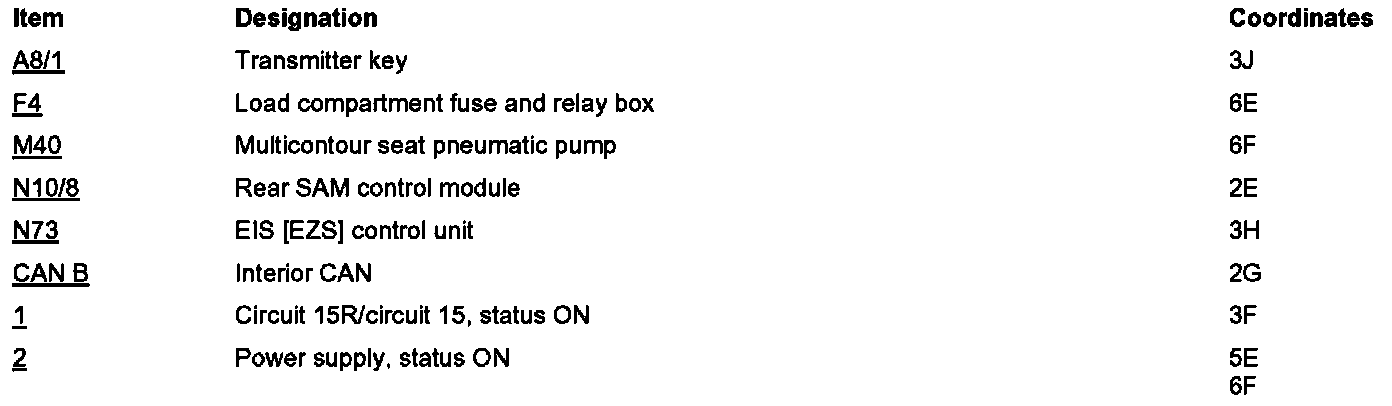

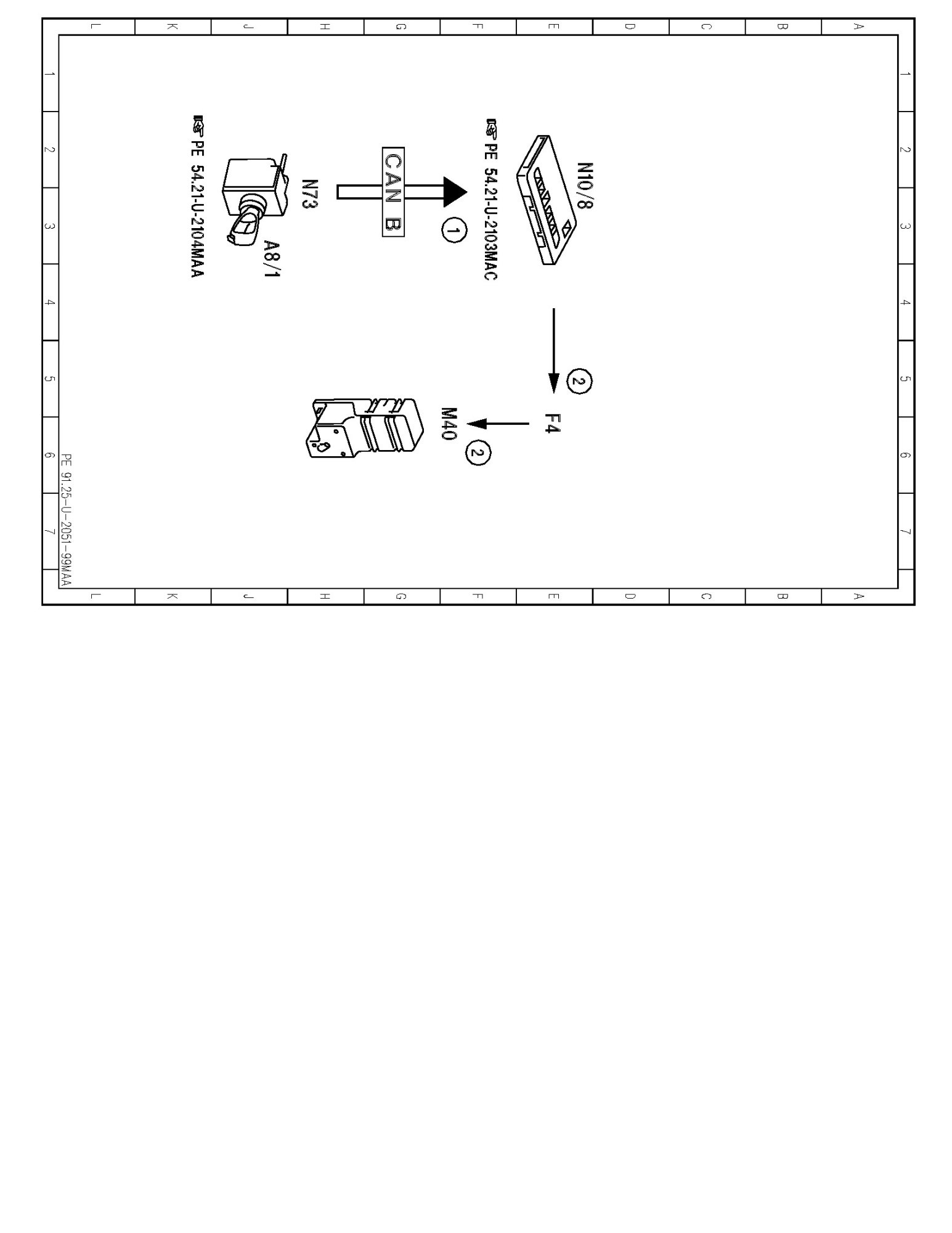

PE91.25-U-2051MAA Electrical Function Schematic For Multi Contour Seat

PE91.25-U-2051MAA Electrical Function Schematic For Multi Contour Seat
- with CODE (409) Left/right front multi contour seat











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
