Trunk / Liftgate Closer Module: Service and Repair

AR72.20-P-7551GZ Remove/Install Rear Door Closing Control Module
- up to model year 2009 [model 164.1]
- with CODE (890) Automatic rear-end door [model 164.1]
- with CODE (890) Automatic liftgate [model 164.8]

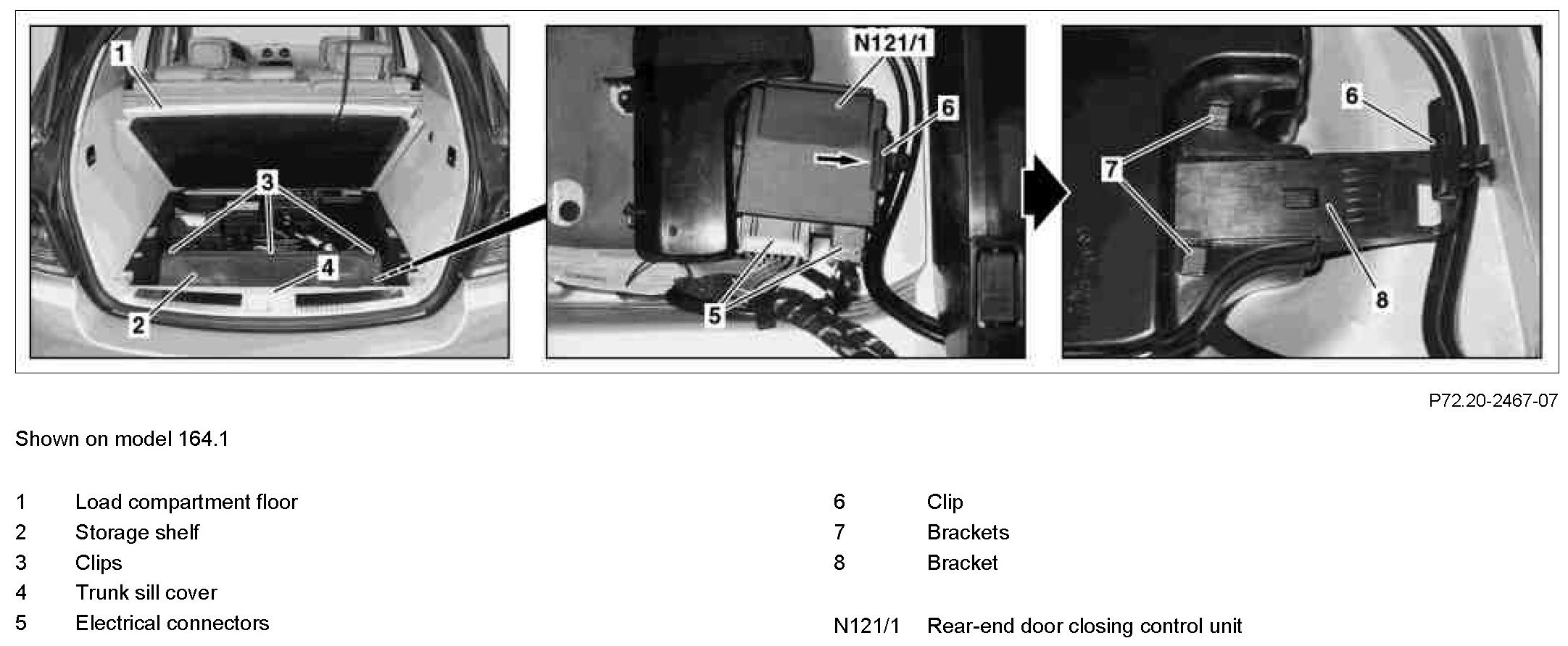

Component Identification:

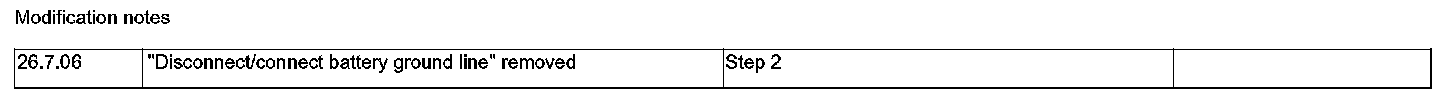

Modification Notes:

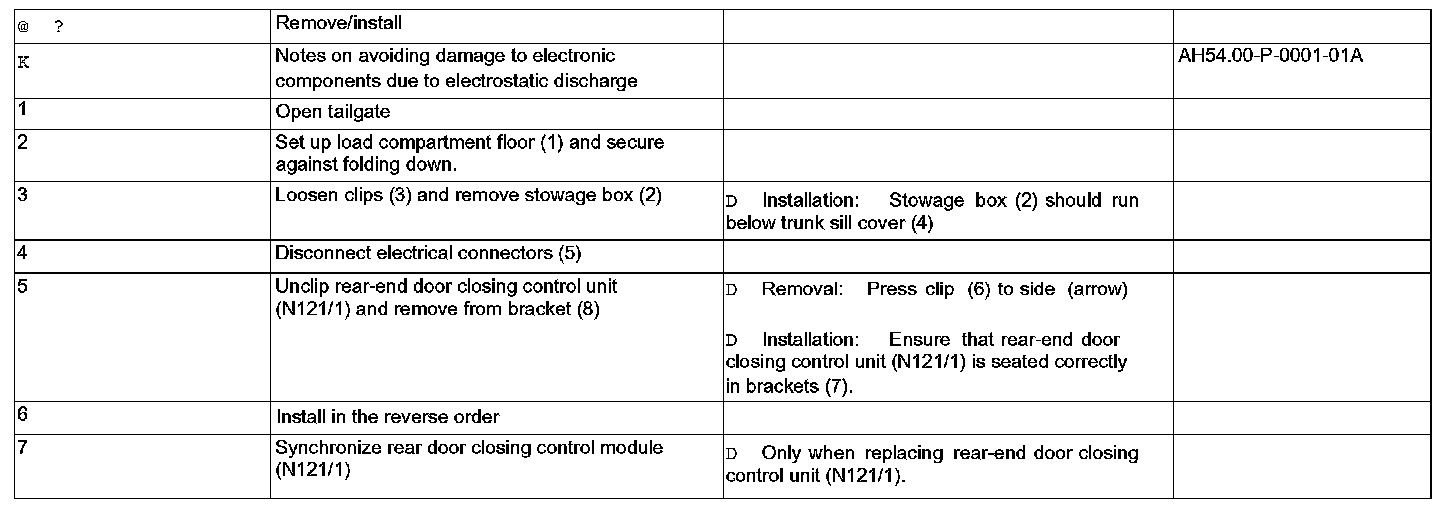

Steps 1 - 7:
