PE88.79-P-2054MAA Function Schematic for Electric Passenger-side Outside Mirror Park Position

Function Schematic for Electric Passenger-Side Outside Mirror Park Position PE88.79-P-2054MAA
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- except CODE (494) USA version
- refinement package
- as of model year 2009

Function Diagram (Part 1):

Function Diagram (Part 2):

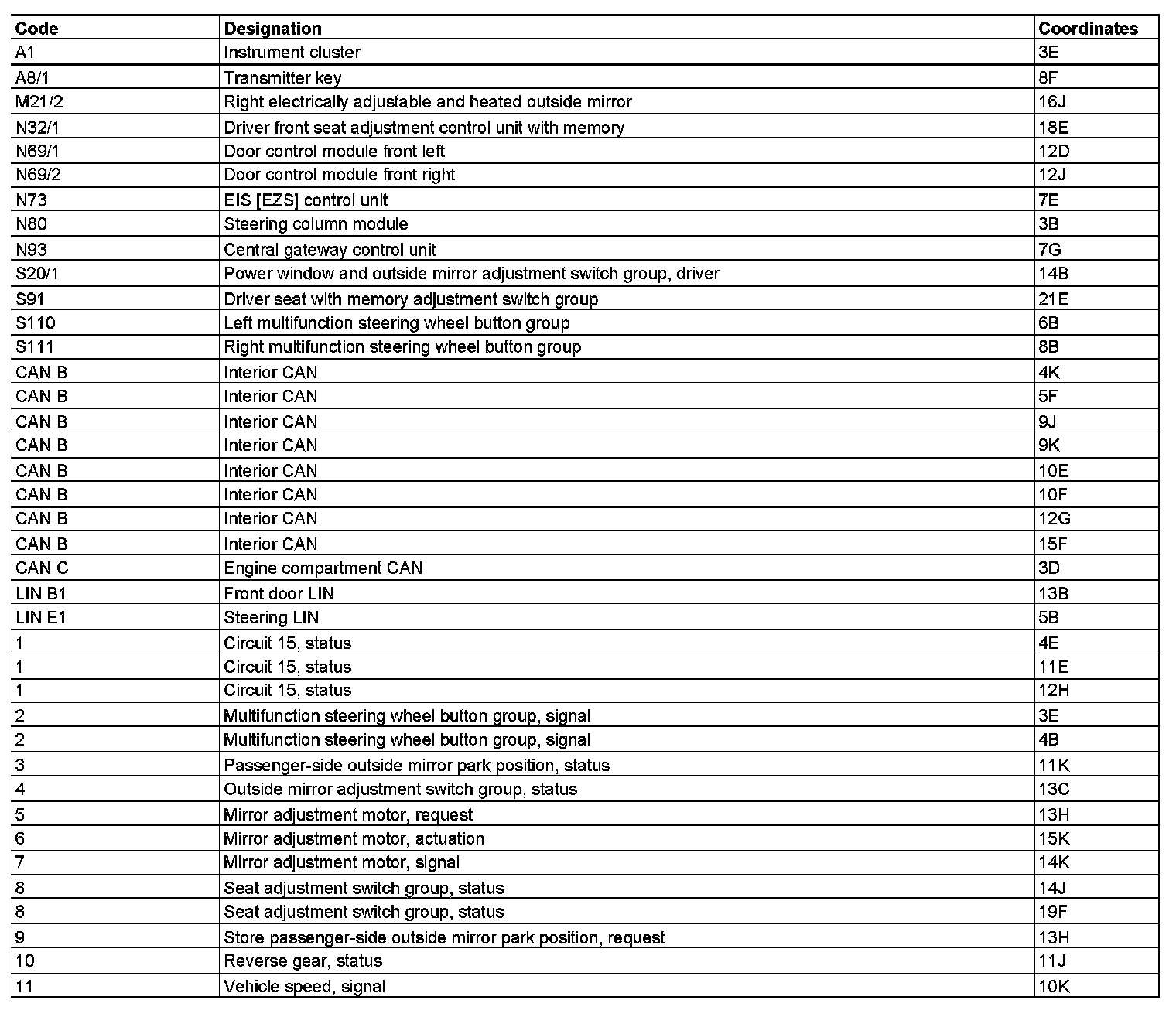

Component Description/Coordinates, A1 To 11:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
