AR72.20-P-3650GZA Remove/Install Tailgate Handle Molding



AR72.20-P-3650GZA Remove/Install Tailgate Handle Molding
- Inner tailgate handle

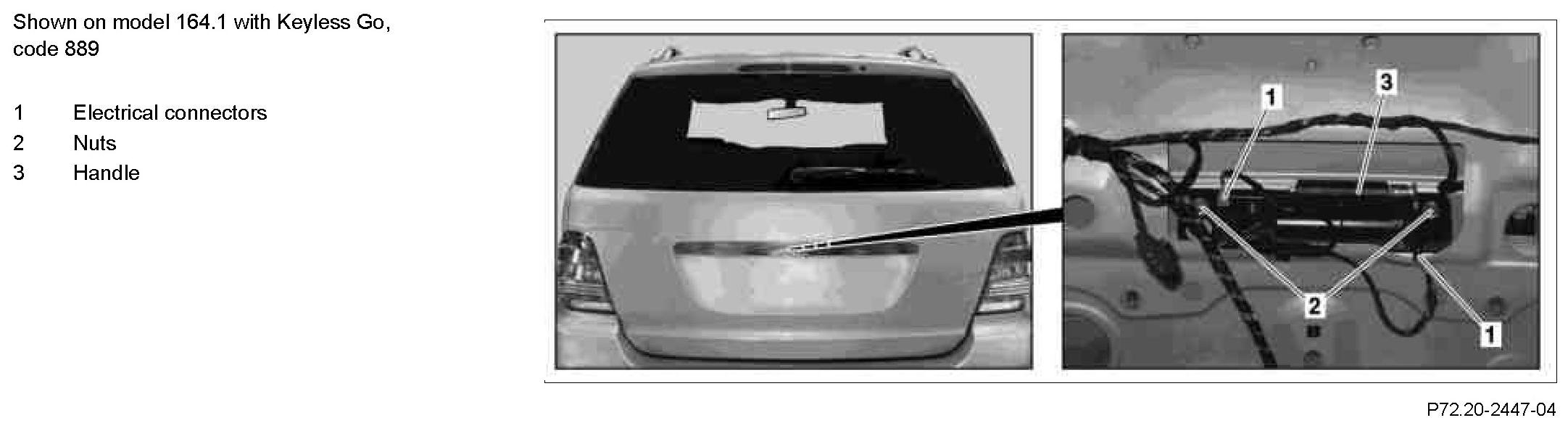

Component Identification:

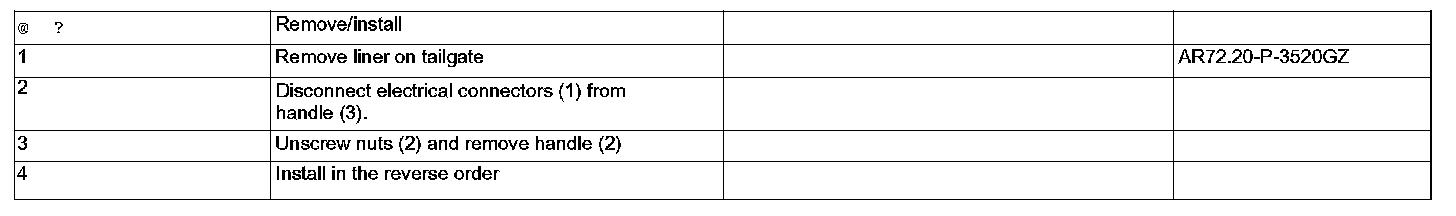

Steps 1 - 4:
