PE82.60-P-2059MAB Electrical Function Diagram for Volume/Sound Settings, Function

Electrical Function Diagram for Volume/Sound Settings, Function PE82.60-P-2059MAB
- with CODE (525) MB Audio 50 radio
- with CODE (511) Audio 50 with CD changer
- refinement package
- as of model year 2009

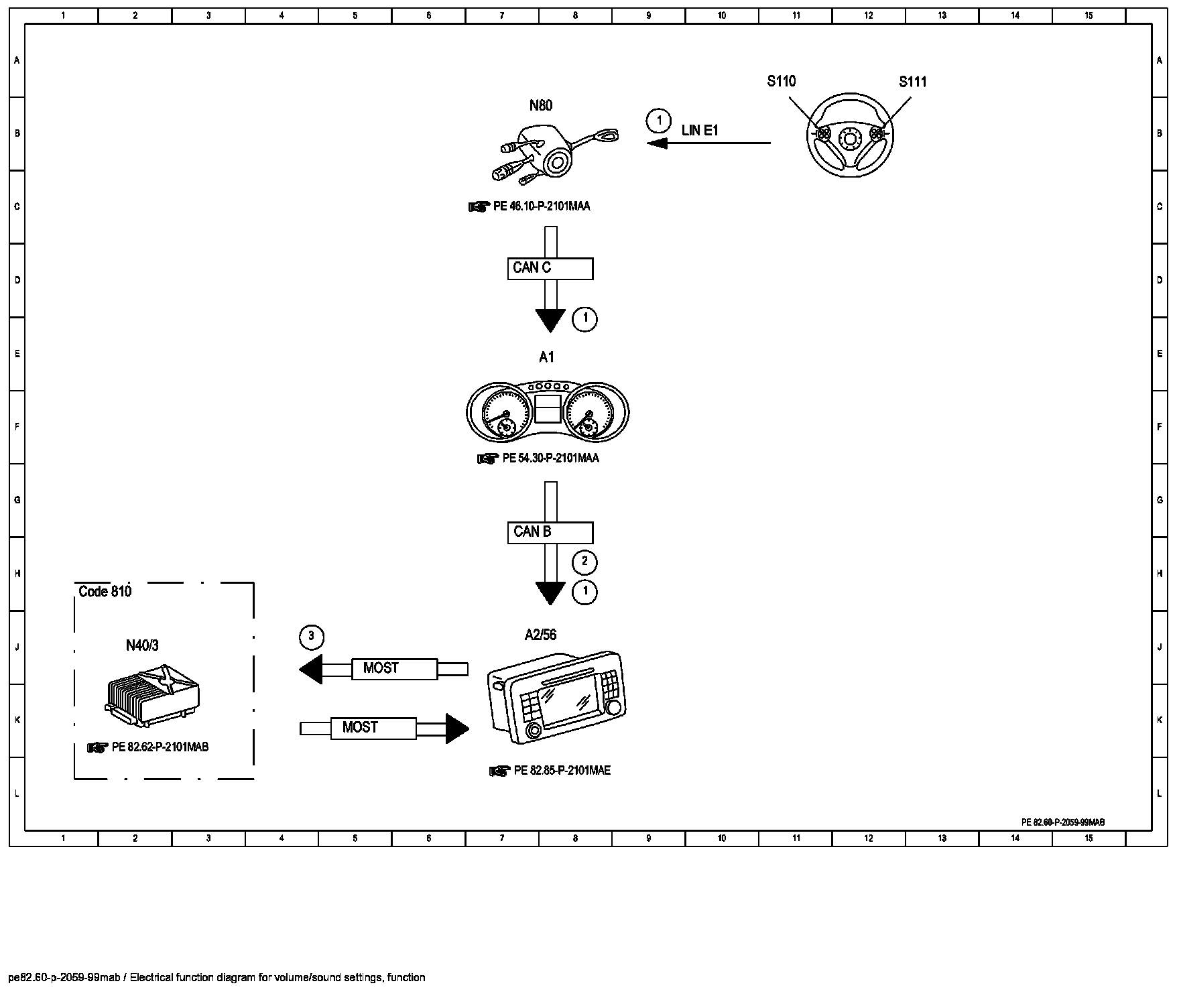

Function Diagram:

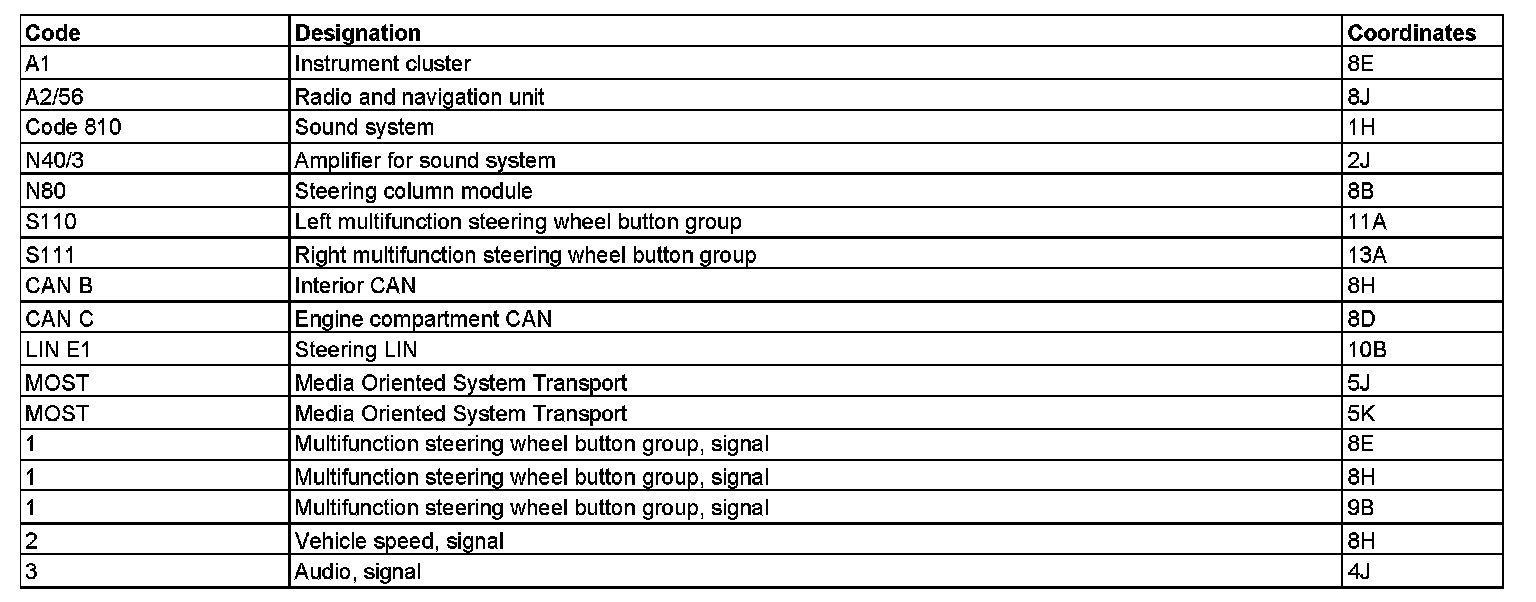

Component Description/Coordinates, A1 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
