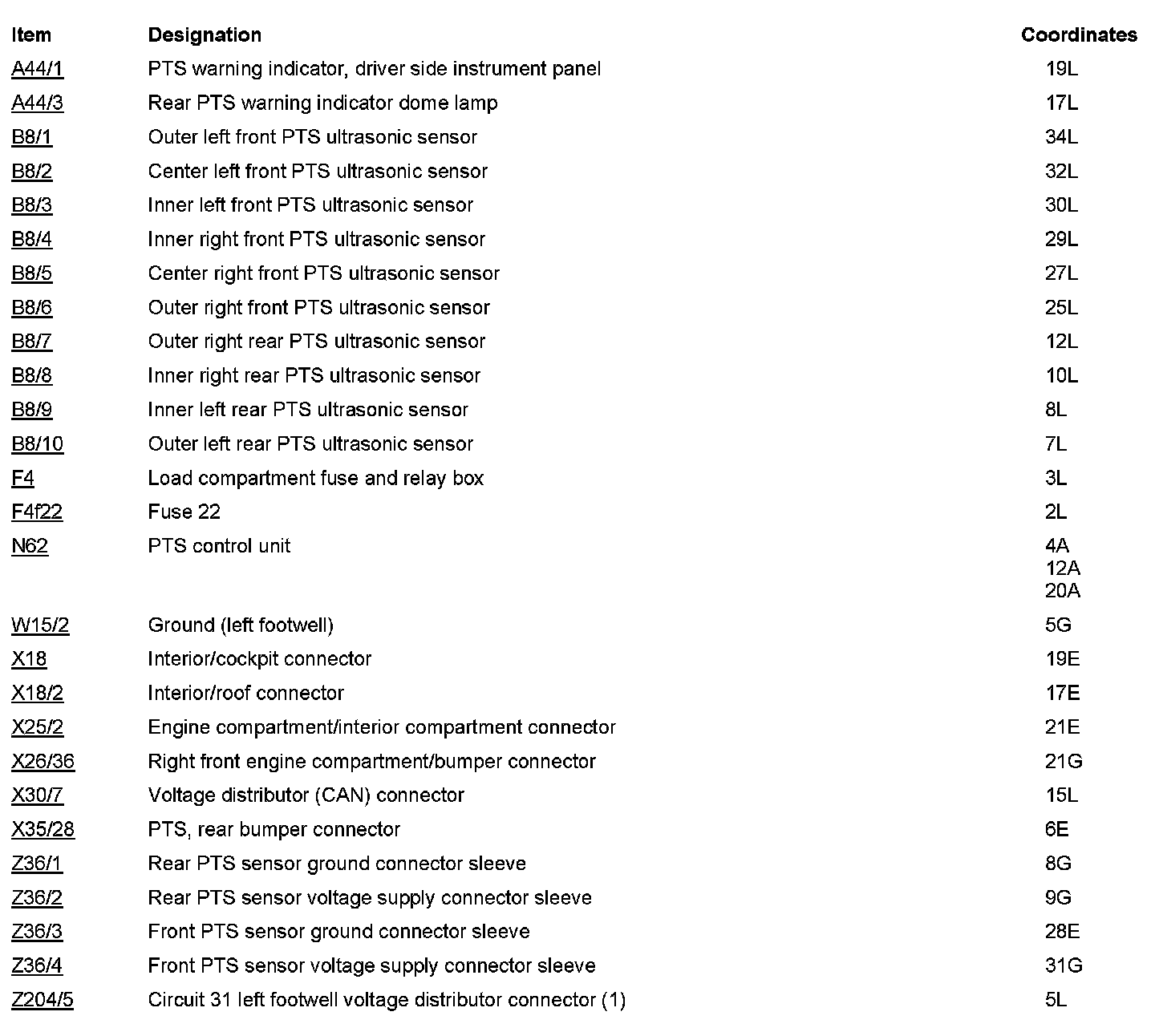

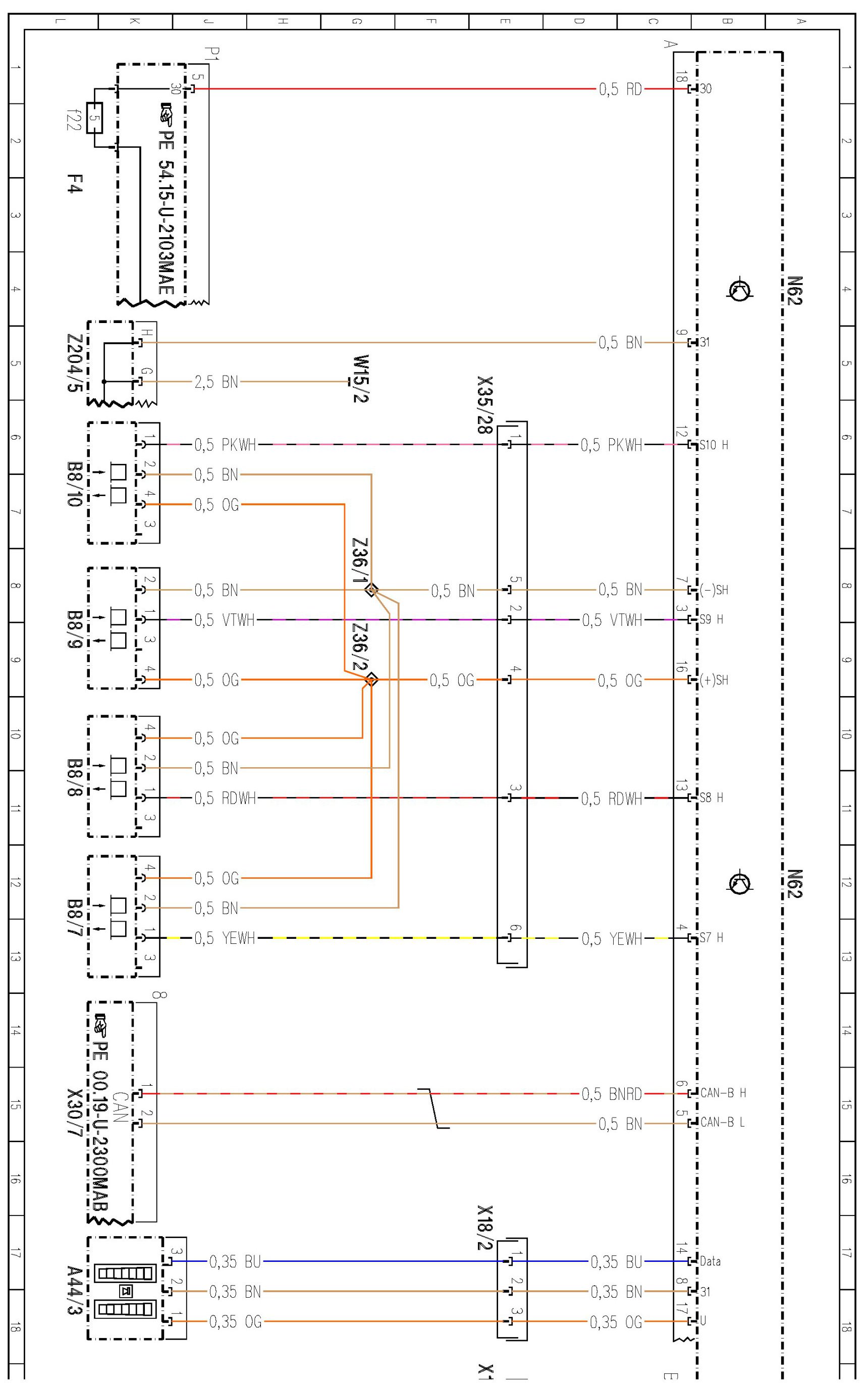

PE54.65-U-2101MAB Parktronic System (PTS) Control Module



PE54.65-U-2101MAB Parktronic System (PTS) Control Module
- with CODE (220) PARKTRONIC
- control unit N62


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
