AZ82.70-P-0005-01GZ Retrofit Portable CTEL Mount For Hands-Free System

AZ82.70-P-0005-01GZ Retrofit Portable CTEL Mount For Hands-free System

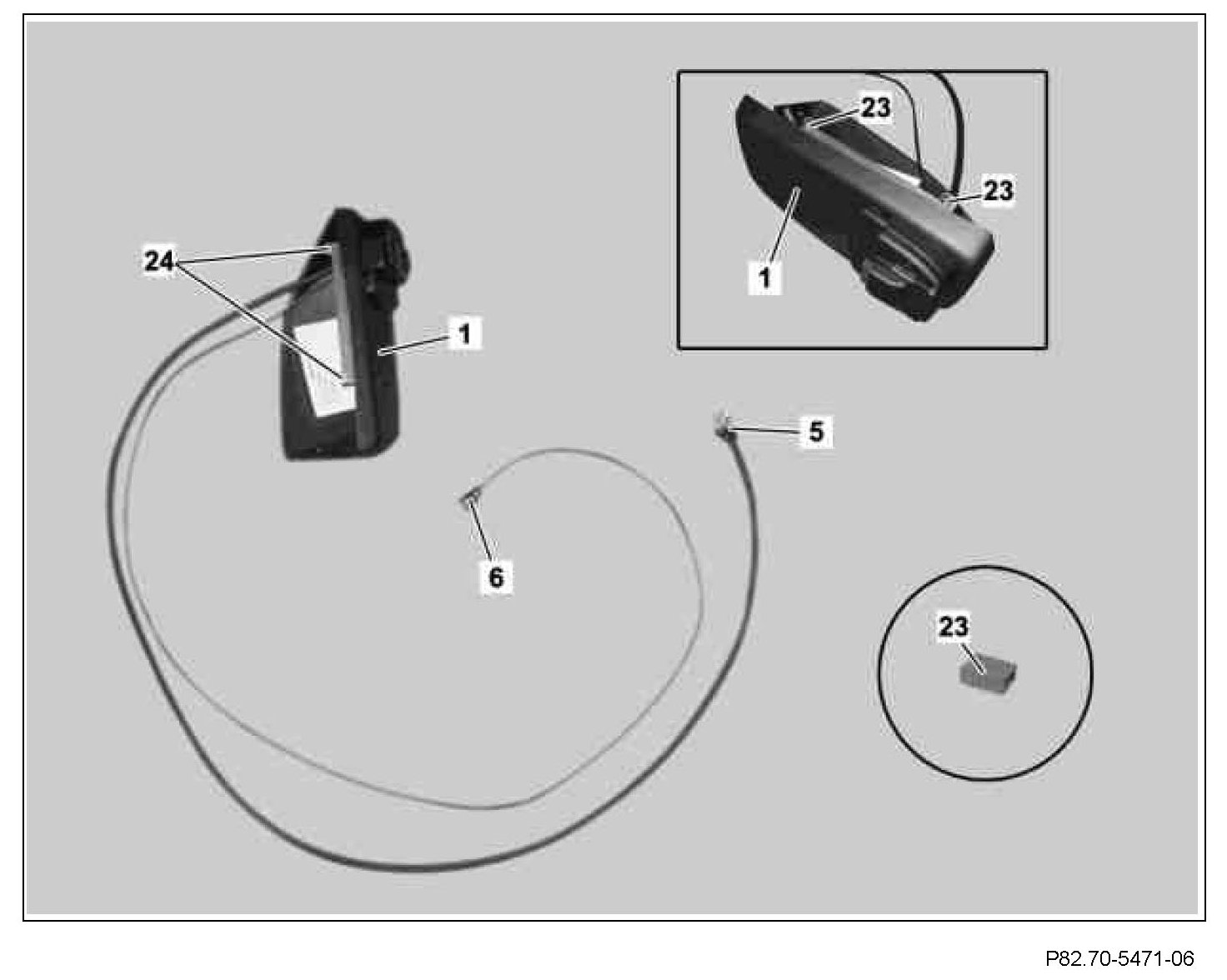

1 Route antenna line connector (6) to the right-hand footwell.

The antenna line connector (6) will later be connected to the antenna line plug.

2.1 For vehicles with a carbon cover below the radio, stick the two enclosed spacers (23) to the fastening hooks (24) of the telephone console with PSC adapter (1).

Telephone console connector (5) is already connected to the interface.

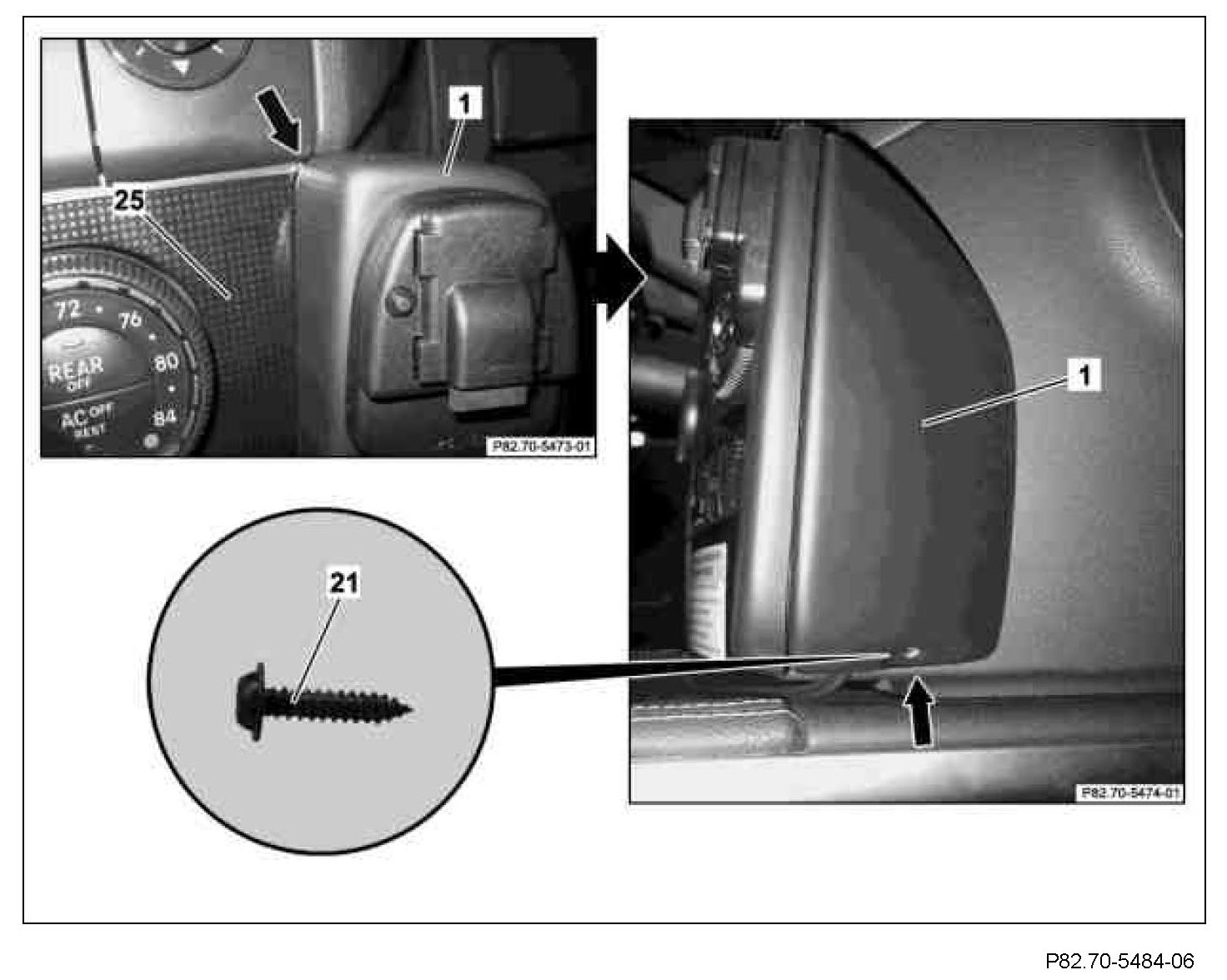

3 Position telephone console with PSC adapter (1) as shown in the figure on cover (25) (see arrow at top left).
4 Pre-drill bolt hole (see arrow at bottom right) for attaching the telephone console with PSC adapter (1) with dia = 2 mm
5 Attach telephone console with PSC adapter (1) using the sheet metal screw (21) included in the parts kit (see arrow at bottom right).
