Alarm Horn: Service and Repair



AR80.50-P-9840GZ Remove/install ATA Alarm Signal Siren
- with CODE (551) Anti-theft alarm system (ATA [EDW])

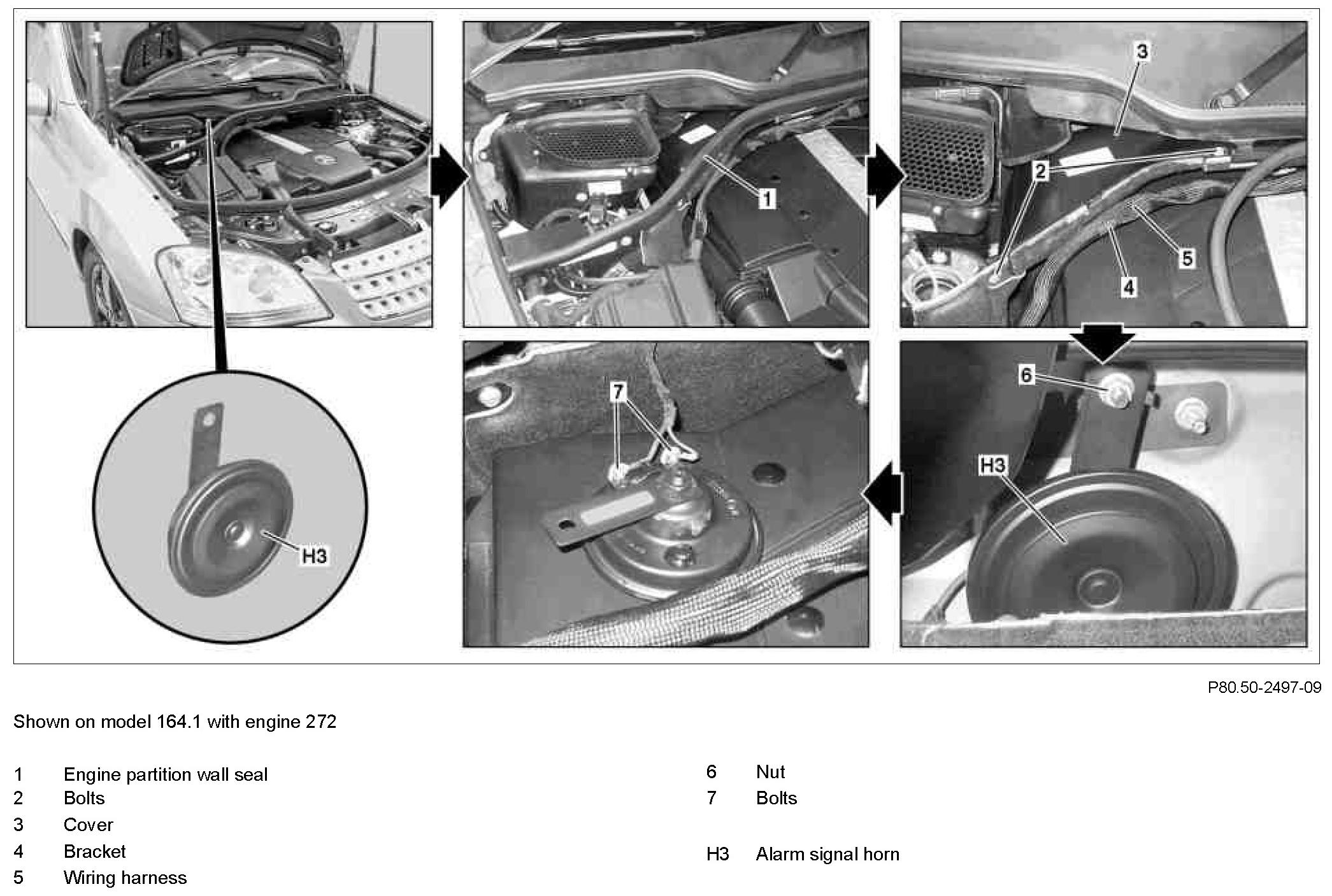

Component Identification:

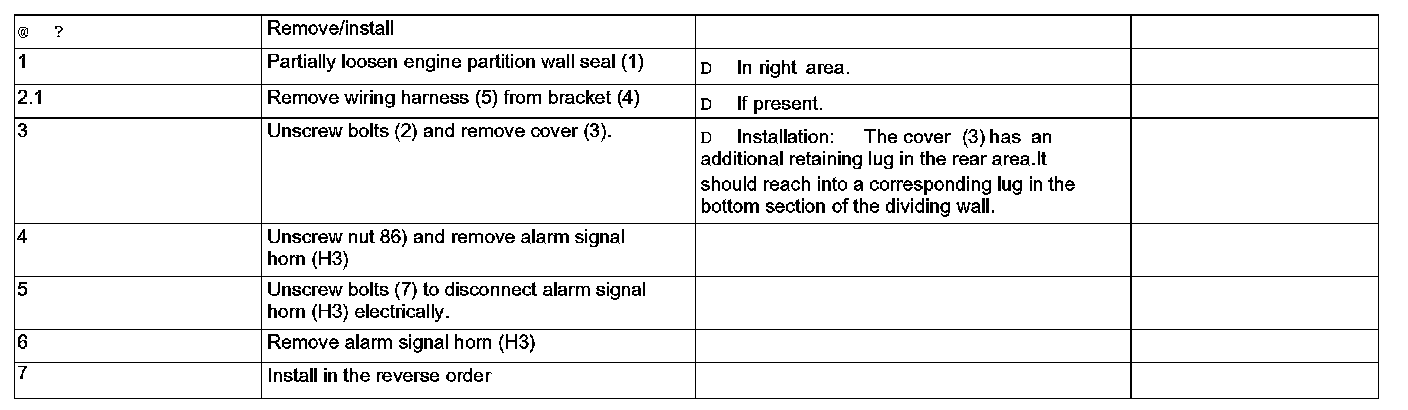

Steps 1 - 7:
