GF40.15-P-0002-04RT Tire Pressure Loss Warning (RDW) Activation

GF40.15-P-0002-04RT Tire pressure loss warning (RDW) activation
- with CODE (477) Tire pressure loss warning
- up to model year 08

Component Identification:

Browsing within a system

General information
The multifunction display (A1p13) is operated using the following buttons:

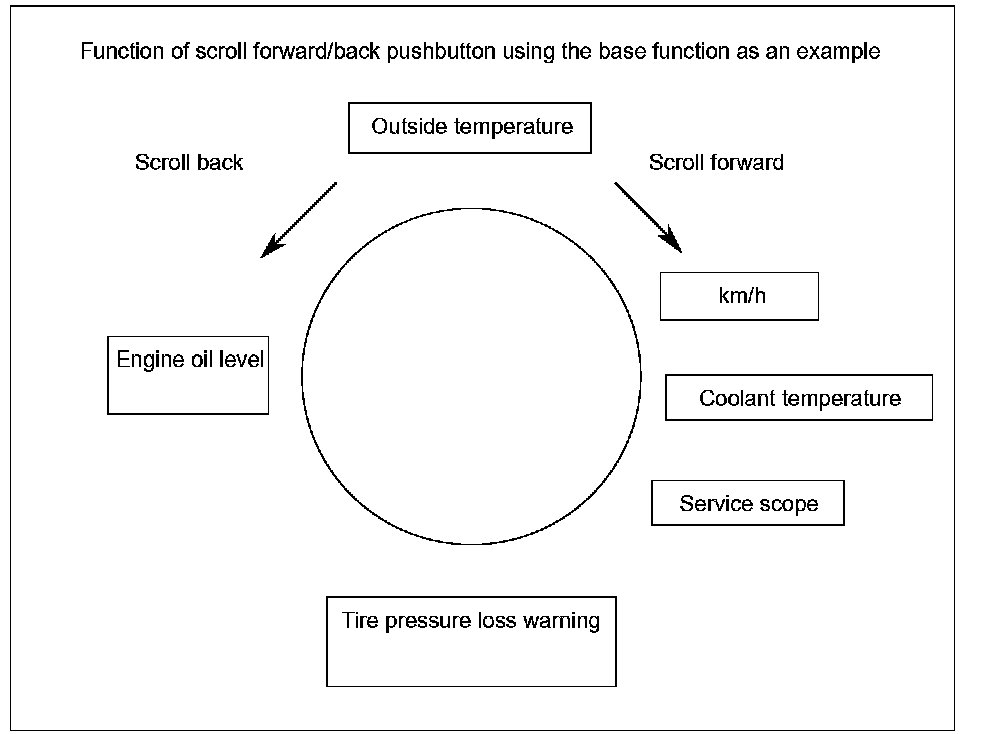

^ Scroll forward/back button
^ System select button (S110s3)
^ + and -, specific function setting and volume control button
^ Accept/terminate phone call button (S111s3)

In the multifunction display, these button can be used to access displays from various systems and to scroll within individual systems.

Activate tire pressure loss warning TPM [RDW]

Function precondition:
^ Transmitter key (A8/1) in position "circuit 15 ON" or in operation.

Function:
^ Continue to press the System selection button until the basic display appears in the multifunction display (total and trip odometer).
^ Press the scroll forward and back button until "TIRE PRESSURE MONITORING REACTIVATION WITH +" appears.
