Level Control Solenoid Valve: Service and Repair



AR32.31-P-0650RT Removing and installing level control valve unit

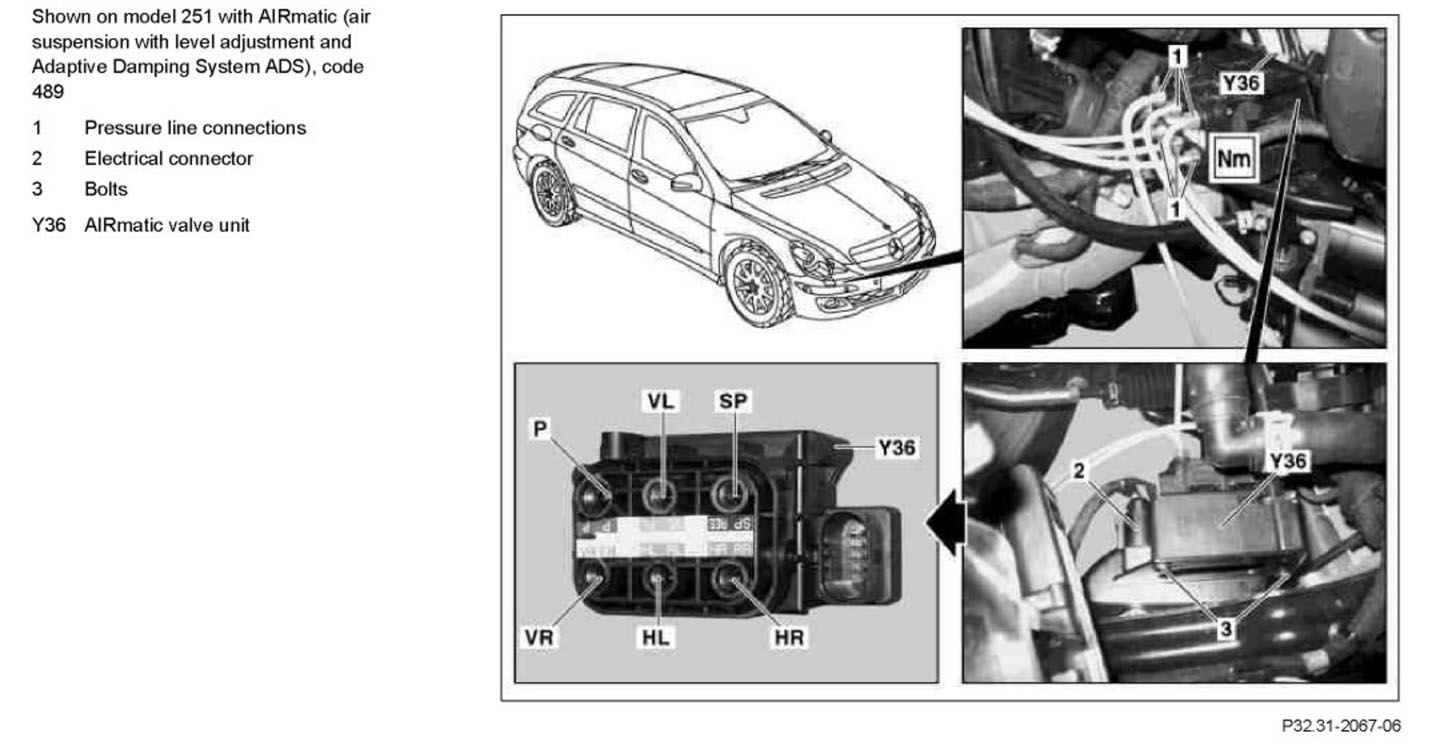

Component Identification:

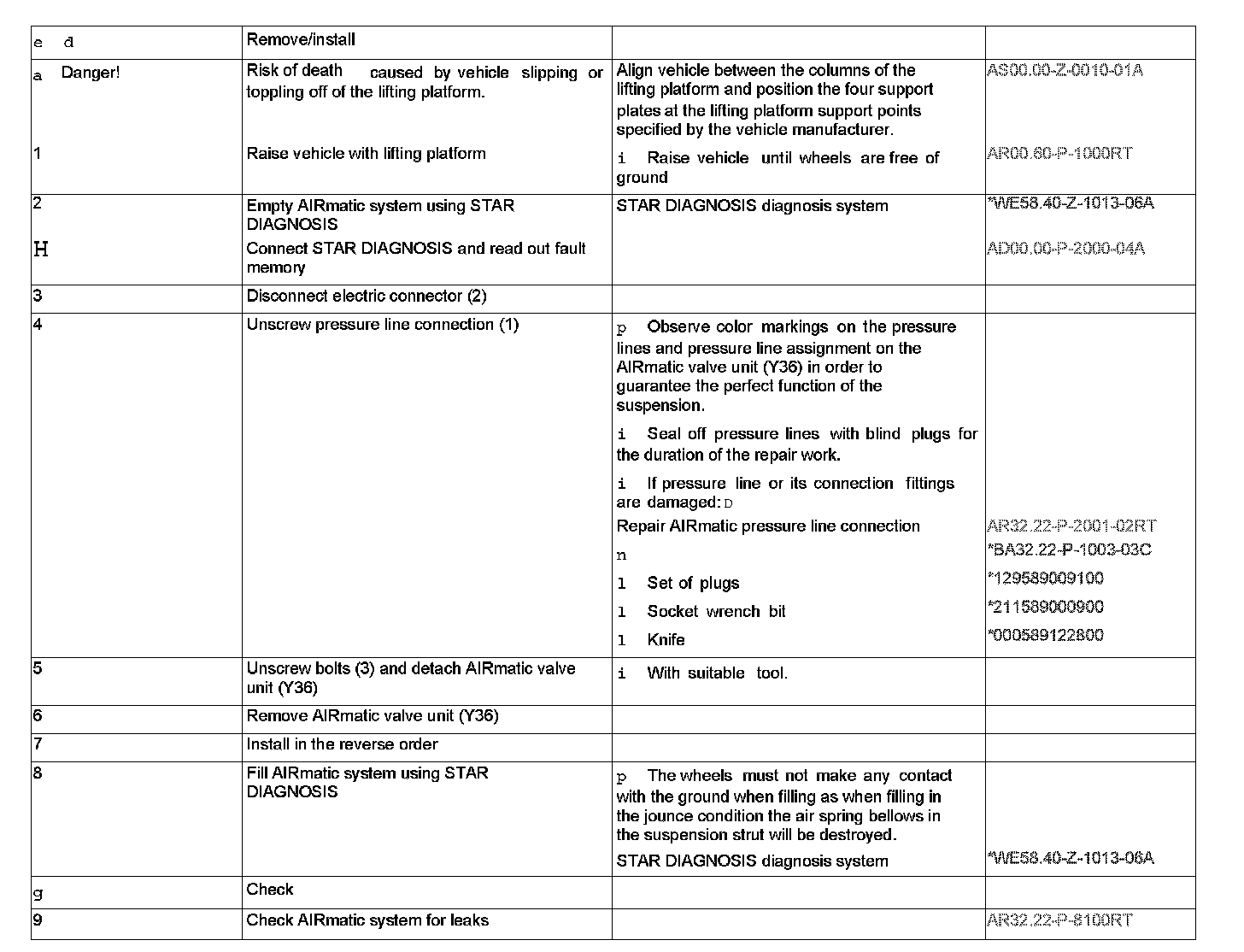

Steps 1-9:




Air suspension:

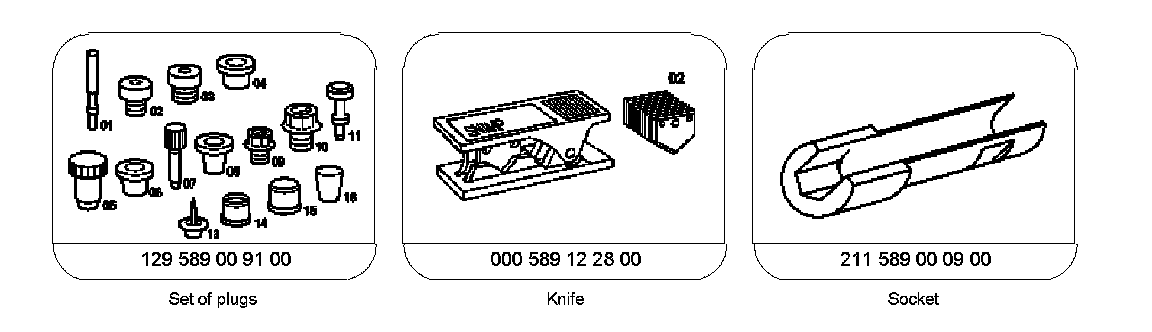

Special Tools:

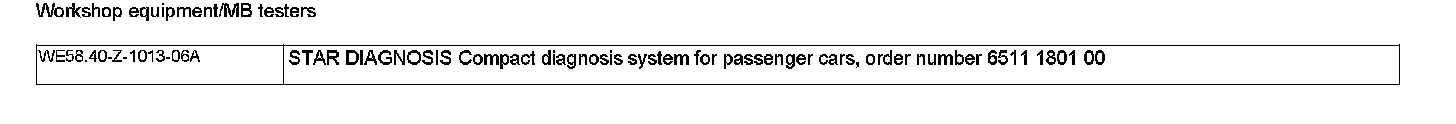

Workshop equipment/MB testers:
