AR54.15-P-1259RT Remove/Install Housing For Fuse and Relay Box



AR54.15-P-1259RT Remove/Install Housing For Fuse And Relay Box
- Engine compartment, right front

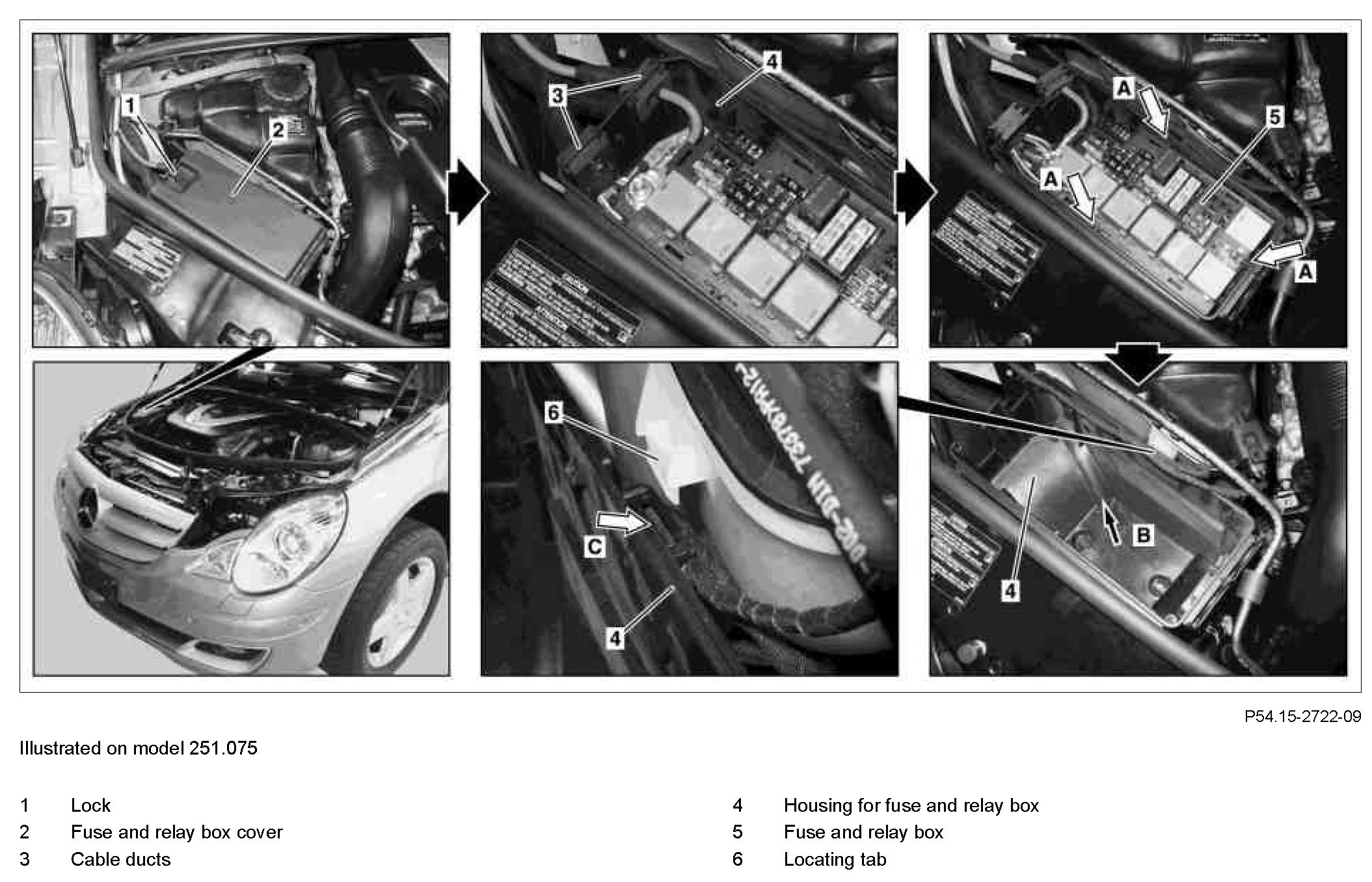

Component Identification:

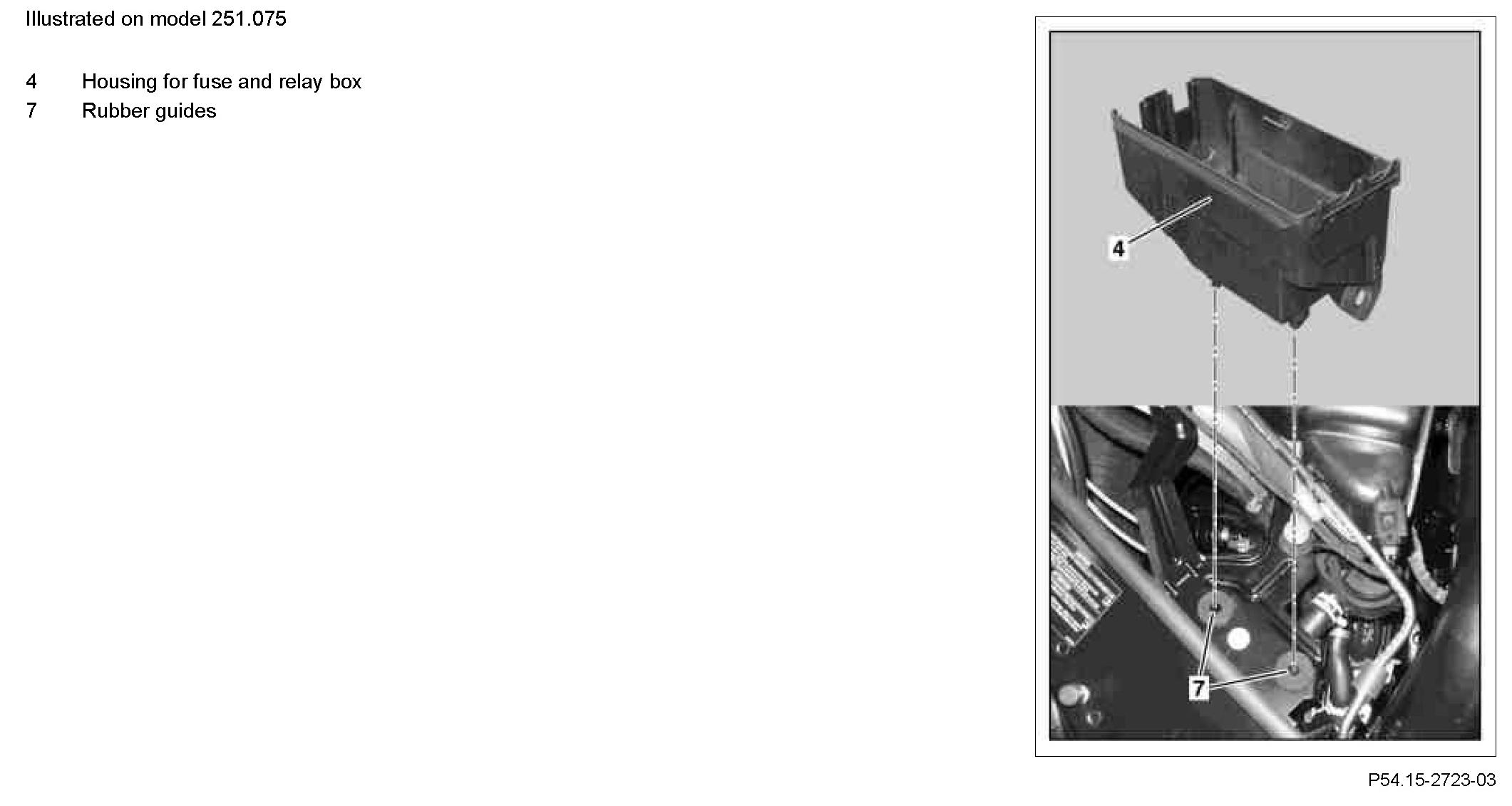

Component Identification:

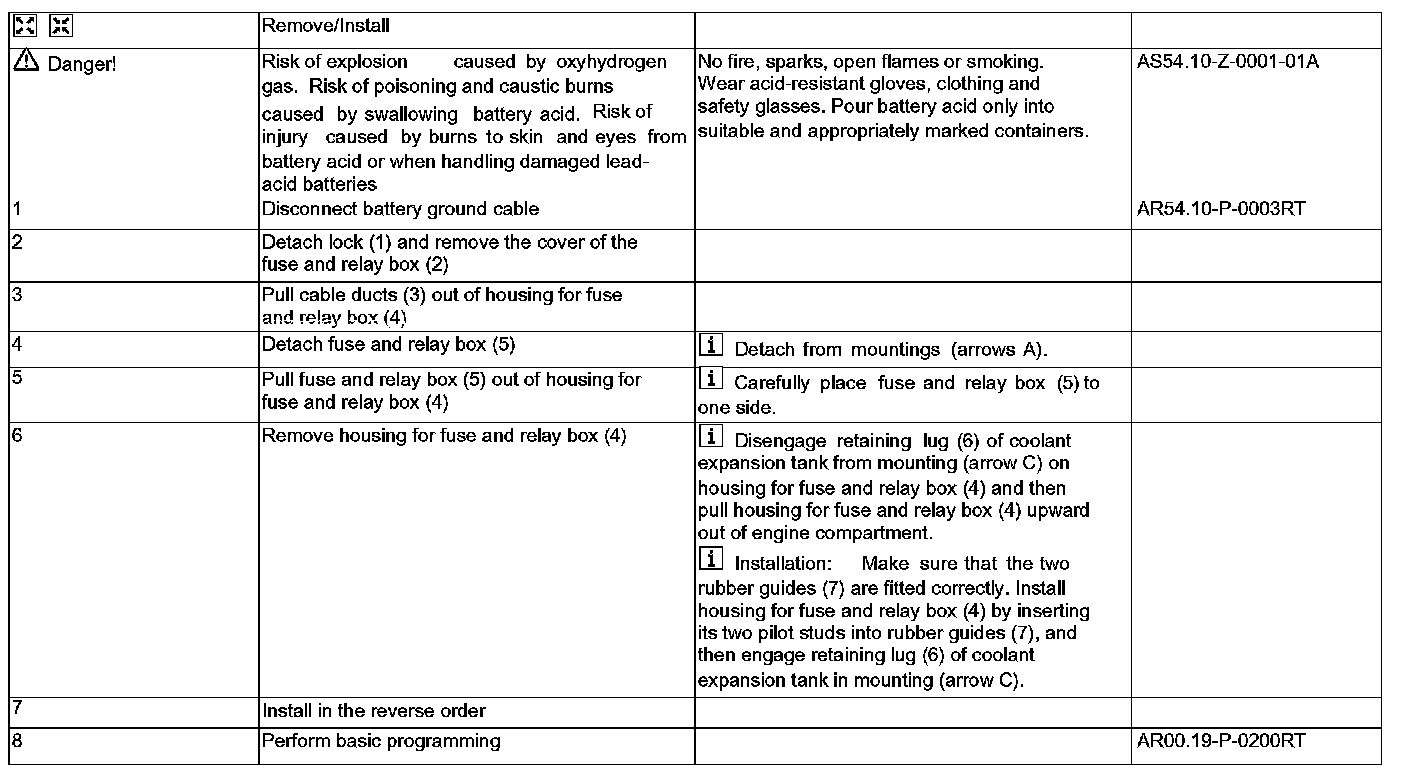

Steps 1 - 8:
