AR54.10-P-0005RT Removing and Installing Battery
AR54.10-P-0005RT Removing and Installing Battery
AR54.10-P-0005RT Removing And Installing Battery

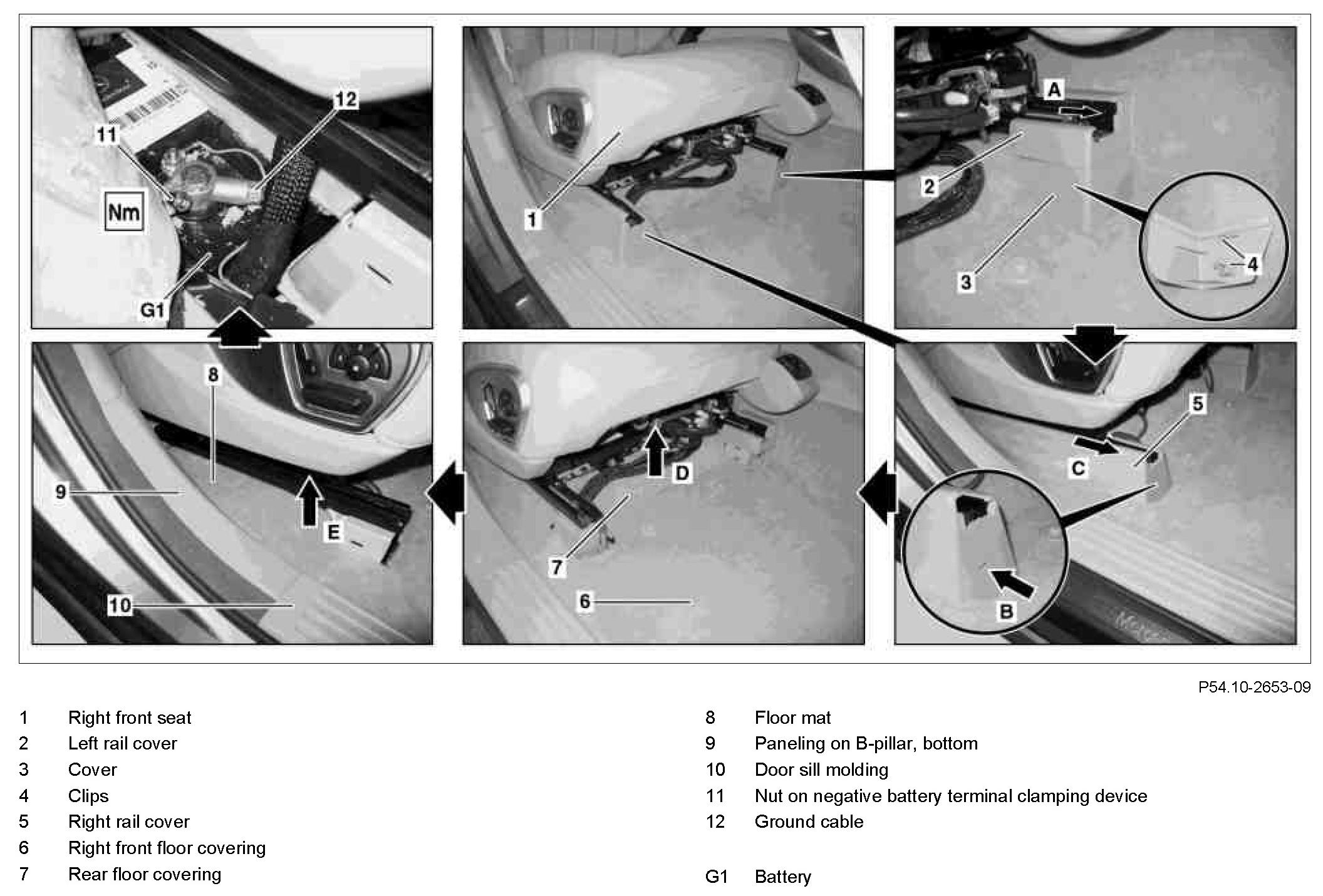

Component Identification:

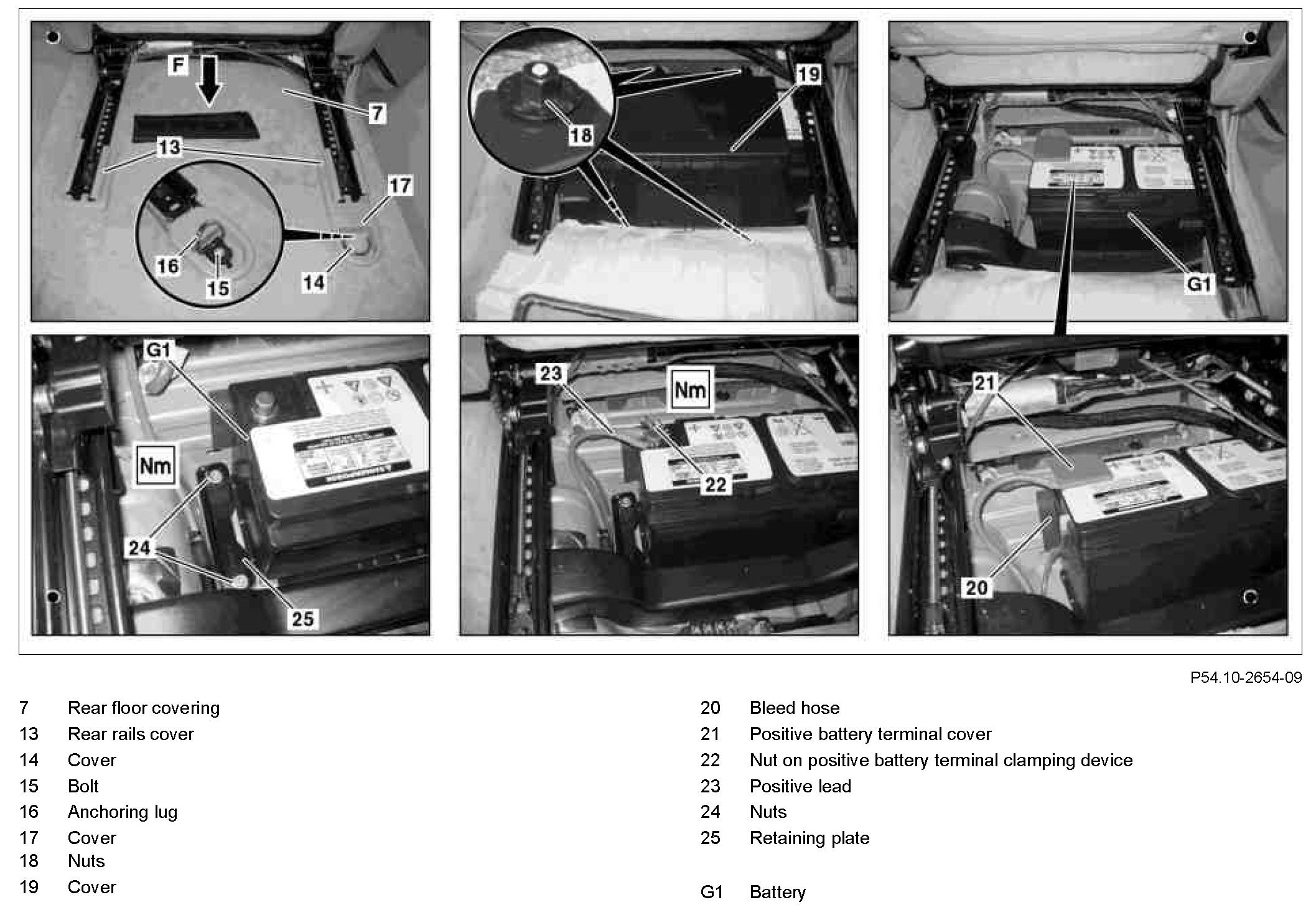

Component Identification:

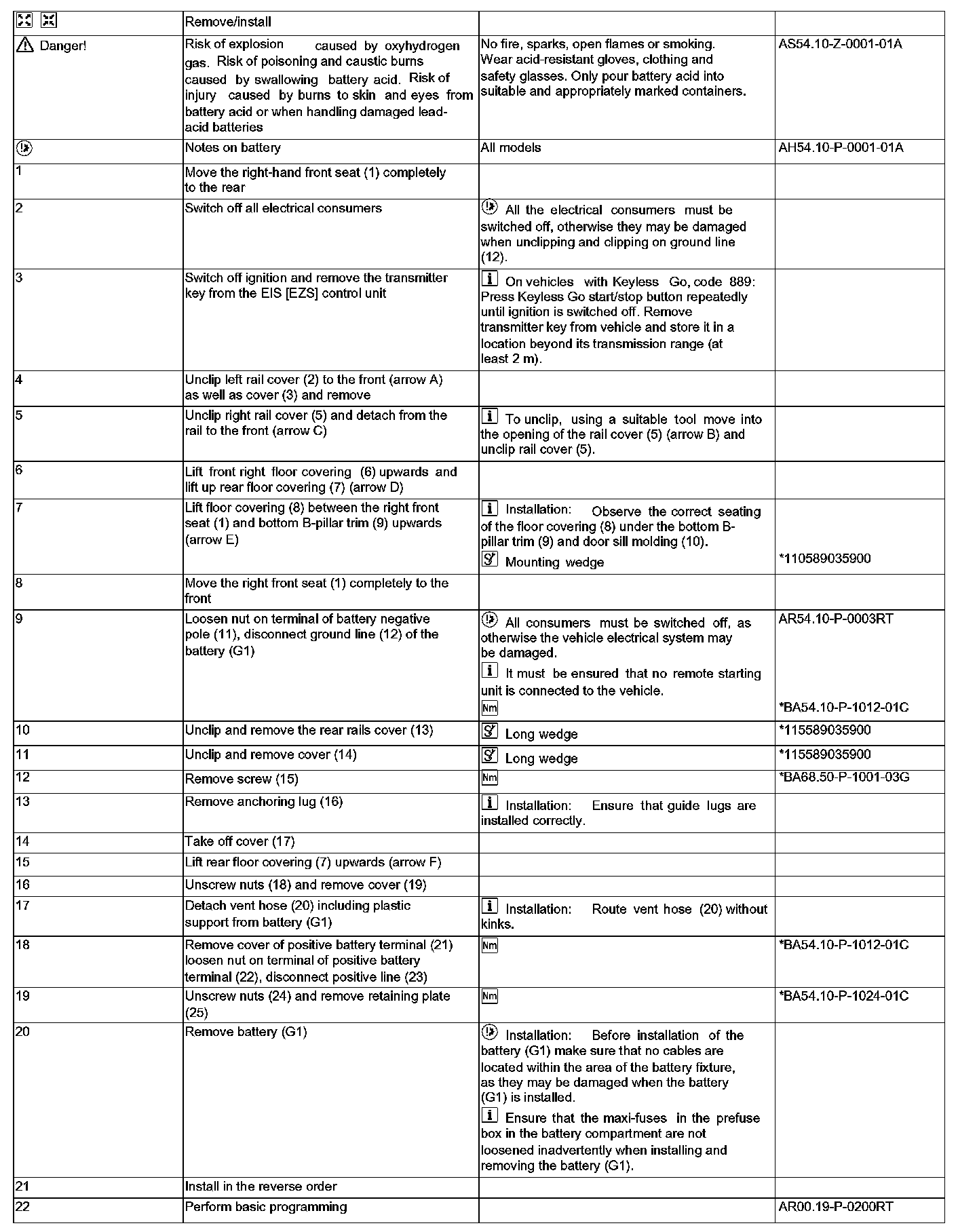

Steps 1 - 22:
Battery:

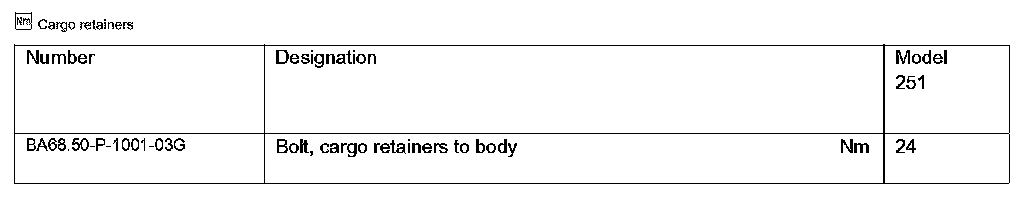

Cargo Retainers:

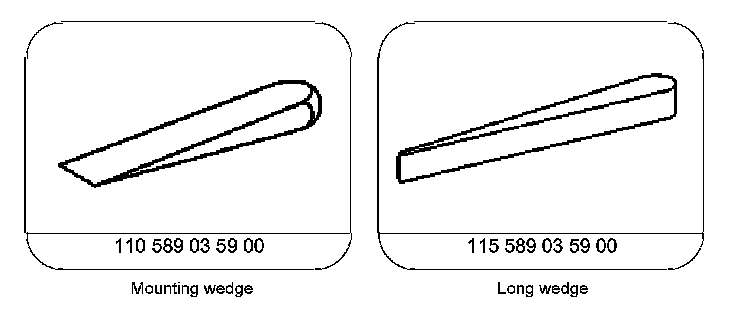

Special Tools:
